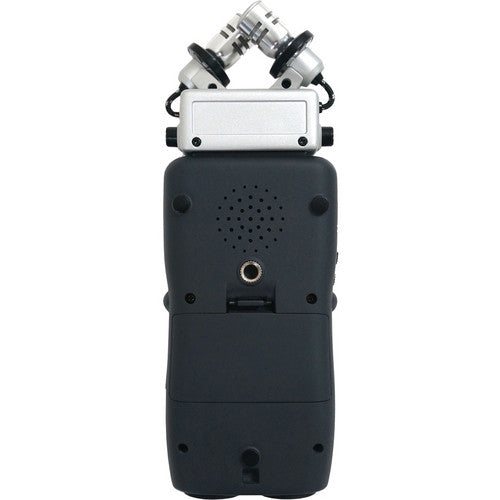

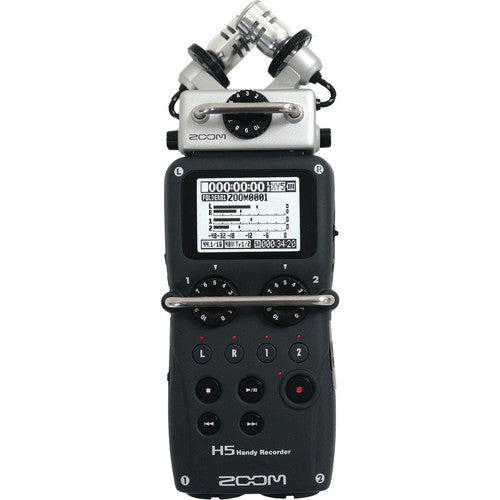

ZOOM H5 RECORDER

ZOOM H5 RECORDER

deal for documentaries, podcasting, audio for video, and professional sound design, the Zoom H5 portable handheld recorder lets you quickly record up to four input signals regardless of your audio experience. With a swappable stereo microphone capsule, versatile 2-channel inputs, and up to 4-track recording, the H5 is both user-friendly and easily expandable.

More Information

  • A versatile 4-in/2-out mobile recording system
  • 2 XLR/TRS combination inputs with microphone preamps and phantom power (+12/+24/+48V) accommodate most analog connections
  • Modular input connection lets you attach onboard microphones and additional input jacks
  • Gain knobs for each input make setting levels fast and easy
  • Shockmounted XYH-5 XY stereo microphone module included
  • Captures audio at up to 24-bit/96kHz professional-grade resolution
  • Doubles as a handy USB recording interface with your Mac, Windows PC, or iPad (via Apple Camera Connection Kit)
  • Large LCD display makes navigation and setup extremely easy
  • Built-in processing includes highpass filtering, compression, limiting, and M-S stereo width decoding
  • Loop playback, variable playback speed (from 50% to 150%), and variable pitch per track make this an excellent practice tool
  • Chromatic tuner and metronome built in for added convenience
  • Records onto SD and SDHC storage media with up to 32GB capacity
  • Record for up to 15 hours on just 2 AA batteries
  • Includes operation manual, USB cable, foam windscreen, and carrying case
  • Optional shotgun mic, input expansion module, and hot shoe mount accessory also available

Technical Specification

  • Audio Interface: Yes (via USB)
  • A/D Resolution: 16-bit/44.1 kHz, 24-bit/96kHz
  • Simultaneous Rec Tracks: 4
  • Simultaneous Play Tracks: 4
  • Built-in Mic(s): XYH-5 X/Y mic
  • Analog Inputs: 2 x XLR-1/4" combo, 1 x 1/8"
  • Analog Outputs: 1 x 1/8"
  • Headphones: 1 x 1/8"
  • Built-in Speaker: Yes
  • Memory (removable): SD/SDHC Card Slot (up to 32GB)
  • Effects: Compression, Limiting, Low-cut filter, Metronome, Tuner, Playback Looping, Pitch Change, Variable Playback Speed
  • USB: Yes
  • Additional Features: Selectable phantom power
  • Power Supply: AA battery, AC, USB bus power
  • Battery Life: Over 15 hours

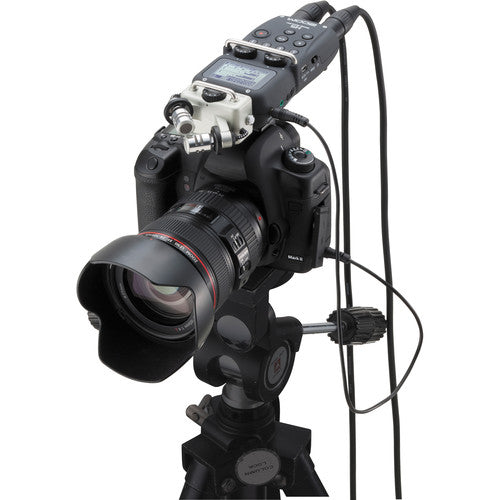

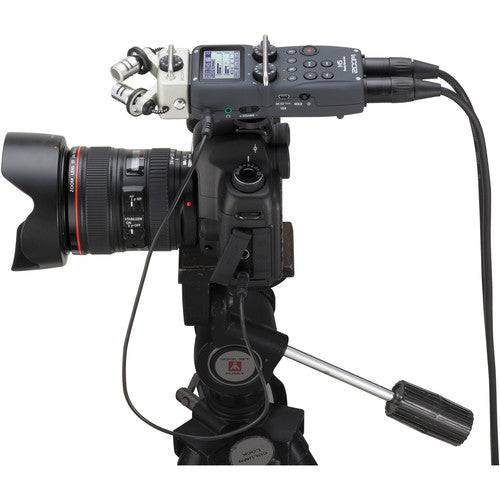

  • Stand Mountable: Yes (Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter)
  • Height: 1.66"
  • Width: 5.21"
  • Depth: 7.77"
  • Weight: 0.59 lbs.
