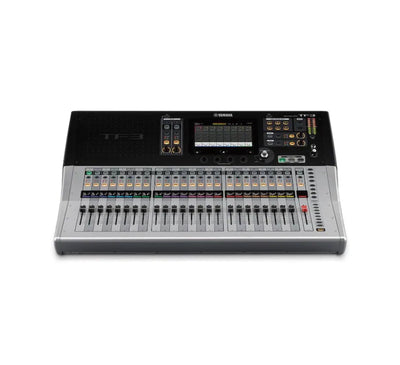

Yamaha TF3

Yamaha TF3

Yamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user's intuition even freer rein. TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.

More Information

Yamaha TF3 24-input Digital Console Features:

  • TouchFlow Operation maximizes workflow efficiency
  • 1-knob compression and EQ let you dial in the ideal sound
  • GainFinder supports precision gain setup
  • Dan Dugan automatic mixing system easily optimizes microphone gain and fights feedback
  • QuickPro presets provide instant access to pro sound setups
  • 2 scene memory banks let you set up and instantly recall your settings
  • 24 D-Pre mic preamps deliver phenomenal sound
  • Onboard effects bassed on SPX processor
  • TF StageMix iPad application provides wireless control
  • TF MonitorMix iOS application allows for wireless personal monitoring
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 1 expansion slot for NY64-D audio interface card
  • Expandable to 48 mixing channels

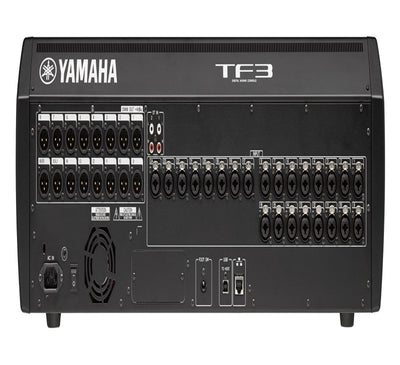

Technical Specification

Tech Specs

  • Type:Digital
  • Channels:24 - expandable to 48 mixing channels (40 mono + 2 stereo + 2 returns)
  • Inputs - Mic Preamps:24 x XLR-1/4" combo
  • Phantom Power:24 x Channels
  • Inputs - Other:2 x Dual RCA Stereo
  • Outputs - Main:16 x XLR
  • Aux Sends:8 x mono, 6 x stereo
  • Busses/Groups:20 x Aux, 1 x Stereo, 1 x Sub
  • Data I/O:1 x RJ-45 (LAN)
  • Headphones:1 x 1/4"
  • USB:2 x Type A, 1 x Type B
  • Computer Connectivity:USB (34 x 34)
  • Remote:1 x 1/4" (Footswitch)
  • I/O Expansion Slots:NY64-D audio interface card (sold separately)
  • Faders:25 x 100mm Throw
  • EQ Bands:4-band
  • Effects:8 Effects + 10 GEQ
  • Height:8.9"
  • Depth:23.6"
  • Width:28.2"
  • Weight:37.5 lbs.
