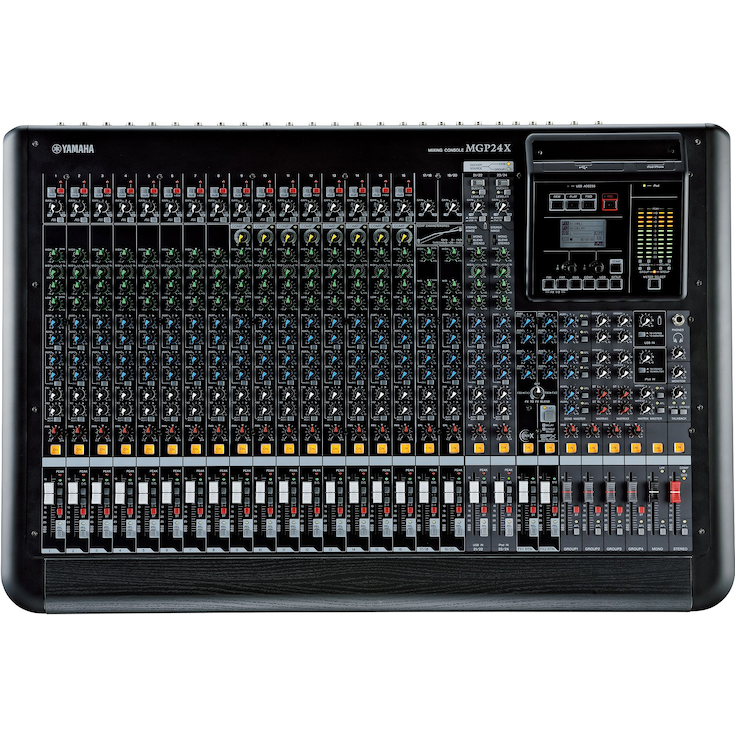

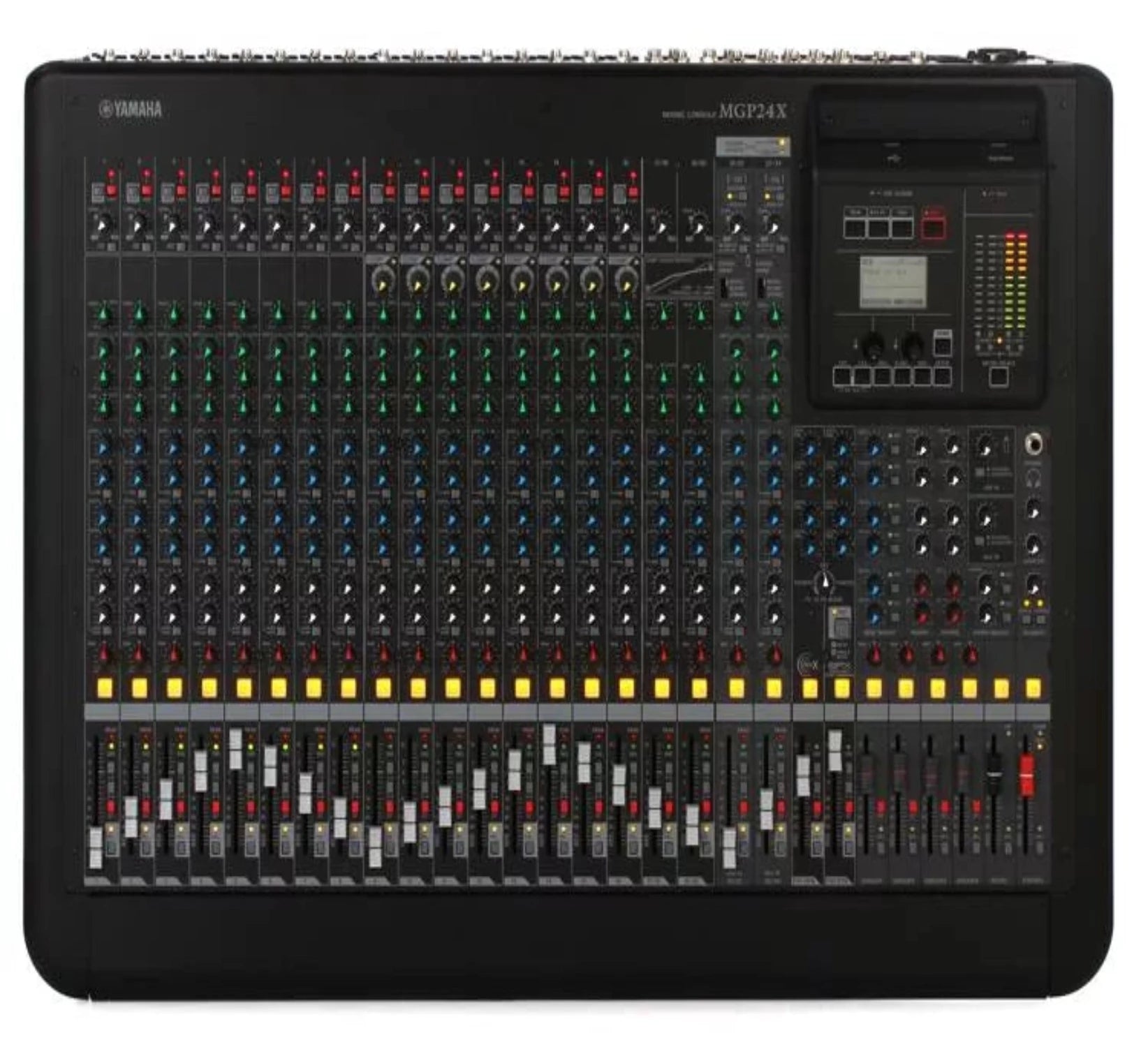

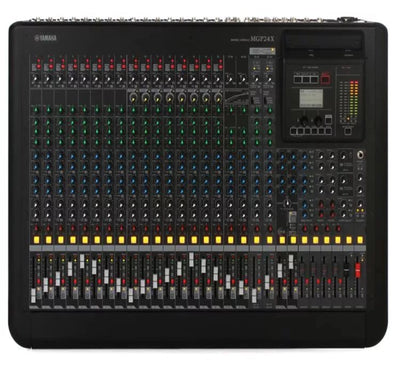

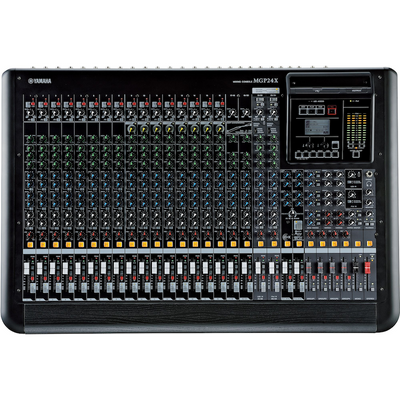

YAMAHA MGP SERIES MG24X

YAMAHA MGP SERIES MG24X

Road Tough. Studio Ready.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

More Information

Yamaha MGP24X Features:

  • D-PRE discrete Class A microphone preamps with inverted Darlington circuit design
  • X-pressive EQ gives you the warmth and musicality of classic vintage EQs
  • Intelligent 1-knob compressors add optimally set compression to a wide variety of input sources
  • Simple, analog-style control of sophisticated DSP functions
  • Traditional analog feel with the functionality that only digital technology can offer
  • Stereo Hybrid channel is a new way of approaching sound reinforcement in the digital age
  • Priority Ducker lets a microphone to take priority over another sound source automatically
  • Leveler "auto levels" tracks from a sound source that varies in volume
  • Stereo Image seamlessly narrows the spectrum, so widespread audiences hear an accurate mix
  • REV-X reverb gives you 3 incredible-sounding, high-resolution reverbs
  • Yamaha's acclaimed SPX digital multi-effects processor with 16 advanced digital effects
  • New 31-band graphic equalizer processing on the stereo bus
  • USB port to connect your iPod or iPhone for easy playback with a single connection
  • Metal chassis for rugged professional durability
  • Internal universal power supply lets you plug in with confidence in any region with 100V to 240V

The Yamaha MGP24X has analog warmth and sophisticated DSP functions!

Technical Specification

Tech Specs

  • Type:Analog
  • Channels:24
  • Computer Connectivity:1 x USB (Device, iPod, iPhone)
  • Faders:28
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:16
  • Inputs - Line:24 x TRS (16 x Mono, 4 x Stereo)
  • Inputs - Other:4 x Stereo (RCA)

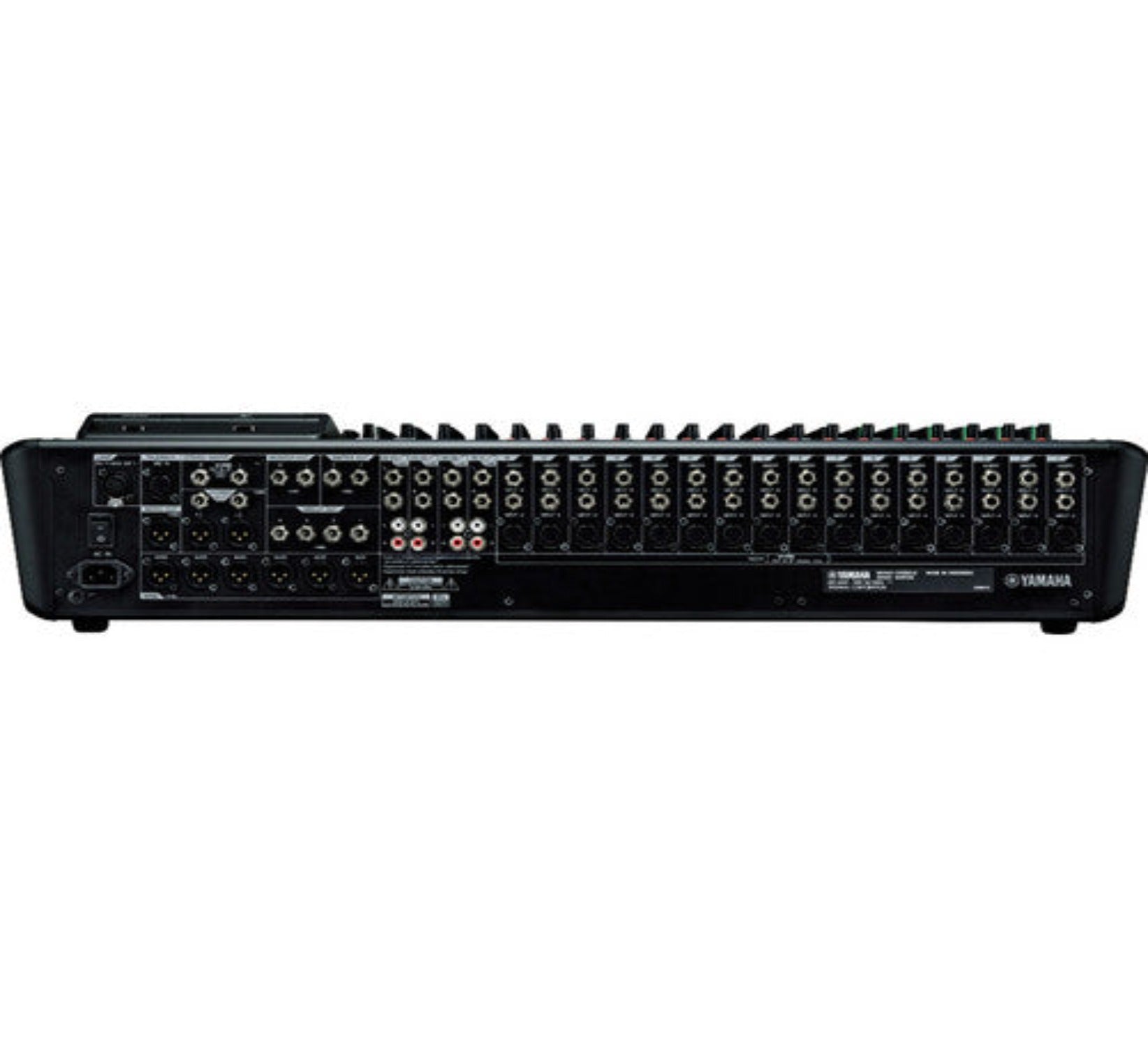

  • Outputs - Main:2 x XLR, 2 x TRS; 1 x XLR (Mono)
  • Outputs - Other:4 x TRS (Monitor, Matrix), 4 x TRS (Bus)
  • Aux Sends:6 x Sends
  • Send/Return I/O:6 x TRS, 4 x Stereo
  • Busses/Groups:4 x Bus
  • Channel Inserts:Yes
  • Headphones:1 x 1/4"
  • Talkback:Yes
  • EQ Bands:3-band, Sweepable Mid
  • Effects:Yes
  • Height:6.7"
  • Width:32.2"
  • Depth:22.2"
  • Weight:34.2 lbs.
