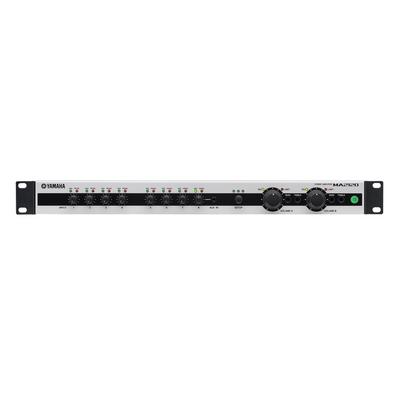

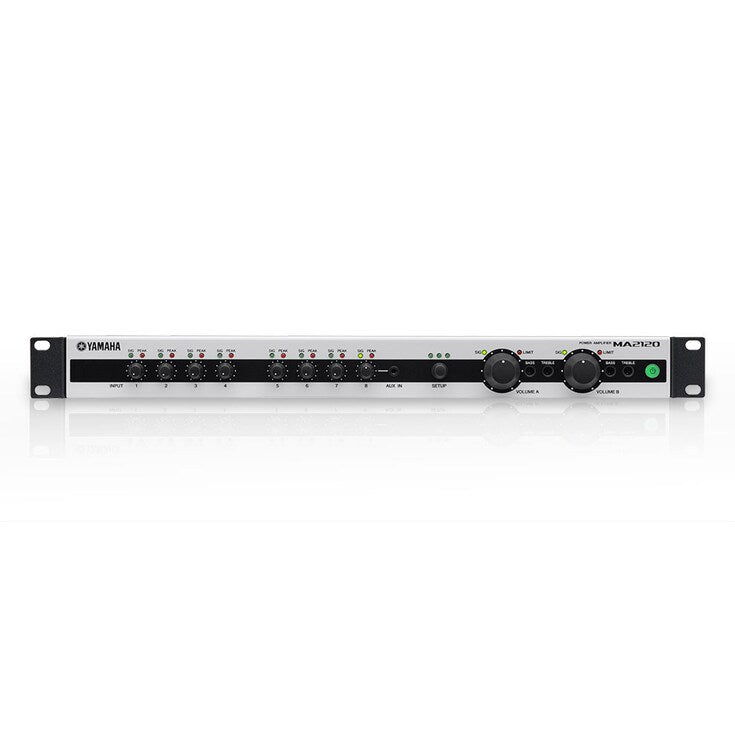

YAMAHA MA 2120
YAMAHA MA 2120

YAMAHA MA 2120

Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 120W x2 @4Ω, 100W x2ch @3Ω/8Ω,　Hi-Z: 120W x2ch or 200W x1ch, 70V/100V) equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions for high quality music playback and microphone use.

Enquire Now

Product details

More Information
  • Easy setup, and a user-friendly interface for effortless operation
  • Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
  • Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings
  • DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
  • Bass and treble stereo source EQ with an enhancer function
  • Output EQ for optimizing the sound of each Output channel
  • Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
  • Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
  • Service areas or zoning areas can be expanded by adding a PA2120
  • Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
  • Intelligent protection function ensures safe, reliable operation
  • Certified by ENERGY STAR
  • Certified as Yamaha Eco Products
  • Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
