The Yamaha DM3S is a 22-channel digital mixer with capabilities that far exceed the confines of its ultra-compact size. Although the DM3S is jam-packed with cutting-edge features, it's a breeze to navigate thanks to its best-in-class, 9-inch touchscreen and single all-purpose touch-and-turn knob. You get crystal-clear 96kHz audio, which is bolstered by 16 excellent-sounding mic preamps and eight analog outputs. Yamaha has long been renowned for their digital effects, going way back to their '80s-era REV and SPX processors, and the DM3S reflects that storied heritage. You'll also benefit from multiple recording and streaming options, including an 18 x 18 USB interface and 2 x 2 recording directly to a USB drive. A DAW remote mode with transport control and custom control via OSC, USB-MIDI, and ProVisionaire round out the DM3S's extensive feature set. Want a subcompact digital mixer with zero sacrifices or compromises? If so, the solution is simple: the Yamaha DM3S.

More Information

  • Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns

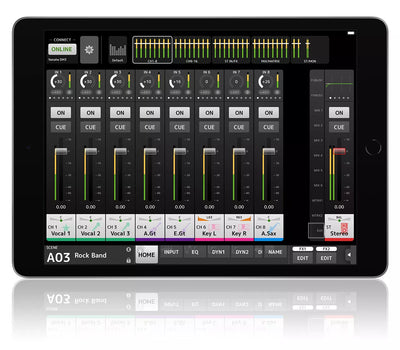

  • 9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
  • Capable of sampling rates as high as 96kHz
  • 6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
  • 16 outstanding mic preamps and 8 convenient analog outputs
  • Excellent built-in DSP effects
  • 18 x 18 USB audio interface for playback and recording
  • 2 x 2 recording directly to a USB drive
  • DAW remote mode with transport control
  • Custom control via OSC, USB-MIDI, and Yamaha's powerful ProVisionaire software applications

Technical Specification

  • Type:Digital Mixer
  • Channels:22

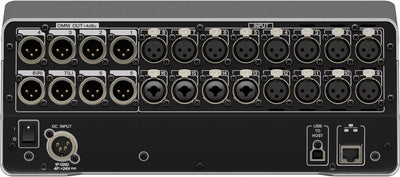

  • Inputs - Mic Preamps:12 x XLR, 4 x XLR-1/4" combo
  • Phantom Power:16 Channels
  • Outputs - Main:8 x XLR
  • Busses/Groups:Internal (1 x stereo, 6 x mix, 2 x FX, 2 x matrix)
  • Data I/O:1 x RJ-45 (LAN)
  • Headphones:1 x 1/4"
  • USB:1 x Type A, 1 x Type B
  • Computer Connectivity:USB (18 x 18)
  • Faders:9 x 100mm Motorized Faders
  • A/D Resolution:Up to 96kHz
  • DAW Control:Yes
  • Screen:9" touchscreen
  • Storage:USB slot
  • Power Source:24V DC, 2.5 Power Supply (included)
  • Height:5.5"
  • Depth:17.9"
  • Width:12.6"
  • Weight:14.33 lbs.
