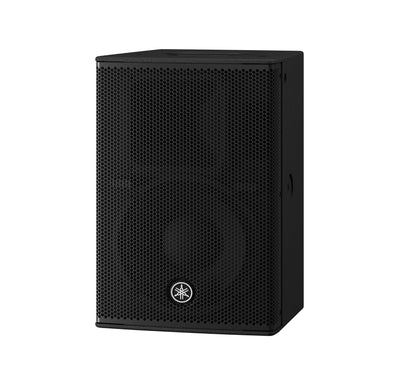

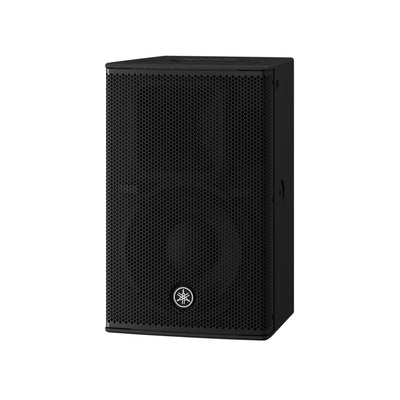

YAMAHA DHR10 Loudspeaker

YAMAHA DHR10 Loudspeaker

The DHR10 is a 2-way bi-amp powered loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found on Yamaha’s high-end DZR Series, the DHR10 offers best-in-class sound quality and durability.

More Information

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration.
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface.
  • Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response.
  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments.
  • Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use.
  • A pole socket for use on a stand.
  • Rigging points for use with eye bolts. Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Technical Specification

Tech Specs

  • Powered:Yes
  • Power Configuration:Bi-amped
  • LF Driver Size:10″ woofer
  • HF Driver Size:1″ Compression Driver
  • Total Power:700W Class D
  • Inputs:2 x XLR-1/4″ combo
  • Outputs:1 x XLR
  • Frequency Response:52Hz-20kHz
  • Maximum Peak SPL:128 dB SPL @ 1m
  • Horizontal Coverage Angle:90°
  • Vertical Coverage Angle:60°
  • Signal Processing:48-bit DSP
  • Enclosure Material:Plywood with Black Polyurea coating
  • Mounting Options:Pole
  • Power Source:Standard IEC AC cable
  • Height:19.5″
  • Width:12″
  • Depth:11.75″
  • Weight:33 lbs.
