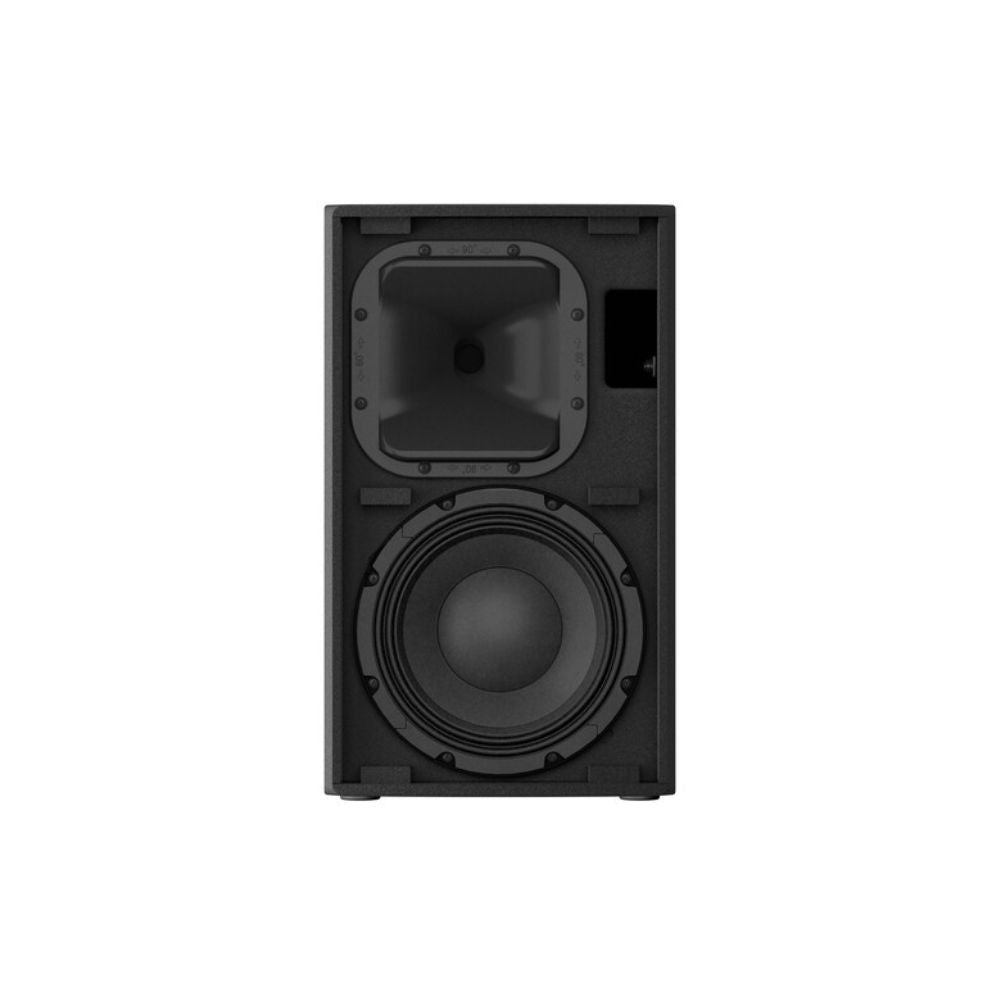

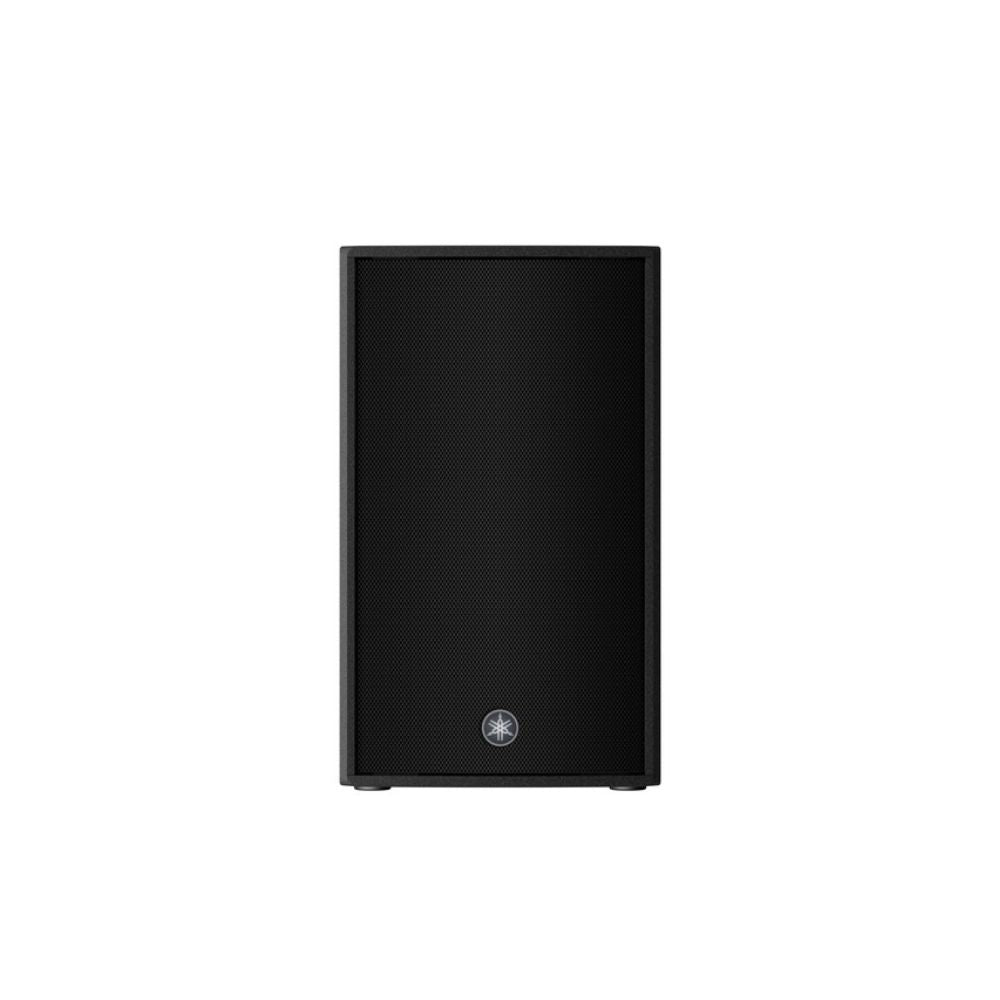

YAMAHA CZR10
YAMAHA CZR10

YAMAHA CZR10

The CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

Enquire Now

Product details

More Information
  • 2-way loudspeaker with a 2” HF and a 10" LF
  • Features Yamaha's own Wide Dispersion CD Waveguide Horn
  • High power 700W(PGM) power handling and Bi-amp capable
  • Floor monitoring setting
  • Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
  • Dual-angle pole socket
  • Optional speaker cover (SPCVR-DZR10)
  • Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement
  • Durable Black or white finish
Technical Specifications
  • 2-way speaker with bass-reflex design
  • Frequency Range (-10 dB):Passive: 43 Hz – 20 kHzNormal: 46 Hz – 20 kHzFOH: 43 Hz – 20 kHz
  • Coverage Area: H90° x V60° Rotatable Constant Directivity Horn
  • Floor Monitor Angle: 50°
  • LF Driver: 10" cone with 3" voice coil and neodymium magnet
  • HF Driver: 2" voice coil, 1" throat compression driver with titanium diaphragm and neodymium magnet
  • Crossover Frequency: 2.5 kHz
  • Power Handling:Passive (EIA 426-A): 350 W Noise / 700 W Program / 1400 W PeakBi-amp LF (EIA 426-A): 350 W Noise / 700 W Program / 1400 W PeakHF (AES): 50 W Noise / 100 W Program / 200 W Peak
  • Nominal Impedance:Passive: 8 ΩBi-amp LF: 8 ΩBi-amp HF: 16 Ω
  • Sensitivity (1 W / 1 m):Passive: 95 dB SPLBi-amp LF: 95 dB SPLHF: 108 dB SPL
  • Peak SPL:Passive: 127 dB SPLBi-amp LF: 127 dB SPLHF: 131 dB SPL
  • I/O Connectors: 2 x SpeakON NL4MP (Parallel)
  • Handle: Aluminium die-cast, Top x1, Side x1
  • Pole Socket: Ø35 mm x2 (0° or -7°)
  • Rigging: M10 x 8, M8 x 2
  • Dimensions (W x H x D): 315 x 537 x 345 mm
  • Net Weight: 14.0 kg (30.9 lbs)
  • Optional Accessories: Bracket UB-DZR10H/V, Cover SPCVR-DZR10
  • Enclosure Material / Finish / Color: Plywood with durable polyurea coating, Black/White
