Product details

More Information

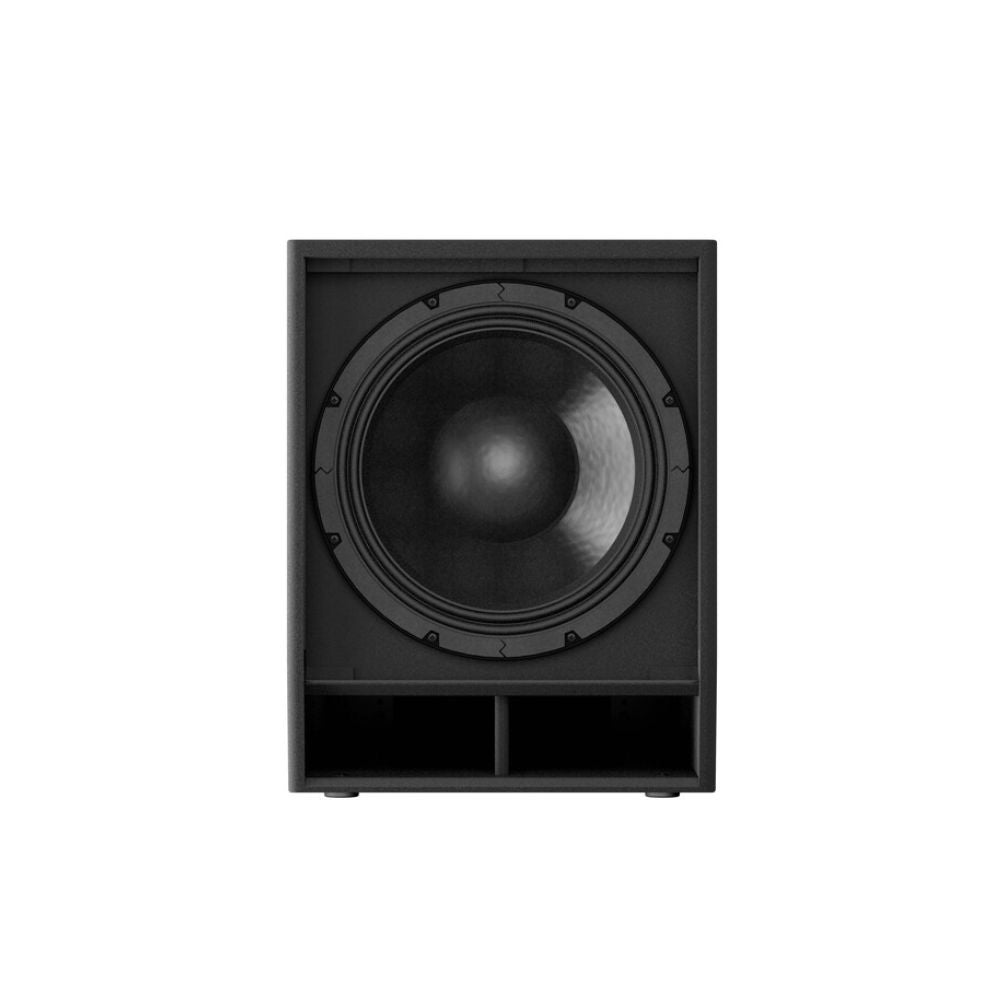

  • 15” subwoofer with 4” Voice Coil
  • High power 800W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • SpeakON NL4MP x 3 (Parallel x2, Output x1)
  • Dual-pole socket
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
  • Durable Black or white finish
Technical Specifications
  • Subwoofer with bass-reflex design
  • Frequency Range (-10 dB):Passive: 33 Hz – 3.5 kHzNormal: 35 Hz – 150 HzExtend: 33 Hz – 150 Hz
  • LF Driver: 15" cone with 4" voice coil and ferrite magnet
  • Power Handling:Noise: 400 W (EIA 426-A)Program: 800 W (EIA 426-A)Peak: 1600 W (EIA 426-A)
  • Nominal Impedance: 8 Ω
  • Sensitivity (1 W / 1 m): 98 dB
  • Peak SPL: 130 dB
  • I/O Connectors: SpeakON NL4MP x3 (Parallel x2, Output x1)
  • Handle: Aluminium die-cast, Side x2
  • Pole Socket: Φ35 mm (depth 80 mm), M20 threaded (depth 25 mm)
  • Dimensions (W x H x D): 450 x 587 x 600 mm
  • Net Weight: 35.6 kg (78.5 lbs)
  • Optional Accessories: Cover SPCVR-DXS15X, Caster SPW-1
  • Enclosure Material / Finish / Color: Plywood with durable polyurea coating, Black/White
