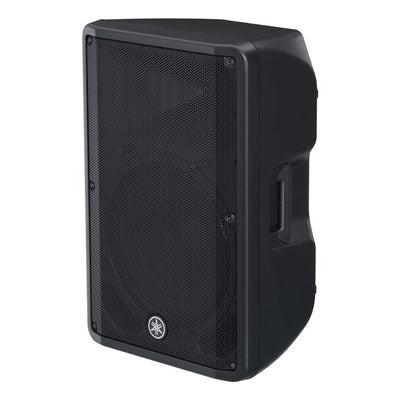

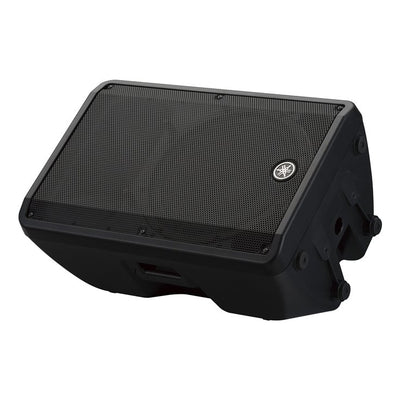

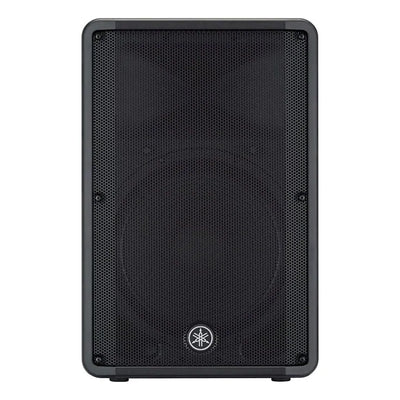

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.

More Information

  • Passive loudspeaker with lightweight plastic cabinet
  • Impressive 500W RMS power handling
  • 1/4" and speakON inputs for flexible connectivity
  • HF-protection circuit prevents tweeter damage due to excessive signal levels
  • Highly-sensitive LF driver puts out full bass even at lower volumes

Technical Specification

  • Powered:No
  • LF Driver Size:1 x 15"
  • HF Driver Size:1.4"
  • Power Rating:500W
  • Total Power:1000W
  • Inputs:1 x 1/4", 1 x speakON
  • Impedance:8 ohms
  • Frequency Range:46Hz-20kHz (-10 dB)
  • Crossover Frequency:2kHz
  • Maximum Peak SPL:126dB
  • Horizontal Coverage Angle:90 Degrees
  • Vertical Coverage Angle:60 Degrees
  • Enclosure Material:Plastic
  • Mounting Options:Pole Mount with 1.37" socket, M8 Fly Points: 2 x Bottom, 1 x Rear
  • Height:27.6"
  • Width:17.9"
  • Depth:14.9"
  • Weight:39 lbs.
