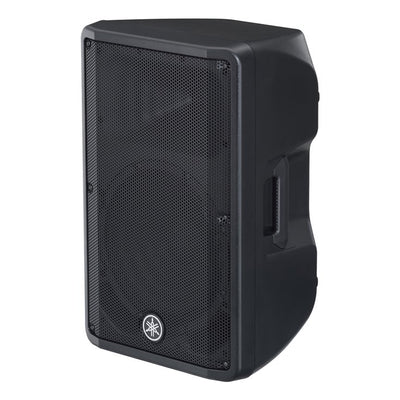

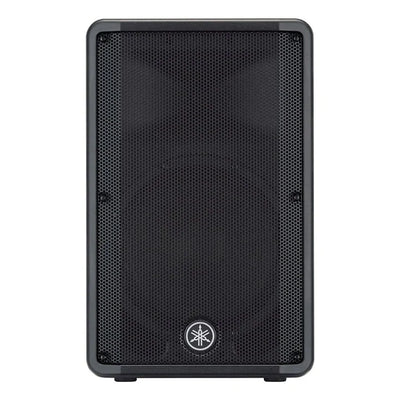

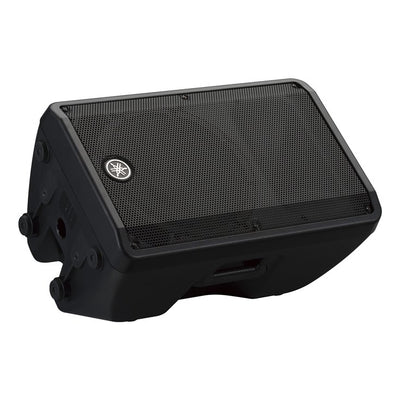

YAMAHA CBR 12

The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

More Information

Passive loudspeaker with lightweight plastic cabinet
Impressive 350W RMS power handling
1/4" and speakON inputs for flexible connectivity
HF-protection circuit prevents tweeter damage due to excessive signal levels
Highly-sensitive LF driver puts out full bass even at lower volumes

Technical Specification

Powered:No
LF Driver Size:1 x 12"
HF Driver Size:1.4"
Power Rating:350W
Total Power:700W
Inputs:1 x 1/4", 1 x speakON
Impedance:8 ohms
Frequency Range:45Hz-20khz (-10 dB)
Crossover Frequency:2.1kHz
Horizontal Coverage Angle:90 Degrees
Maximum Peak SPL:125dB
Vertical Coverage Angle:60 Degrees
Enclosure Material:Plastic
Mounting Options:Pole Mount with 1.37" socket, M8 Fly Points: 2 x Bottom, 1 x Rear
Height:23.7"
Width:14.8"
Depth:13.7"
Weight:30.6 lbs.
