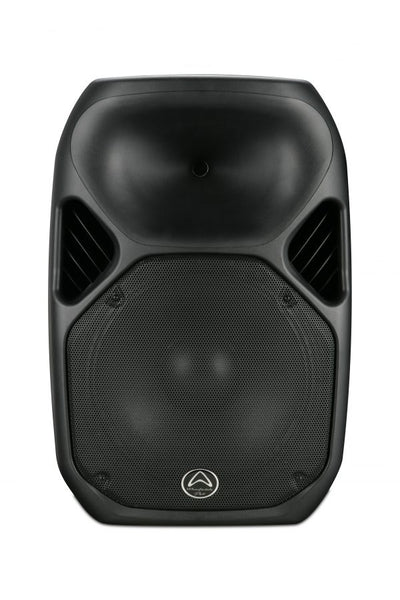

Product details

More Information
  • 700w RMS / 1400w Program / 2800w Peak
  • 133.5dB Max SPL
  • 40Hz - 20kHz frequency response
  • Titanium HF Driver honed acoustically for high-frequency detail and power
  • 15″ LF Driver rejects moisture for resistance in all environments
  • Proprietary 100° x 80° Hybrid Symmetry Horn design
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • Titan Tourbags available
  • Category leading 4″ LF voice coil
Technical Specifications
  • System Type: Passive
  • Configuration: 15″ 2-way
  • Frequency Response (+/-3 dB): 45 Hz-20 KHz
  • Frequency Range (-10 dB): 40 Hz-20 KHz
  • Sensitivity (2.83 v / 1 m): 99 dB
  • Calculated Maximum SPL @1 m: 133.5 dB
  • System Rated Impedance: 8 Ω
  • Low Frequency Transducer Size: 381 mm / 15″
  • Voice Coil Size: 100 mm / 4.0″
  • Rated Impedance: 8 Ω
  • LF Power (re:AES2-2012): 700 w
  • High Frequency Transducer:
  • HF Driver Type: Compression Driver
  • Voice Coil Size: 50 mm / 2.0"
  • Exit Size: 25 mm / 1″
  • Diaphragm Material: Titanium
  • Rated Impedance: 8 Ω
  • HF Power (re:AES2-2012): 50 w
  • Nominal Coverage (H x V): Hybrid Symmetry Horn 100°x80°
  • System Power AES (RMS): 700 w
  • System Programme Power: 1400 w
  • System Peak Power: 2800 w
  • Crossover frequency: 2.1 KHz

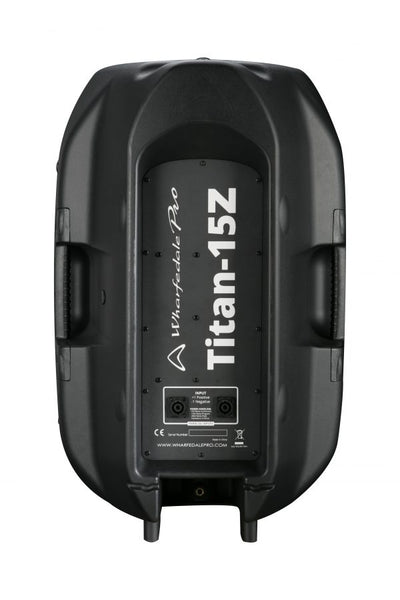

  • Input Connector: 2 x NL4 (speakON compatible)
  • Pole Mount: 35 mm with lock screw
  • Handles: 2 on sides
  • Mounting points: M8 * 10
  • Enclosure Material: Trapezoidal / Polypropylene
  • Finish: Black / white
  • Grille Material & Finish: 1.2 steel
  • Height: 728.5 mm / 28.7"
  • Width Front: 480.6 mm / 18.9"
  • Width Rear: 480.6 mm / 18.9"
  • Depth: 395.6 mm / 15.6"
