Portable, lightweight and durable the Titan X12 is one of our most versatile loudspeakers. Rated at 1000W peak and with 128dB Max SPL, it’s an ideal solution for small to medium sized venues.

We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN X12 raises the bar for portable PA and is built to last.

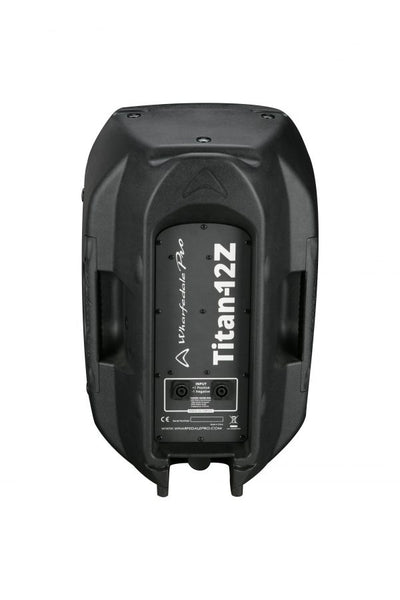

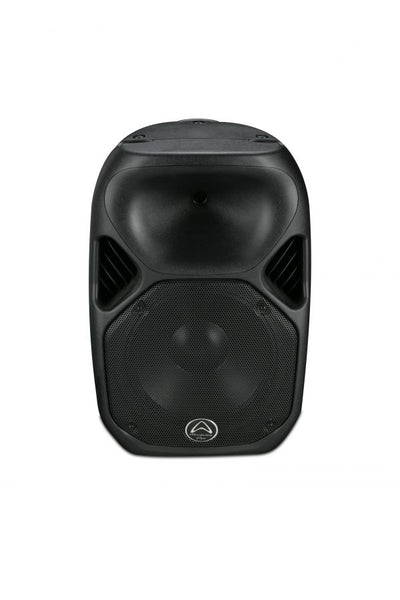

TITAN 12Z  – Our highest power handling passive 12″ TITAN – ever!

Titans are used around the world in almost every type of pro audio application immaginable.  The design and versatility has made Titan a favourite for installers and performers but…. we all like MORE POWER!

Do not be deceived by familiar looks.  The new Titan 12Z may appear cosmetically to be the same as our Titan X12  – but, it is what is inside that matters.

Titan 12Z features extreme power handling transducers with high electrical sensitivity.  This results in unimaginable power handling  specifications and remarkable SPL.  Custom built Wharfedale Pro drivers are what makes this possible.

The Titan 12Z features a category leading 3” LF voice coil and our acclaimed IRIS X compression driver with its 1.75” voice coil.

More Information

  • 500w RMS / 1000w Program / 2000w Peak
  • 132dB Max SPL
  • 50Hz – 20kHz frequency response
  • Titanium HF Driver honed acoustically for high-frequency detail and power
  • 12″ LF Driver rejects moisture for resistance in all environments
  • Proprietary 100° x 80° Hybrid Symmetry Horn design
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • Titan Tourbags available
  • Category leading 3″ LF voice coil

Technical Specification


Model Name TITAN 12Z
System Type Passive
Configuration Two-way 12″
Frequency Response (+/- 3dB) 55Hz-20kHz
Frequency Range (-10dB) 50Hz-20kHz
Sensitivity (2.83v/1m) 99dB
System Rated Impedance
Calculated Maximum SPL @1m 132dB
Low Frequency Transducer
Size 305mm / 12″
Voice coil size 75mm / 3.0″
Rated Impedance
LF Power (re:AES-2012) 500w
HF Transducer
HF Driver Type IRIS X Compression driver
Voice coil size 44mm / 1.75″
Exit size 25mm / 1″
Diaphragm Material Titanium
Rated Impedance
HF Power (re:AES2-2012) 40w
Nominal Coverage (H x V) Hybrid Symmetry Horn 100° x 80°
Nominal Impedance
System Continuous Power 500w
System Programme Power 1000w
System Peak Power 2000w
Crossover Frequency 2.1kHz
Hardware 10 x M8 threaded inserts, 35mm pole socket
2 x speakON compatible
2 carry handles (one on each side)
Enclosure Material and finish Injection moulded polypropylene
Colour Options Black / white
Grille Material & Finish Steel
Dimensions – Unpacked
Height 582.7mm / 22.9″
Width front 384.6mm / 15.1″
Width rear 384.6mm / 15.1″
Depth 318.6mm / 12.5″
Dimensions – Packed
Height 663mm / 26.1″
Width front 435mm / 17.1″
Width rear 435mm / 17.1″
Depth 408mm / 16.1″
Net weight 15.7kg / 34.5lbs
Gross weight 18.8kg / 41.2lbs
