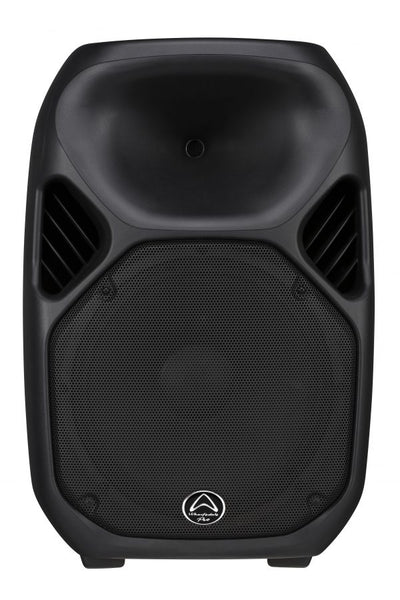

Portable, lightweight and durable the Titan X15 is one of our most versatile loudspeakers. Rated at 1600W peak and with 129dB Max SPL, it’s an ideal solution for small to medium sized venues..

We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN X15 raises the bar for portable PA and is built to last.

More Information

  • 400W RMS / 800W Program / 1600W Peak
  • 129dB Max SPL
  • 50Hz – 20kHz frequency response
  • Titanium HF Driver has been honed acoustically for high-frequency detail and power
  • 15″ LF Driver rejects moisture for resistance in all environments
  • Proprietary 100° x 80° Hybrid Symmetry Horn design
  • 3″ LF voice coil
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications

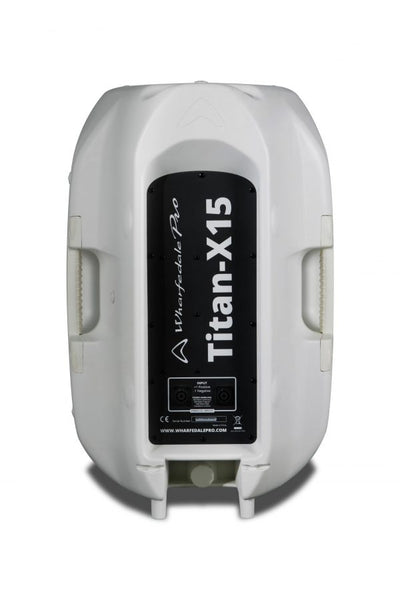

  • Available in black or white
  • Titan Tourbags available

Technical Specification


System Type Passive
Configuration 15″ 2-way
Frequency Response (+/-3dB) 50Hz-20kHz
Frequency Range (- 10 dB) 40Hz-20kHz
Sensitivity (2.83v/1m) 97dB
Calculated Maximum SPL @1m 129dB
System Rated Impedance
Low Frequency Transducer
Size 381mm / 15″
Voice-Coil Size 75mm / 3.0″
Rated Impedance 8Ω
LF Power (re:AES2-2012) 400W
High Frequency Transducer
HF Driver Type Compression Driver
Voice-Coil Size 44mm / 1.75″
Exit Size 25mm / 1″
Diaphragm Material Titanium
Rated Impedance
HF Power (re:AES2-2012) 40W
Nominal Coverage (H x V) Hybrid Symmetry Horn 100°x80°
System Continuous Power 400w
System Programme Power 800W
System Peak Power 1600w
Crossover frequency 2.7kHz
Input Connector 2 x NL4 (speakON compatible)
Hardware 35mm Speaker Pole Insert with lock screw
2 handles on sides
M8 x 10 rigging points
Enclosure Material Trapezoidal / Polypropylene
Finish Black / white
Grille Material & Finish 1.2 steel
Dimensions – Unpacked
Height 728.5mm / 28.7″
Width Front 480.6mm / 18.9″
Width Rear 480.6mm / 18.9″
Depth 395.6mm / 15.6″
Dimensions – Packed
Height 830mm / 32.7″
Width Front 514mm / 20.2″
Width Rear 514mm / 20.2″
Depth 489mm / 19.3″
Net Weight 22.0kg / 48.4lbs
Gross Weight 26.8kg / 59.0lbs
