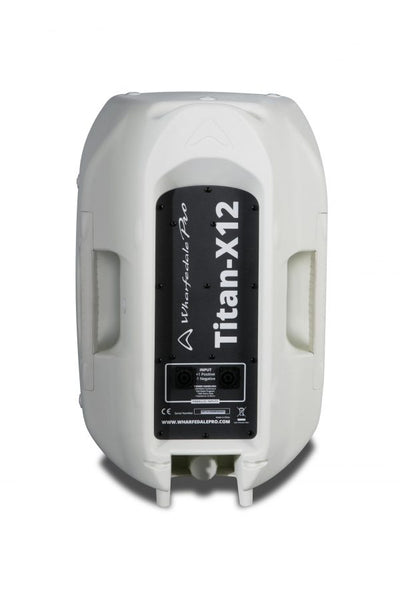

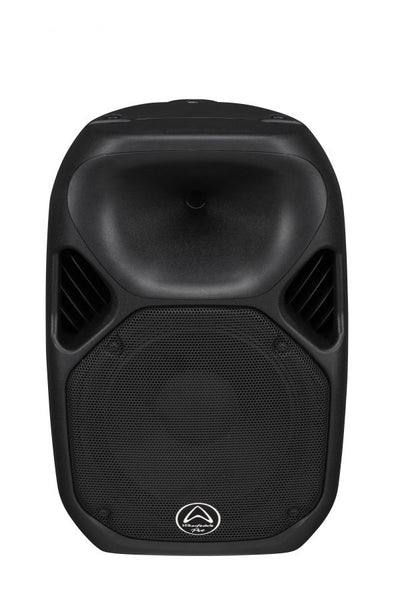

WHARFEDALE PRO TITAN X 12
WHARFEDALE PRO TITAN X 12
Portable, lightweight and durable the Titan X12 is one of our most versatile loudspeakers. Rated at 1000W peak and with 128dB Max SPL, it’s an ideal solution for small to medium sized venues.
We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN X12 raises the bar for portable PA and is built to last.
More Information
More Information
Technical Specification
Technical Specification
| System Type | Passive |
| Configuration | 12″ 2-way |
| Frequency Response (+/-3dB) | 55Hz-20kHz |
| Frequency Response (- 10 dB) | 50Hz-20kHz |
| Sensitivity (2.83v/1m) | 98dB |
| Calculated Maximum SPL @1m | 128dB |
| System Rated Impedance | 8Ω |
| Low Frequency Transducer | |
| Size | 305mm / 12″ |
| Voice-Coil Size | 64.26mm / 2.5″ |
| Rated Impedance | 8Ω |
| LF Power (re:AES2-2012) | 250w |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice-Coil Size | 44mm / 1.75″ |
| Exit Size | 25mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 40W |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100°x80° |
| Power | |
| System Continuous Power | 250W |
| System Programme Power | 500W |
| System Peak Power | 1000W |
| Crossover frequency | 2.6kHz |
| Input Connector | 2 x NL4 (speakON compatible) |
| Hardware | 35mm Pole Insert with lock screw 2 Handles on sides M8 x 10 rigging points |
| Enclosure | |
| Enclosure Material | Trapezoidal / Polypropylene |
| Finish | Black / white |
| Grille Material & Finish | 1.2mm steel |
| Dimensions – Unpacked | |
| Height | 582.7mm / 22.9″ |
| Width Front | 384.6mm / 15.1″ |
| Width Rear | 384.6mm / 15.1″ |
| Depth | 318.6mm / 12.5″ |
| Dimensions – Packed: | |
| Height | 663mm / 26.1″ |
| Width Front | 435mm / 17.1″ |
| Width Rear | 435mm / 17.1″ |
| Depth | 408mm / 16.1″ |
| Weight | |
| Net Weight | 12.0kg / 26.4lbs |
| Gross Weight | 15.1kg / 33.2lbs |
