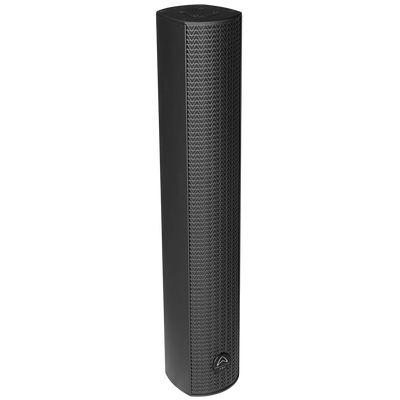

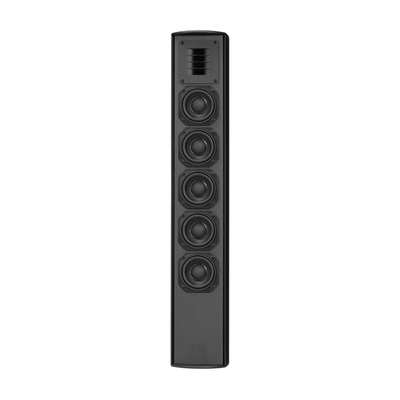

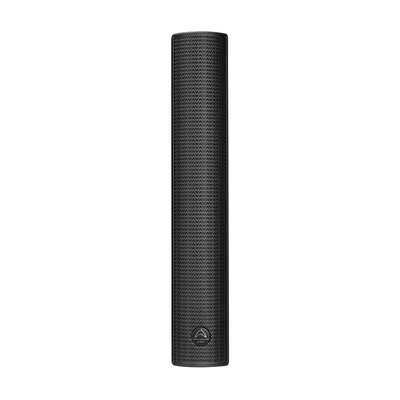

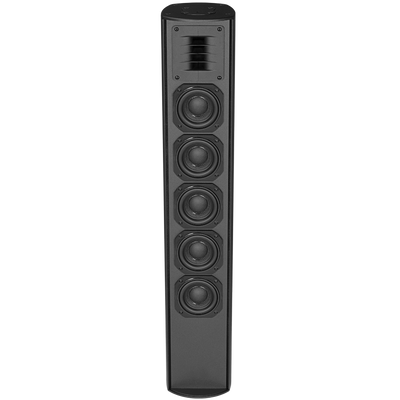

It features five 3″ full-range drivers supported by a high-frequency compression driver coupled to our refined mini EVO-Fold waveguide. This ensures coherent dispersion, delivering natural vocal intelligibility and even audience coverage from a single acoustic source.

With power handling of 180 W continuous (720 W peak) and output up to 123 dB max SPL @ 1 m, SIGMA-XV5 delivers high-performance output in a slim, installation-friendly form. A 70 V / 100 V Hi-Z version is also available for distributed systems.

Installation flexibility includes the supplied U-bracket or the optional WPB-SV mount, which offers 15° tilt and 180° rotation for precise aiming.

Available in black or white finishes and supported with FIR presets and EASE .gll files, SIGMA-XV5 delivers column speaker efficiency with next-generation HF precision and professional installation versatility.

Technical Specifications
  • Active or Passive: Passive
  • System Type: Column
  • Configuration: 2-way
  • System Continuous Power: 180 W
  • System Programme Power: 360 W
  • System Peak Power: 720 W
  • Max SPL @ 1m: 123 dB
  • Freq Response (+/-3 dB): 160 Hz - 18 kHz
  • Freq Range (-10 dB): 150 Hz - 20 kHz
  • Bluetooth: No
  • IP Certification: None
  • Driver Details
  • Driver Brand: Wharfedale Pro
  • LF Driver Size: 5 x 3"
  • LF Voice Coil Size: 1.3
  • LF Rated Impedance: 4 Ω
  • LF Power (RE:AES2-2012): 40 W
  • HF Driver Type: 1 x 1" PEI EVO-Fold Driver
  • HF Voice Coil Size: 1"
    HF Diaphragm Material: PEI
  • HF Exit Size: 1"
  • HF Power (RE:AES2-2012): 20 W
  • Preset Library: Yes

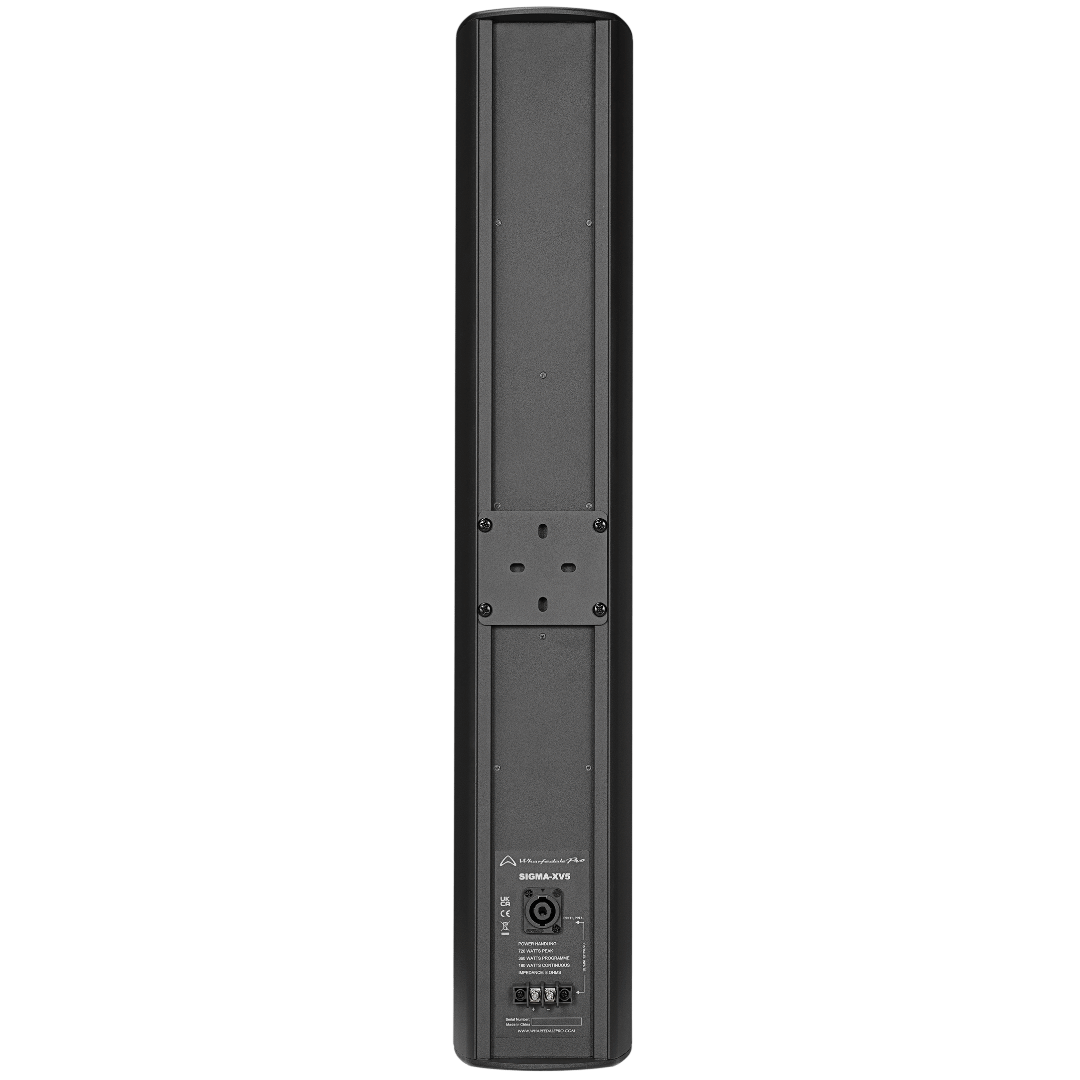

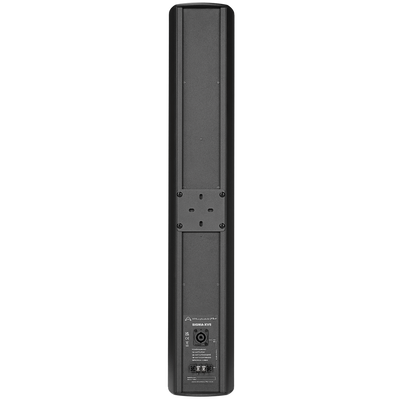

  • Input Connector: 1 x 4 Pole speaker connector. 1 x barrier strip
  • Waveguide Type: Mini EVO-Fold
  • Enclosure Material: Aluminum
  • Grille Material and Finish: Steel Black or White
  • Finish: Black or White Tough-Tone paint
  • Deployment: Wall Mount
  • Pole Mount: None
  • Brackets Included: Yes
  • Rigging: No
  • Nominal Coverage (H x V): 160° x 30°
  • Sensitivity 2.83 V / 1 M: 95 dB
  • System Rated Impedance: 8 Ω
  • Crossover Frequency: 2.5 kHz
  • Recommended HPF = BW 18 dB/OCT.: 150 Hz
  • Transformer (T): No
