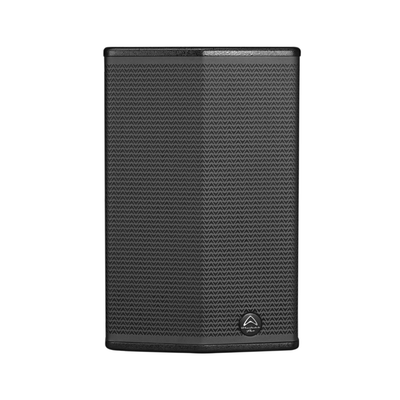

SIGMA-X10 is a 10″ full-range loudspeaker from SIGMA-X Series, designed for enhanced output, flexible coverage, and effortless integration into professional installation environments.

Enquire Now

Product details

More Information

Featuring a rotatable 90° x 60° waveguide, SIGMA-X10 allows precise dispersion control whether mounted horizontally or vertically, making it ideal for venues such as bars, clubs, houses of worship, and performance spaces. Its refined acoustic tuning delivers improved clarity and projection over wider areas, ensuring consistent coverage and intelligibility.

With both 4 pole speaker connectors and barrier strip inputs, SIGMA-X10 supports straightforward installation, while additional reinforced mounting points provide compatibility with Powerdrive Type 90 plates and optional WPB-1 or WPB-2 wall brackets for secure and professional deployment. Durable black or white Tough-Tone paint finishes ensure easy architectural integration.

Delivering 200 W continuous (800 W peak) power handling and achieving 126 dB max SPL @ 1 m, SIGMA-X10 provides a powerful upgrade in performance while maintaining a compact footprint. EASE .gll files, FIR presets, and system diagrams support accurate system design and configuration.

Technical Specifications
  • Active or Passive: Passive
  • System Type: Full-Range
  • Configuration: 2-way
  • System Continuous Power: 200 W
  • System Programme Power: 400 W
  • System Peak Power: 800 W
  • Max SPL @ 1m: 126 dB
  • Freq Response (+/- 3 dB): 65 Hz - 18 kHz
  • Freq Range (-10 dB): 60 Hz - 20 kHz
  • Bi-amp Mode Switch: No
  • Bluetooth: No
  • IP Certification: None
  • Driver Brand: Wharfedale Pro
  • LF Driver Size: 10"
  • LF Voice Coil Size: 1.5"
  • LF Rated Impedance: 8 Ω
  • LF Power (RE:AES2-2012): 200 W
  • HF Driver Type: Compression Driver
  • HF Voice Coil Size: 1.75"
  • HF Diaphragm Material: Titanium

    HF Exit Size: 1"
  • HF Power (RE:AES2-2012): 40 W
  • HF Rated Impedance: 8 Ω
  • Preset Library: Yes

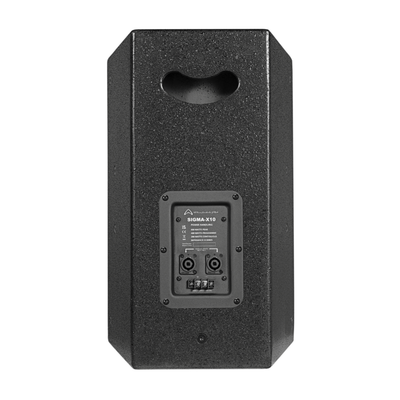

  • Input Connector: 2 x 4 Pole Speaker Connector, 1 x Barrier Strip
  • Waveguide Type: Constant Directivity / Rotatable
  • Enclosure Material: MDF
  • Grille Material and Finish: Steel Black or White
  • Finish: Black or White Tough-Tone paint
  • Handles: 1
  • Deployment: Flying, Pole, Wall Mount

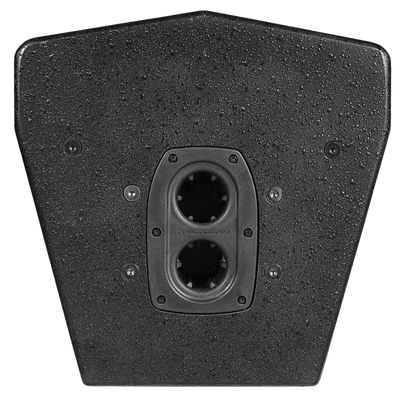

  • Pole Mount: Dual Angle (0° / 10°) 35 mm
  • Brackets Included: No
  • Rigging: Yes
  • M8: 17
  • Nominal Coverage (H x V): 90° x 60°
  • Sensitivity 2.83 V / 1 M: 97 dB
  • System Rated Impedance: 8 Ω
  • Crossover Frequency: 2.4 kHz
  • Recommended HPF - BW 18 dB/OCT.: 60 Hz
  • Transformer (T): No
