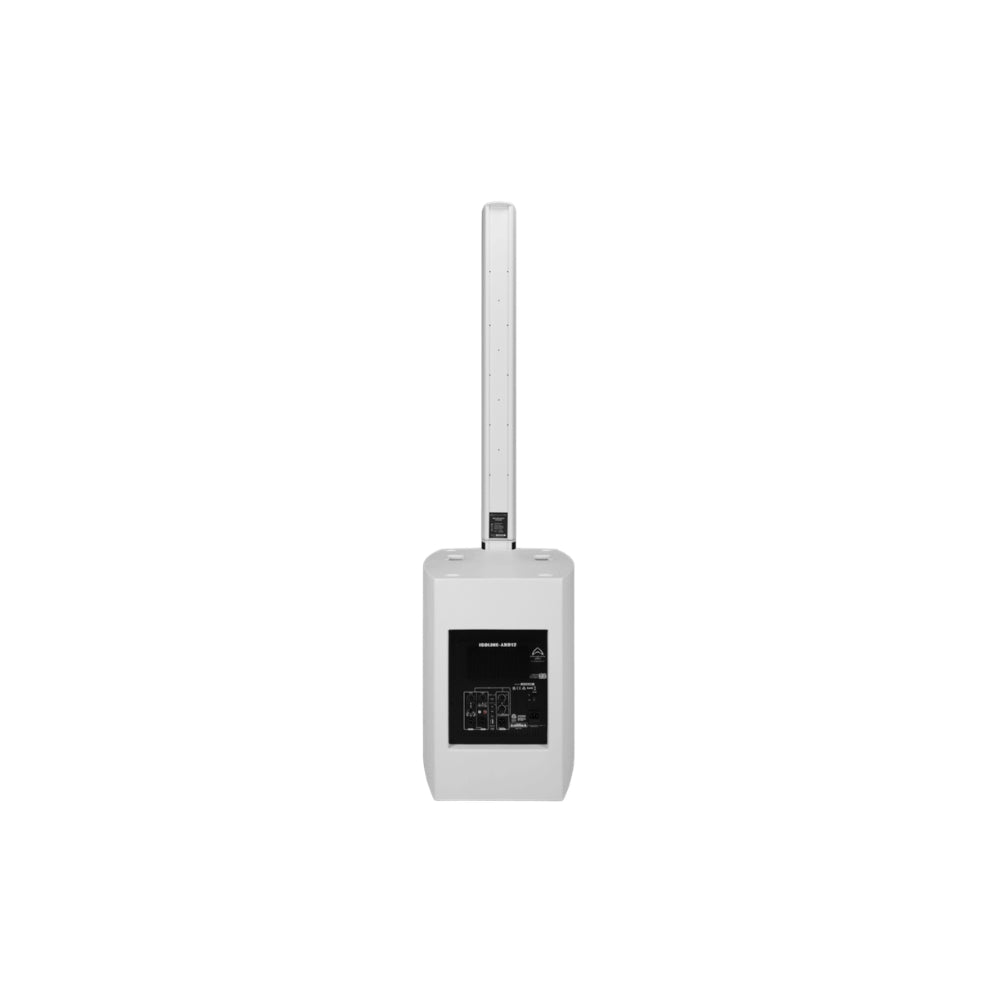

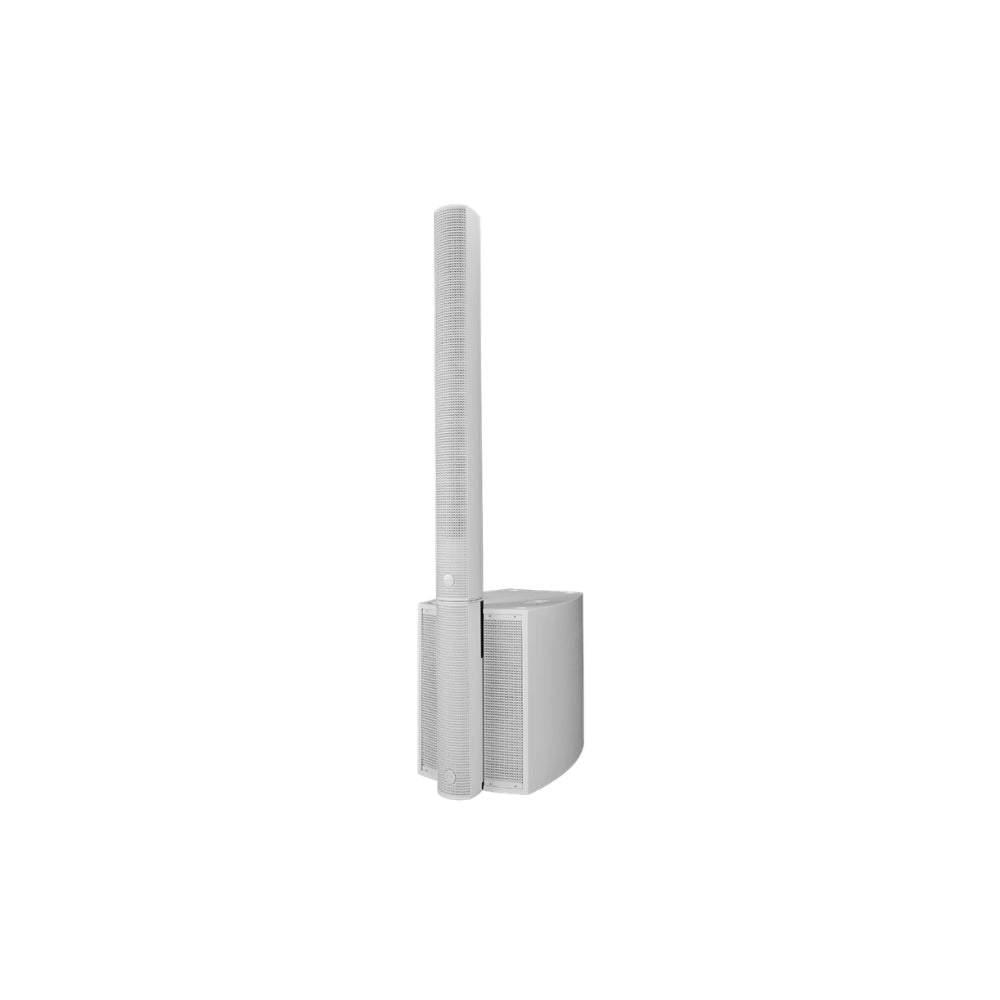

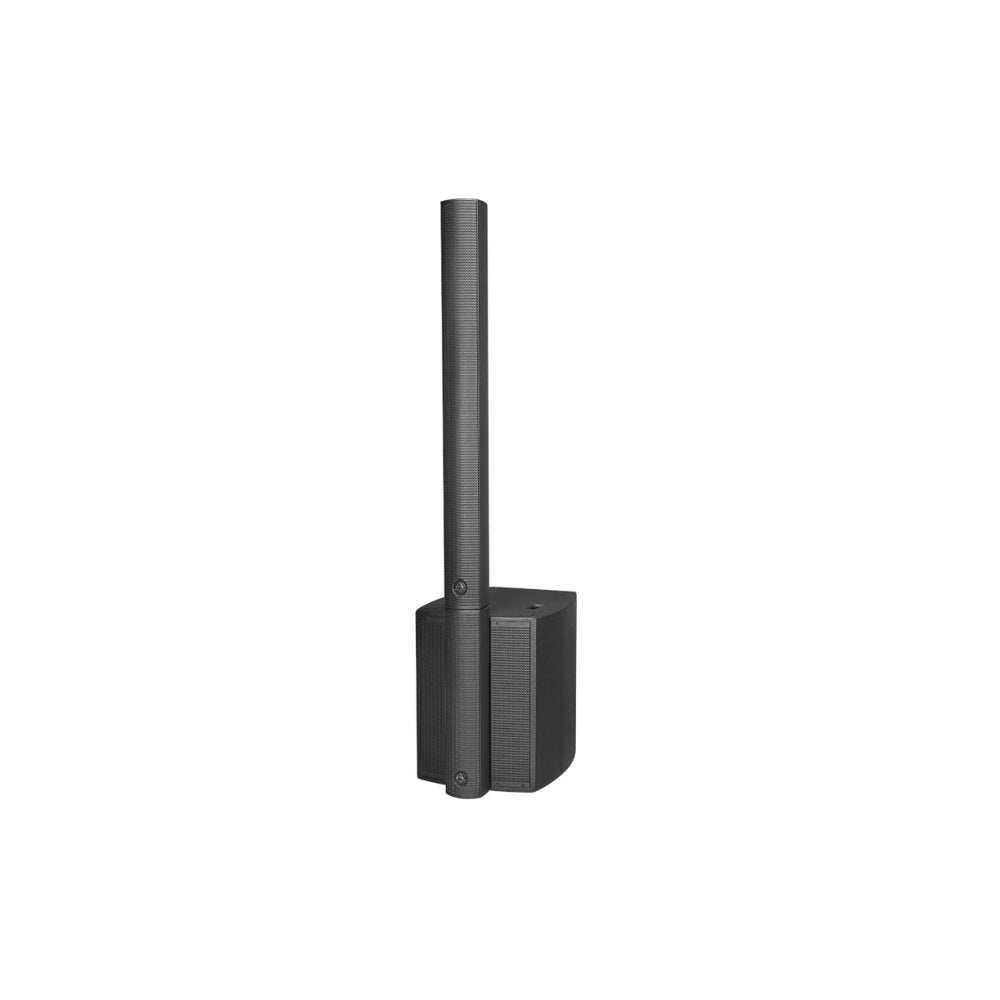

1200W Active Column PA System – Overview


  • Active column PA system from Wharfedale Pro

  • Designed for live sound, events, DJs, and installations

  • 2-way configuration with integrated 12” subwoofer

  • 1200W continuous / 2400W peak Class D amplification

  • High output with max SPL of 129 dB

  • Wide dispersion coverage of 120° x 30°

  • Bluetooth enabled for wireless audio streaming

Key Features


  • High power performance with strong low-end and clear highs

  • Frequency response: 40 Hz – 20 kHz (±3 dB)

  • Extended frequency range down to 35 Hz

  • 12” LF driver with 2” voice coil for punchy bass

  • Compression HF driver with PEI diaphragm for clarity

  • Mini EVO-Fold waveguide for controlled sound dispersion

  • Birch plywood enclosure for durability and better acoustics

  • Steel grille with black/white tough-tone finish

  • Class D amplifier with high-efficiency switching power supply

  • Switchable mic/line input sensitivity

Connectivity & Inputs


  • 2 x XLR / 1/4” jack combo inputs

  • RCA input for additional source connection

  • XLR line output for linking multiple systems

  • Bluetooth connectivity for wireless playback

Design & Build


  • Modular column system (column + base + subwoofer)

  • Compact footprint with powerful output

  • Ground deployment design

  • No pole mount or rigging required

Applications


  • Live bands and performances

  • DJs and mobile entertainers

  • Corporate events and presentations

  • Houses of worship

  • Rental and AV setups

Physical Specifications


  • Column height: 1210 mm

  • Subwoofer dimensions: 454 x 559 x 576 mm

  • Column weight: 10.5 kg

  • Base weight: 4.3 kg

  • Subwoofer weight: 31 kg
