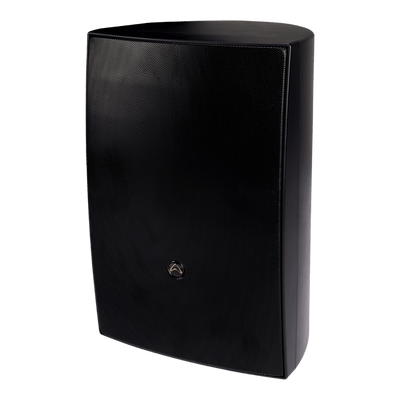

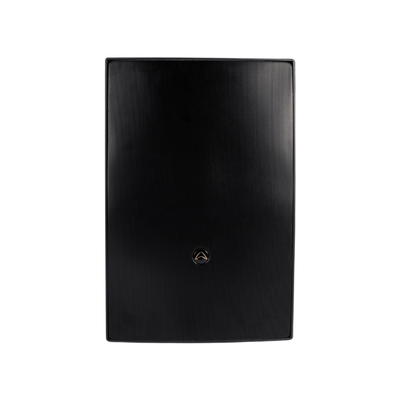

i8T is an 8″ installation loudspeaker from i Series, engineered for distributed audio systems that require higher output, extended low-end response, and all-weather reliability.

Enquire Now

Product details

More Information

Equipped with an 8.0″ LF driver and 1.0″ HF dome tweeter, i8T delivers powerful, balanced sound ideal for restaurants, bars, retail spaces, and commercial installations. Its IP54 certification protects against dust and water spray, ensuring consistent performance in both indoor and semi-outdoor environments.

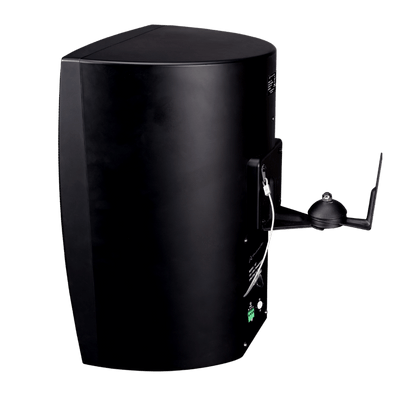

Constructed from robust ABS plastic with a full frontal steel grille, i8T offers durability and a clean, professional appearance. Each pair includes fully adjustable mounting brackets featuring a semi-circular “ball and socket” design for precise aiming and secure installation, along with a seismic restraint tether attachment point for added safety.

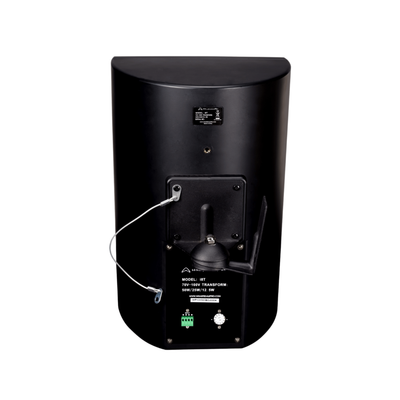

Finished in black or white, i8T integrates seamlessly into any venue. Designed for 70 V / 100 V distributed audio systems, it uses Phoenix connectors for secure, tool-free wiring, while transformer tap adjustments are easily accessible yet safely recessed to prevent accidental changes.

Technical Specifications
  • Active or Passive: Passive
  • System Type: Full-Range
  • Configuration: 2-way
  • System Continuous Power: 50 W
  • Max SPL @ 1m: 103 dB
  • Freq Response (+/-3 dB): 70 Hz - 20 kHz
  • Freq Range (-10 dB): 50 Hz - 20 kHz
  • Bi-amp Mode Switch: No
  • Bluetooth: No
  • IP Certification: IP54
  • Driver Brand: Wharfedale Pro
  • LF Driver Size: 8"
  • LF Voice Coil Size: 1"
  • LF Rated Impedance: 8 Ω
  • LF Power (RE:AES2-2012): 50 W
  • HF Driver Type: Soft Dome Tweeter
  • HF Voice Coil Size: 1"
  • HF Diaphragm Material: Silk
    HF Power (RE:AES2-2012): 10 W
  • HF Rated Impedance: 8 Ω
  • Preset Library: Yes
  • Input Connector: Phoenix Terminal
  • Enclosure Material: ABS
  • Grille Material and Finish: Aluminium
  • Finish: Black or White
  • Handles: No
  • Deployment: Wall Mount
  • Pole Mount: None
  • Brackets Included: Yes
  • Rigging: No
  • Nominal Coverage (H x V): 130° x 180°
  • Sensitivity 2.83 V / 1 M: 86 dB
  • System Rated Impedance: 8 Ω
  • Crossover Frequency: 2.0 kHz
  • Recommended HPF = BW 18 dB/OCT.: 50 Hz
  • Transformer (T): Yes
  • Transformer Taps (70 V): 12.5 / 25 / 50 W
  • Transformer Taps (100 V): 25 / 50 W
  • Input Connectors (T): Screw Terminal
  • Included Accessory: Wall Bracket, User Manual
