i4T is a compact installation loudspeaker from i Series, designed for distributed audio systems where clarity, reliability, and all-weather durability are essential.

Enquire Now

Product details

More Information

Equipped with a 4.0″ LF driver and 1.0″ HF dome tweeter, i4T delivers articulate, full-range sound suitable for restaurants, retail spaces, offices, and public areas. Its IP54 certification ensures protection against dust and water spray, making it ideal for both indoor and semi-outdoor installations.

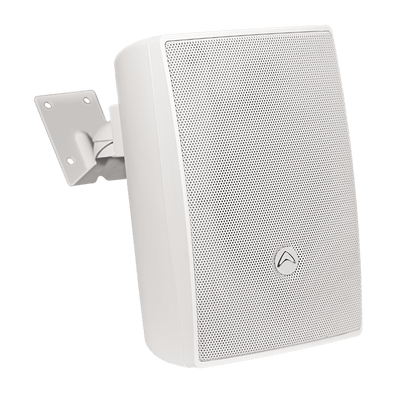

Constructed from ABS plastic with a full frontal steel grille, i4T is built to last while maintaining a clean, unobtrusive appearance. Each pair is supplied with fully adjustable mounting brackets, allowing flexible positioning thanks to their semi-circular “ball and socket” design. A seismic restraint tether attachment point is also included for secure installation.

Finished in black or white, i4T integrates seamlessly into any venue. Designed for 70 V / 100 V distributed audio systems, it uses Phoenix connectors for secure, tool-free wiring, while transformer tap adjustments are easily accessible yet safely recessed to prevent accidental changes.

Technical Specifications
  • Active or Passive: Passive
  • System Type: Full-Range
  • Configuration: 2-way
  • System Continuous Power: 25 W
  • Max SPL @ 1m: 95 dB
  • Freq Response (+/- 3 dB): 100 Hz - 20 kHz
  • Freq Range (-10 dB): 60 Hz - 20 kHz
  • Bluetooth: No
  • IP Certification: IP54
  • Driver Brand: Wharfedale Pro
  • LF Driver Size: 4"
  • LF Voice Coil Size: 1"
  • LF Rated Impedance: 8 Ω
  • LF Power (RE:AES2-2012): 25 W
  • HF Driver Type: Soft Dome Tweeter
  • HF Voice Coil Size: 1"
  • HF Diaphragm Material: Silk

    HF Power (RE:AES2-2012): 10 W
  • HF Rated Impedance: 8 Ω
  • Preset Library: Yes
  • Input Connector: Phoenix Terminal
  • Enclosure Material: ABS
  • Grille Material and Finish: Aluminium
  • Finish: Black or White
  • Handles: No
  • Deployment: Wall Mount
  • Pole Mount: None
  • Brackets Included: Yes
  • Rigging: No
  • Nominal Coverage (H x V): 110° x 130°
  • Sensitivity 2.83 V / 1 M: 83 dB
  • System Rated Impedance: 8 Ω
  • Crossover Frequency: 2.8 kHz
  • Recommended HPF - BW 18 dB/OCT: 60 Hz
  • Transformer (T): Yes
    Transformer Taps (70 V): 6.25 / 12.5 / 25 W
  • Transformer Taps (100 V): 12.5 / 25 W
  • Input Connectors (T): Screw Terminal
  • Included Accessory: Wall Bracket, User Manual
