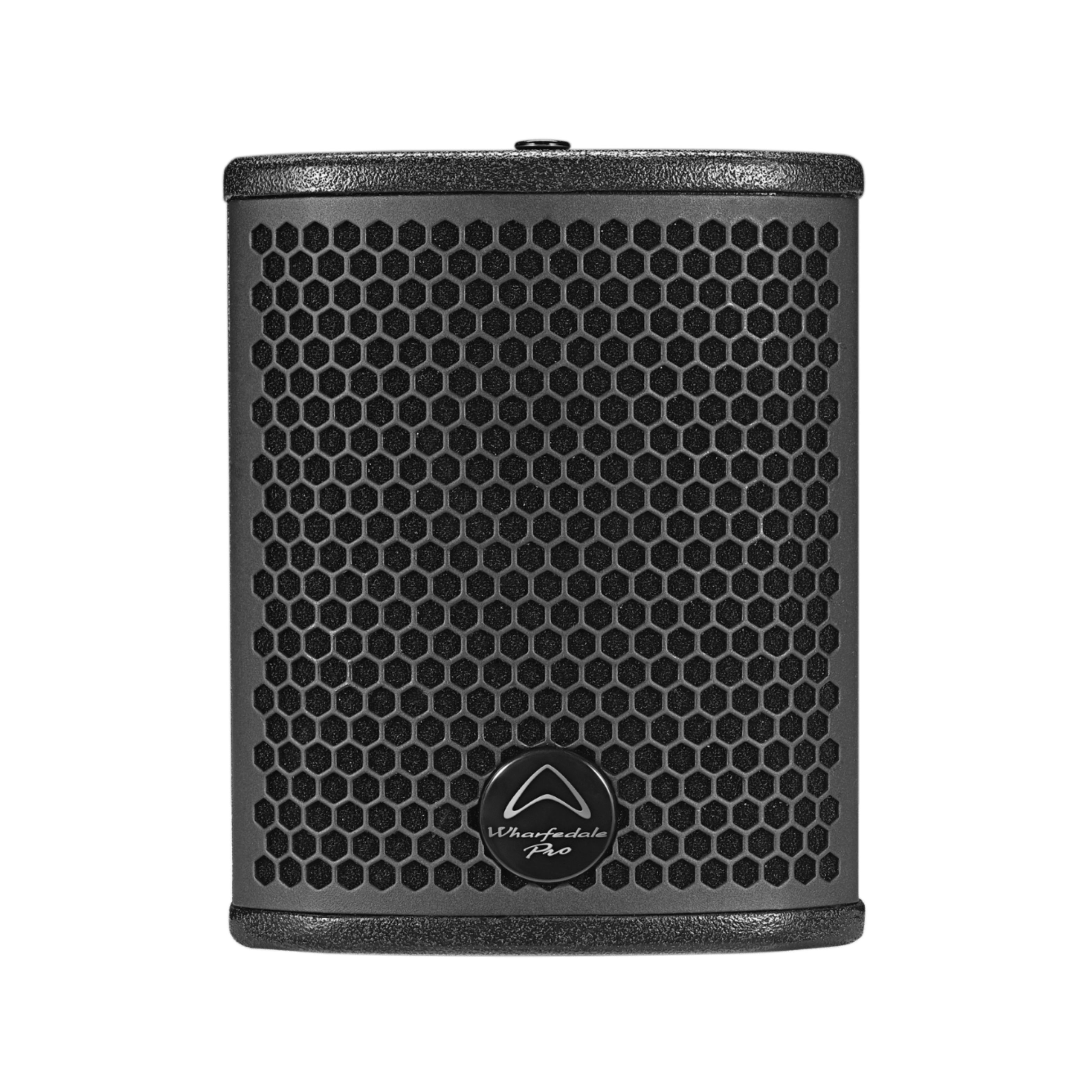

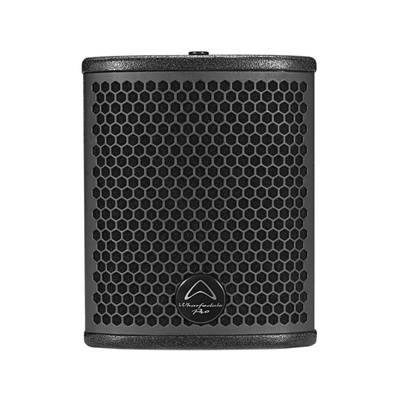

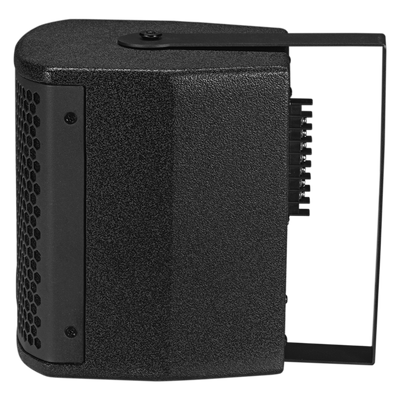

WHARFEDALE PRO GPL-5T

At its core is a Beyma coaxial driver delivering phase-coherent audio and natural vocal reproduction with precise 70° conical dispersion. Its focused sound field provides greater intelligibility and uniformity than conventional point-source systems, making GPL-5T ideal for theatres, bars, nightclubs, and live performance spaces.

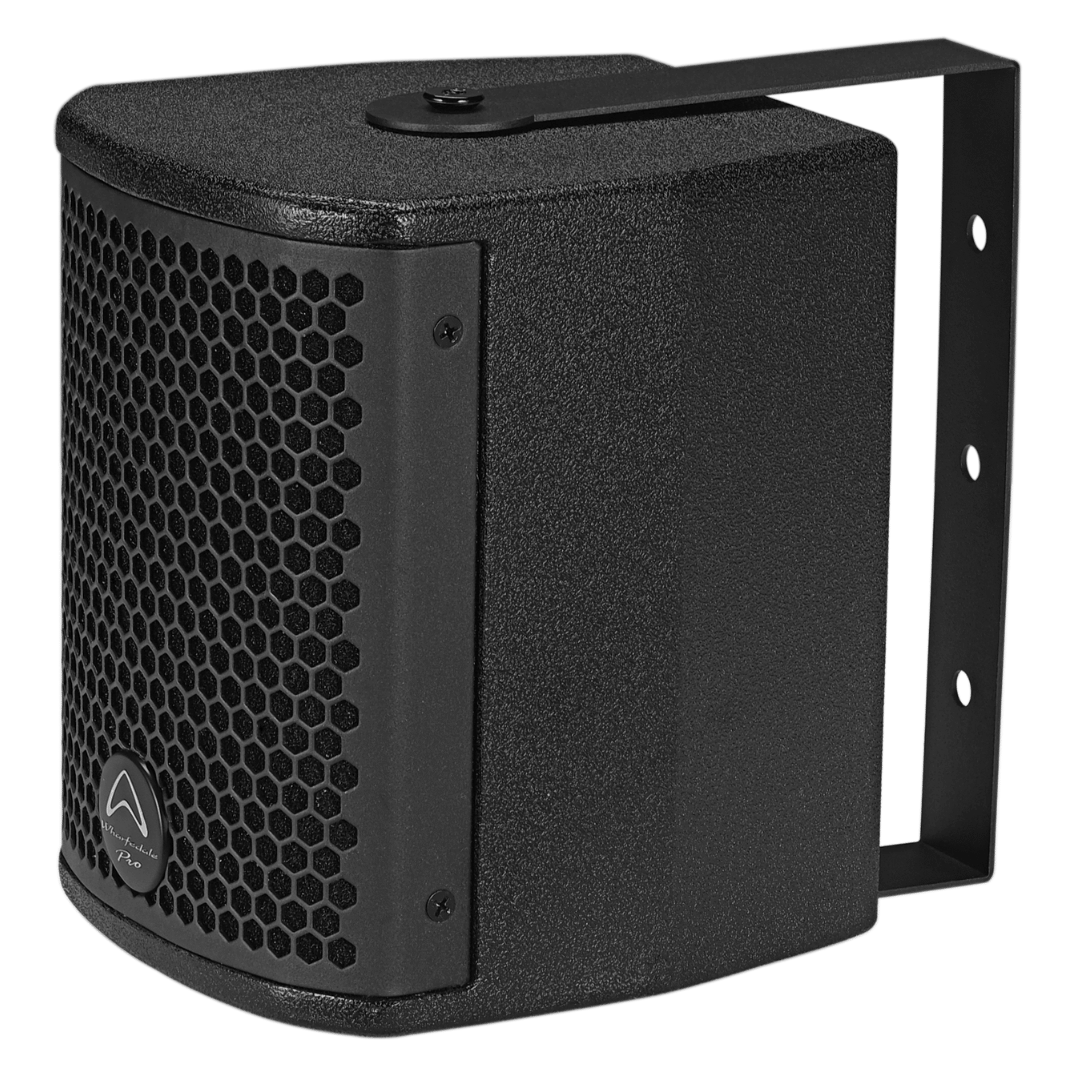

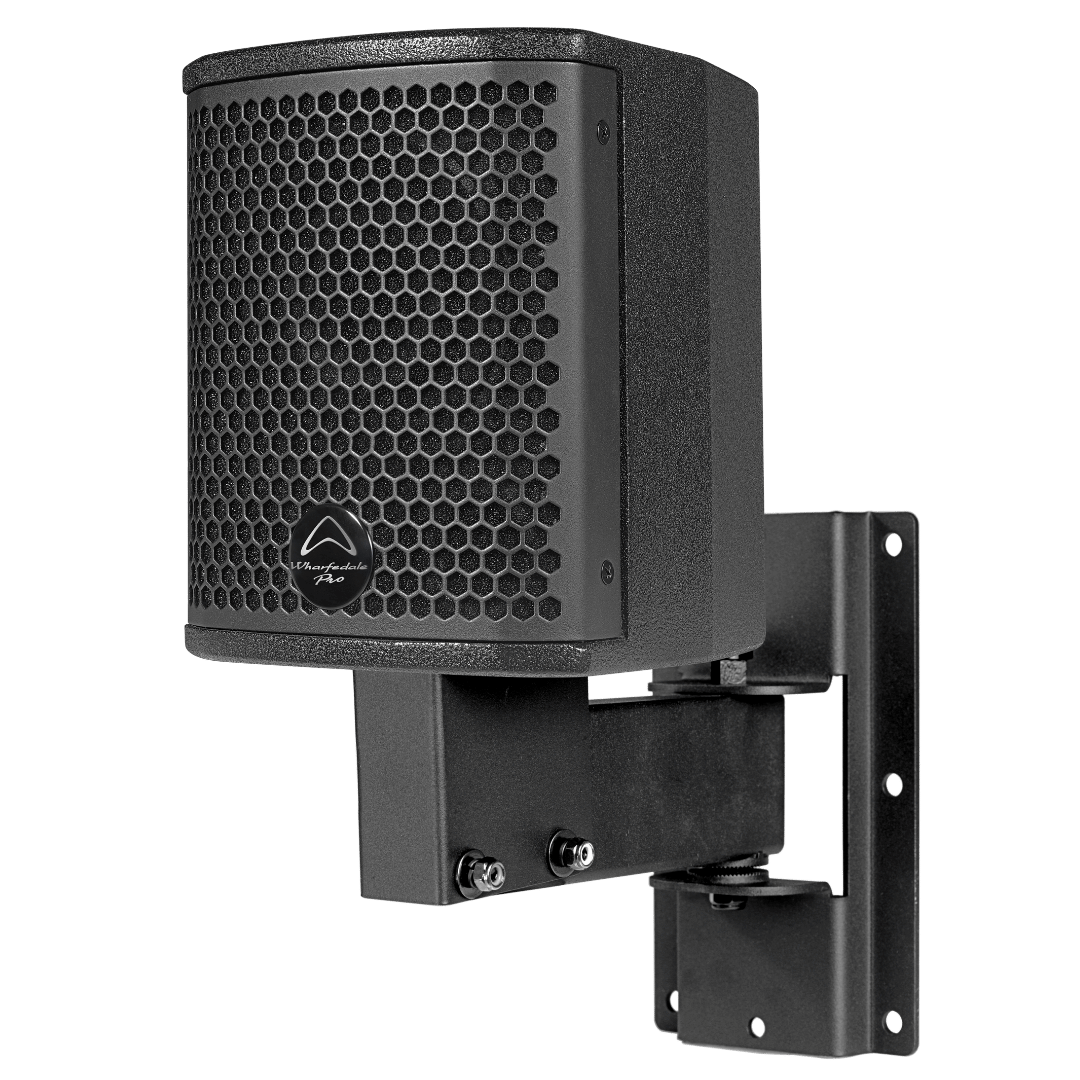

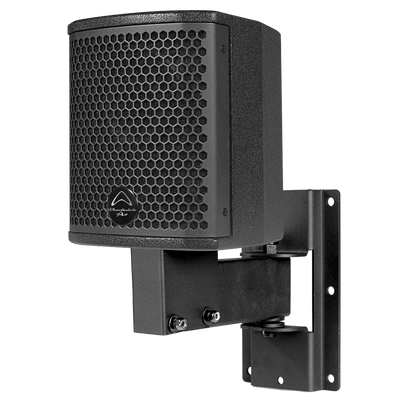

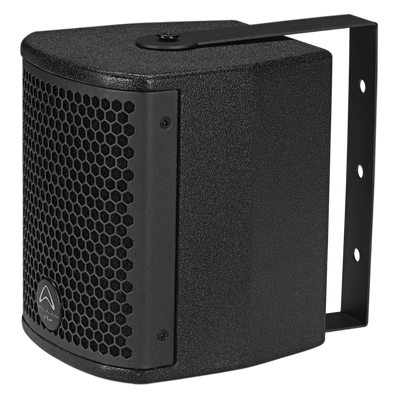

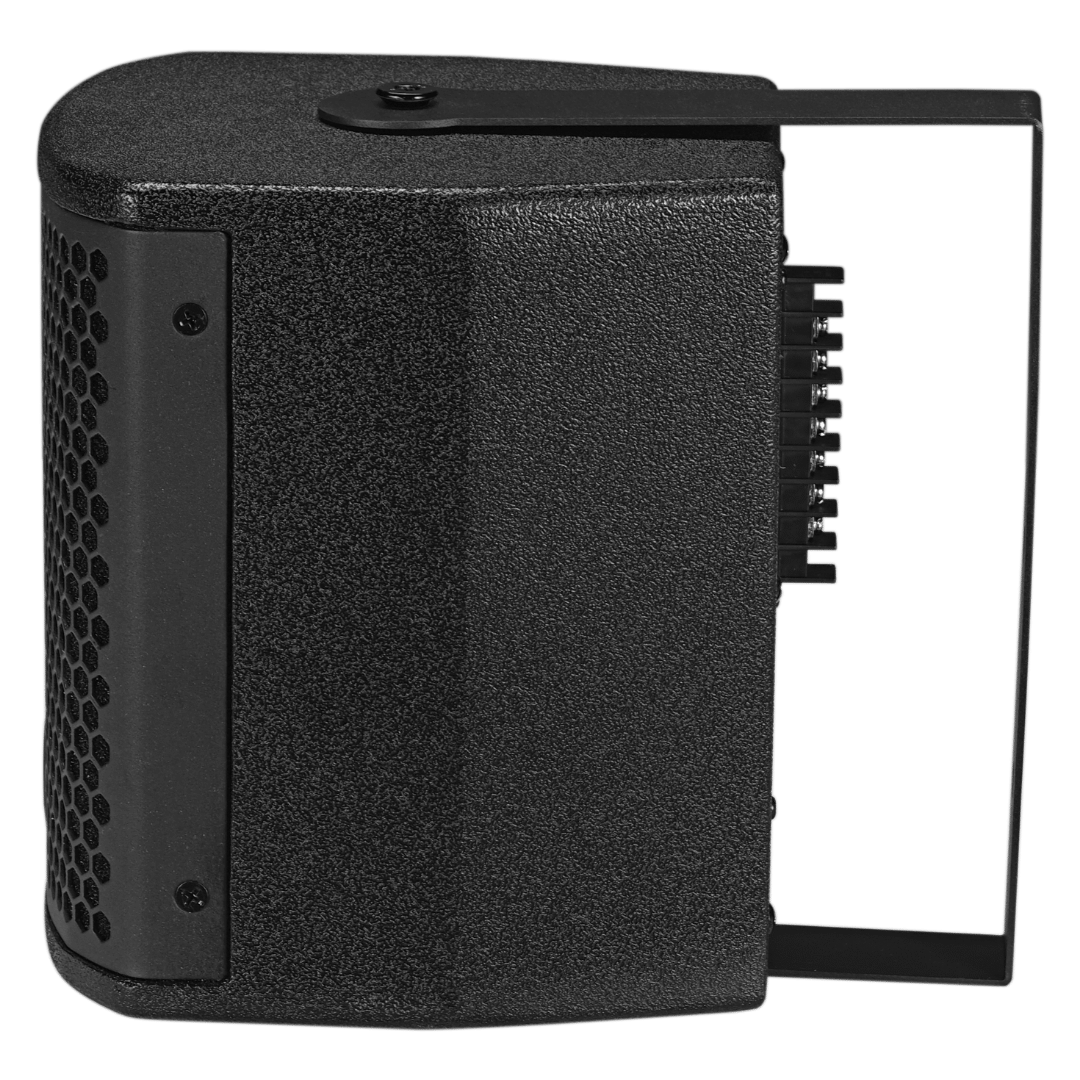

Constructed from birch plywood and finished in black or white, GPL-5T combines installation-ready durability with a discreet visual profile. It can be quickly wall-mounted using optional brackets or the included steel yoke, ensuring flexible positioning. For 70 V / 100 V distributed audio systems, GPL-5T provides tap options at 120 / 60 / 30 / 15 W (70 V) and 120 / 60 / 30 W (100 V).

Handling 200 W continuous (800 W peak) power and producing up to 125 dB max SPL @ 1 m, GPL-5T delivers clean, full-range sound with impressive definition. FIR preset libraries and EASE .gll files are available for accurate system optimisation and seamless integration.

• Active or Passive: Passive
• System Type: Full-Range
• Configuration: Coaxial 2-way
• System Continuous Power: 200 W
• System Programme Power: 400 W
• System Peak Power: 800 W
• Max SPL @ 1m: 125 dB
• Freq Response (+/-3 dB): 80 Hz - 20 kHz
• Freq Range (-10 dB): 68 Hz - 25 kHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Beyma
• LF Driver Size: 5"
• LF Voice Coil Size: 1.5"
• LF Rated Impedance: 8 Ω
• LF Power (RE:AES2-2012): 150 W
• HF Driver Type: Compression Driver

  HF Voice Coil Size: 1.5"
• HF Diaphragm Material: PM4
• HF Exit Size: 1"
• HF Power (RE:AES2-2012): 25 W
• Preset Library: No

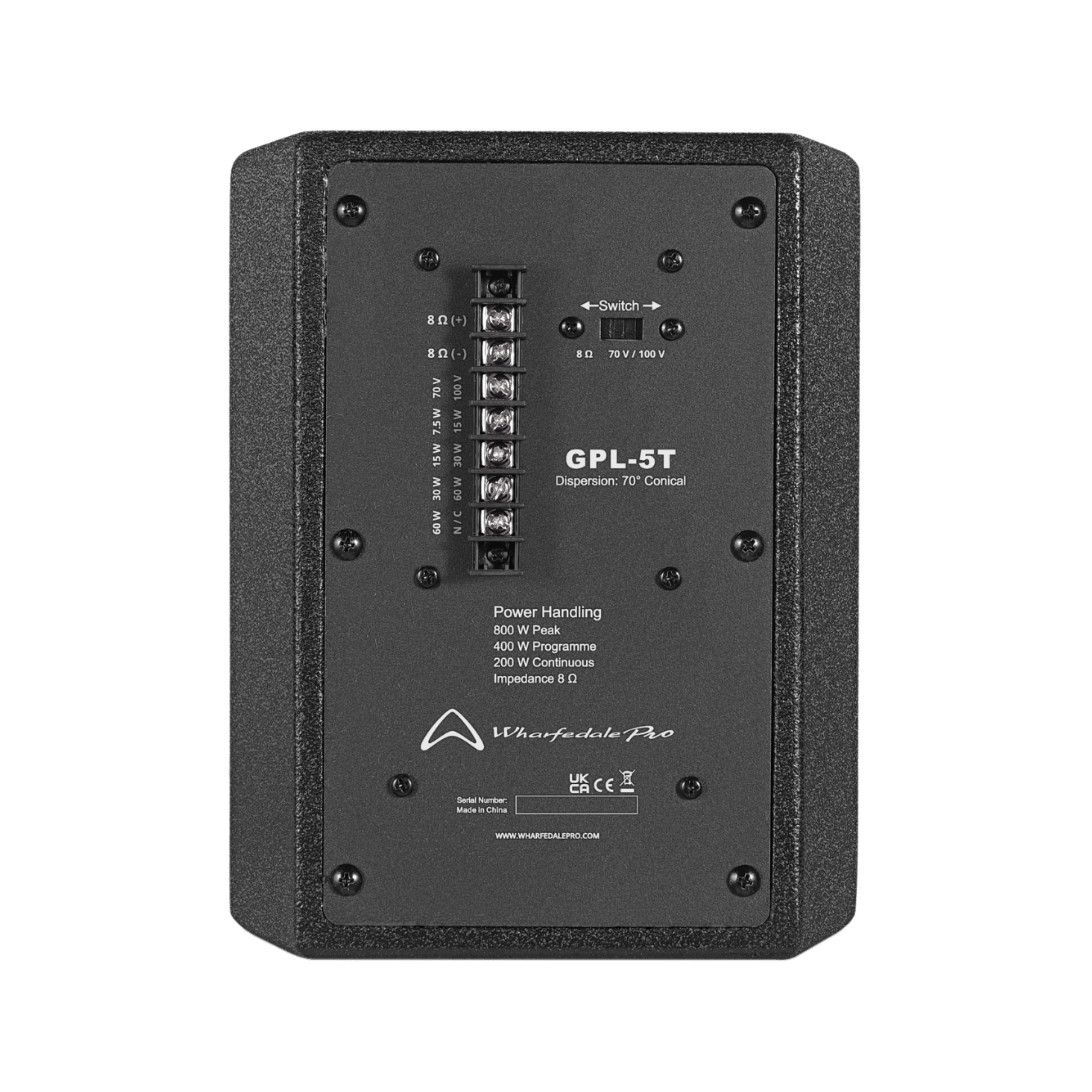

• Input Connector: 2 x 4 Pole Speaker Connector, 1 x Barrier Strip
• Waveguide Type: Spherical
• Enclosure Material: Birch Plywood
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Deployment: Flying, Wall Mount
• Pole Mount: None
• Brackets Included: Yes
• Rigging: Yes
• M8: 4
• M10: 2
• Nominal Coverage (H x V): 70° conical
• Sensitivity 2.83 V / 1 M: 96 dB
• System Rated Impedance: 8 Ω
