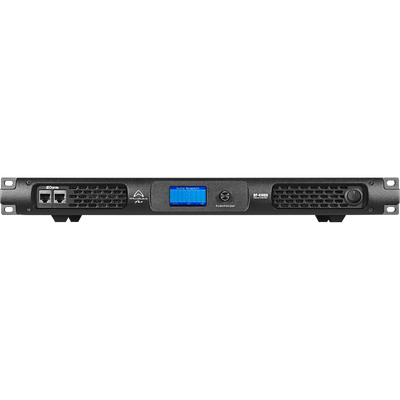

Stable down to 2 Ohms and with huge Class D power, the DP-4100N is a 4-channel amplifier from our DP-N Series, combining advanced DSP control and Dante® connectivity for professional live sound and fixed installation systems.

Delivering 1000 W per channel at 8 Ω, 1700 W at 4 Ω and up to 5780 W bridged at 4 Ω, it offers exceptional output with low distortion and high efficiency. The latest DP-N models feature upgraded DSP controller software, expanded internal processing, an IPS colour display, locking XLR connectors and AES/EBU digital inputs — all enhancing system flexibility and user control.

Enquire Now

Product details

More Information

The DSP Controller software provides powerful functionality for both DP-F and DP-N Series amplifiers. It offers amp grouping, precise EQ and level control, and access to a comprehensive preset library. With built-in SMAART API compatibility, it integrates seamlessly with leading system analysis tools for fast, efficient tuning and optimisation.. Available to download below.

Supporting 70 V Hi-Z operation, DP-4100N is ideal for large distributed installations or multi-zone configurations. Compact, efficient and powerful, it’s built for professionals who need consistent, accurate performance with next-generation control.

Technical Specifications

Power Output(Measured at THD=1%, 1 kHz, all channels driven simultaneously)www.ke.com.my +1

  • 8Ω Stereo: 4 x 1000 W
  • 4Ω Stereo: 4 x 1700 W
  • 2Ω Stereo: 4 x 2890 W
  • 16Ω Bridged: 2 x 2000 W
  • 8Ω Bridged: 2 x 3400 W
  • 4Ω Bridged: 2 x 5780 W
  • 70V Hi-Z: 4 x 1700 W
    Audio Performance
  • DSP/Network: Internal DSP with FIR filtering (512 taps); Dante™ (4x4) enabled
  • SNR: ≥105 dB (Default Gain, A-weighted, 8Ω)
  • THD+N: 0.05% (10% power, 8Ω)
  • Freq Response: 20 Hz – 20 kHz (+0, -0.5 dB)
  • Damping Factor: ≥1000 (20 Hz – 200 Hz, 8Ω)
  • Slew Rate: >50 V/μs
  • Input Impedance: 20 kΩ (Balanced)
  • Max Input Level: +21 dBu (8.7 Vrms)

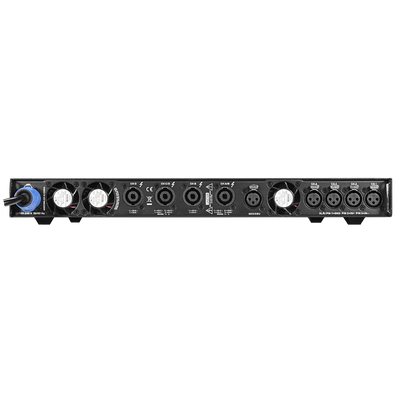

    Physical & Connectivity
  • Inputs: 4 x XLR, Dante™, AES/EBU
  • Outputs: 4 x speakON compatible
  • Dimensions (W x H x D): 483 x 45 x 376 mm (1U Rack)
  • Net Weight: 9.1 kg
  • Mains Power: 90–260 V AC, 50/60 Hz
