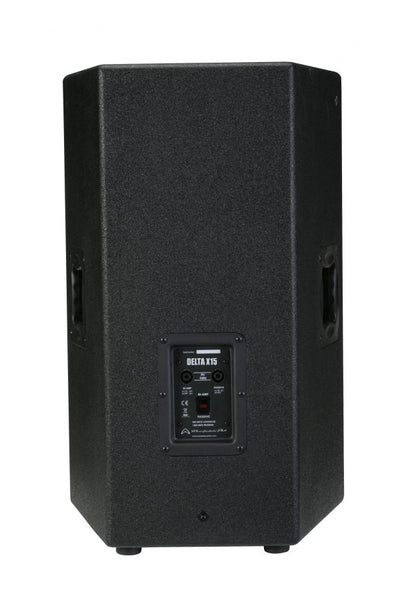

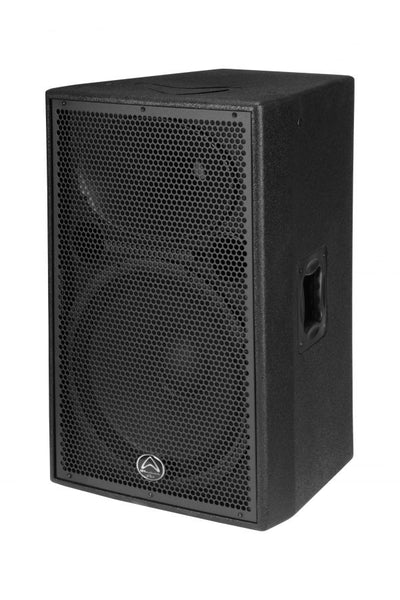

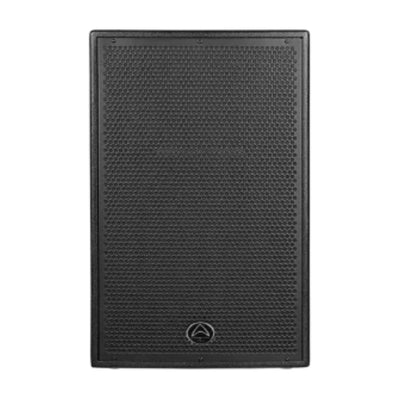

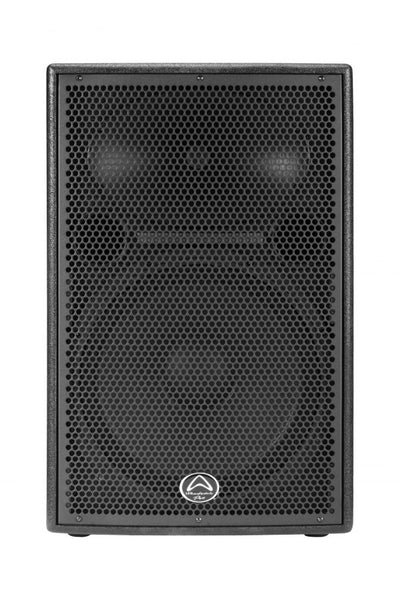

WHARFEDALE PRO DELTA X 15
WHARFEDALE PRO DELTA X 15
Delta X builds on the global success of the Wharfedale Pro Delta series.
Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta X15 is instantly recognisable by the engraved iconic Wharfedale Pro ‘boomerang’ logo on its cabinet. The fresh cosmetic design however is not the only improvement the engineering team have made.
More Information
More Information
Technical Specification
Technical Specification
| Model Name | DELTA-X15 |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3dB) | 50-20KHZ |
| Frequency Range (- 10 dB) | 45-20KHZ |
| Sensitivity (2.83v/1m) | 98dB |
| Calculated Maximum SPL @1m | 131dB |
| System Rated Impedance | 8Ω |
| Low Frequency Transducer | |
| Size | 404mm / 15″ Paper |
| Voice-Coil Size | 77.1mm / 3″ |
| Rated Impedance | 8Ω |
| LF Power (re:AES2-2012) | 500W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice-Coil Size | 50.8mm / 2″ Titanium |
| Exit Size | 35.6mm / 1.4″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 50W |
| Nominal Coverage (H x V) | 90⁰ x 45⁰ |
| Power | |
| System Continuous Power | 500W |
| System Programme Power | 1000W |
| System Peak Power | 2000W |
| Crossover frequency | 1.8kHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| Hardware | |
| Pole Mount | Dual Angle (0⁰ / 10⁰) 35mm Socket |
| Handles | 2 on Sides |
| Enclosure | |
| Enclosure Material | 15mm Plywood |
| Finish | black paint |
| Grille Material & Finish | 1.5 mm Steel Black |
| Dimensions – Unpacked | |
| Height | 700mm / 27.6″ |
| Width Front | 446mm / 17.6″ |
| Width Rear | 281.4mm / 11.1″ |
| Depth | 406mm / 16.0″ |
| Dimensions – Packed | |
| Height | 803mm / 31.6″ |
| Width Front | 622mm / 24.5″ |
| Width Rear | 622mm / 24.5″ |
| Depth | 498mm / 19.6″ |
| Weight | |
| Net Weight (kg / lbs) | 29.9kg / 65.9lbs |
| Gross Weight (kg / lbs) | 35.5kg / 78.1lbs |
