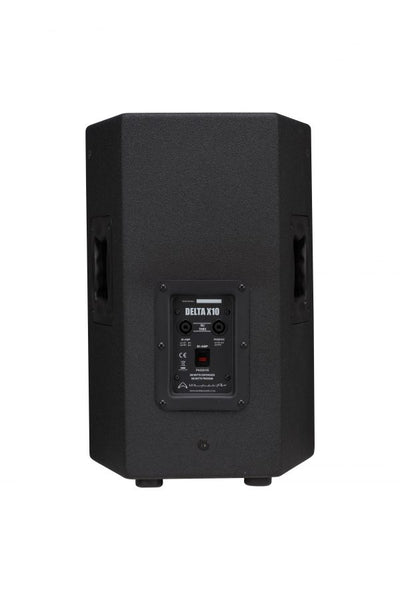

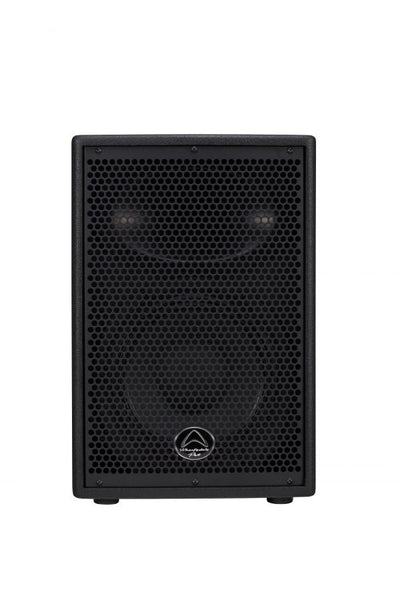

WHARFEDALE PRO DELTA X 10

WHARFEDALE PRO DELTA X 10

Delta X builds on the global success of the Wharfedale Pro Delta series.

Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta X10 is instantly recognisable by the engraved iconic Wharfedale Pro ‘boomerang’ logo on its cabinet.  The fresh cosmetic design however is not the only improvement the engineering team have made.

More Information

  • 10″ 2-way full range
  • 2.5″ LF voice coil
  • 128dB Max SPL
  • Birch plywood construction
  • Premium Rhino Rock paint
  • 8Ω impedance
  • 300w continuous
  • 600w programme
  • 1200w peak
  • 2 carry handles
  • Bi-amp and Passive operation

Technical Specification



Model Name DELTA-X10
System Type Passive
Configuration Two-way
Frequency Response (+/-3dB) 65-20kHz
Frequency Range (-10 dB) 60-20kHz
Sensitivity (2.83v/1m) 97dB
Calculated Maximum SPL @1m 128dB
System Rated Impedance
Low Frequency Transducer
Size 288mm / 10″ Paper
Voice Coil Size 63.5mm / 2.5″
Rated Impedance
LF Power (re:AES2-2012) 300W
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44.5mm / 1.75″ Titanium
Exit Size 25.4mm / 1″
Diaphragm Material Titanium
Rated Impedance
HF Power (re:AES2-2012) 40W
Nominal Coverage (H x V) 90⁰ x 60⁰
Power
System Continuous Power 300W
System Programme Power 600W
System Peak Power 1200W
Crossover frequency 2.8kHz
Input Connector 2 x NL4 (speakON Compatible)
Hardware
Pole Mount Dual Angle (0⁰ / 10⁰) 35mm Socket
Handles 2 on Sides
Enclosure
Enclosure Material 15mm Plywood
Finish black paint
Grille Material & Finish 1.5 mm Steel Black or White
Dimensions – Unpacked
Height 500mm / 19.7″
Width Front 338mm / 13.3″
Width Rear 212.4mm / 8.4″
Depth 330mm / 13.0″
Dimensions – Packed
Height 575mm / 22.6″
Width Front 400mm / 15.7″
Width Rear 300mm / 11.8″
Depth 386mm / 15.2″
Weight
Net Weight (kg / lbs) 16.58kg / 36.5lbs
Gross Weight (kg / lbs) 19.6kg / 43.0lb
