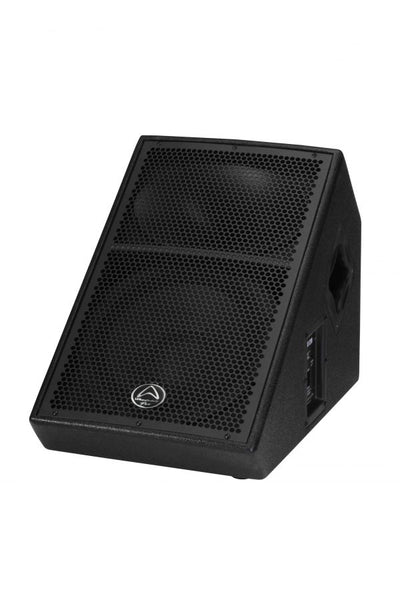

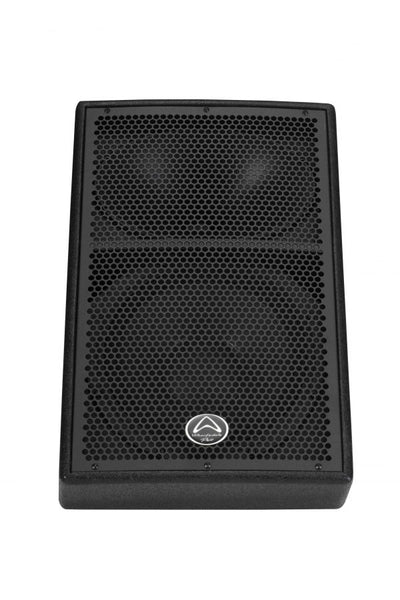

Delta 12M is a PA monitor speaker made for on stage use with bands, DJs and fixed installations. Featuring a 2” titanium voice coil combined with a 12” low distortion cast frame woofer, the loudspeaker generates 450 watts RMS of power while the 90 x 60 waveguides ensure a long-throw projection.

More Information

  • 400W RMS
  • 60Hz – 20kHz Frequency Response
  • 129dB Max SPL
  • 12” low distortion cast frame woofer
  • 2” titanium compression driver
  • 2 x Parallel Speakon Inputs
  • Rhino Rock textured black paint finish
  • Plywood construction
  • Steel grille
  • 2 x 4-way high impact plastic handles

Technical Specification

Configuration :2-Way
Frequency Response :(+/- 3dB)60Hz - 20KHz
Power :(RMS / Program / Peak) 400W / 800W / 1600W
Impedance :
Max SPL :129dB
Low Frequency Transducer :12"
High Frequency Transducer :2" Titanium Compression Driver
Nominal Coverage :90° x 45°
Waveguide Type :Elliptical
Input :2 x Speakon
Net Weight :23.18kg / 50.9lbs
Gross Weight :28.5kg / 62.8lbs
Dimensions (H x W x D) :449mm x 390mm x 618mm
