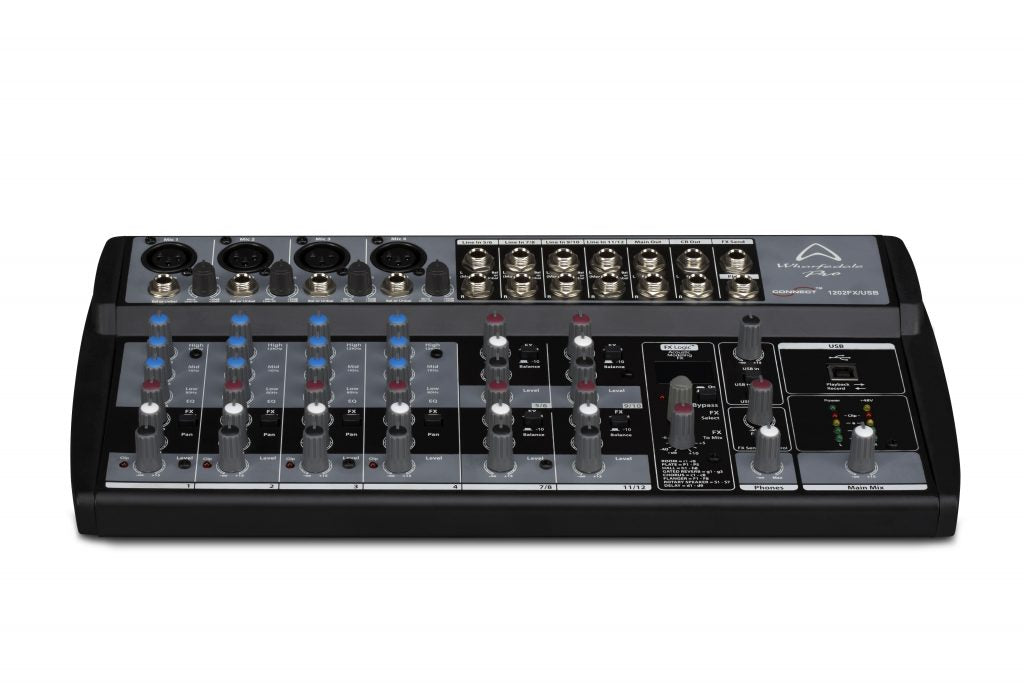

WHARFEDALE PRO CONNECT 1202FX/USB

WHARFEDALE PRO CONNECT 1202FX/USB

The Wharfedale Pro Connect 1202FX/USB is a compact mixing desk with massive capabilities. If you need a portable mixing desk and you do not want to sacrifice space for connections we have managed to condense ample inputs, outputs, digital FX and a USB audio interface into a small footprint mixer which is at home in the studio as it is the road.

Enquire Now

Product details

More Information
  • 16 Total inputs (4 x XLR / 6.3mm Jack, 4x twin 6.3mm jack)
  • 4 x 6.3mm jack outputs (master, control room)
  • Studio grade phantom power XLR
  • 16 bit / 48kHz built in USB audio interface
  • Playback and record via USB audio interface
  • 80Hz HPF on first 4 channels
  • Headphone output
  • Pan / Balance control
  • Clip LED display
  • Ideal for home studio recording and live use
  • slimline profile for portability and to fit in gig bags
  • FX Send
  • 56FX Logic effects built-in with independent send
Technical Specifications


Channels – 12

Inputs – 4 × XLR, 12 × 6.3 mm Jack

Outputs – 4 × 6.3 mm Jack

Headphone Output – 6.3 mm Jack

EQ – 3-Band

FX – 56 FX Logic Acoustic Modelling effects: Room, Plate, Hall & Gated Reverb, Chorus, Flanger, Rotary Speaker, Delay

Phantom Power – Yes

USB – 16-bit / 48 kHz

Signal-to-Noise Ratio – >78 dB ±5 dB @ Max Gain

Frequency Response – 20 Hz – 20 kHz ±1 dB

Display – Dual 4-segment LED, FX setting display

Dimensions (H × W × D) – 360.2 × 183.8 × 52.8 mm

Weight – 1.69 kg / 3.3 lb
