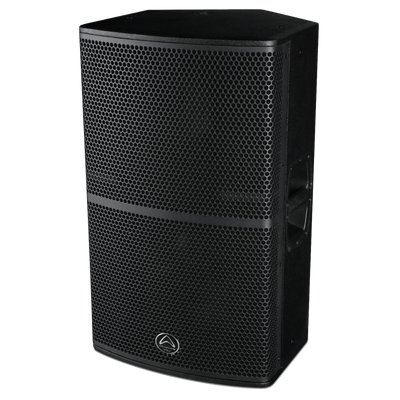

15″ 2-way passive floor monitor
4.0″ LF voice coil
3.2″ Neo HF compression driver
Birch plywood construction
Rotatable waveguide
35 mm pole socket
700 watts AES (RMS)
1400 watts Programme
2800 watts Peak
Max SPL @ 1 meter 134 dB

ValueActive or Passive-PassiveSystem

Type-Floor Monitor

Configuration2-way-

System Continuous Power-700 W

System Programme Power-1400

WSystem Peak Power-2800

WMax SPL- @ 1m134 dB

Freq Response (+/-3 dB)50 Hz -20 KHz-

Freq Range (-10 dB)40 Hz -20 KHz

Bi-amp Mode Switch-No

Bluetooth-No

IP Certification-None

Driver Brand-Wharfedale Pro

LF Driver Size-15"LF Voice Coil Size-4"LF

Rated Impedance-8 Ω

LF Power- (RE:AES2-2012)700

WHF Driver Type-Compression Driver

HF Voice Coil Size3"-

HF Diaphragm Material-Titanium

HF Exit Size-1.4

"HF Power (RE:AES2-2012)-80

WHF Rated Impedance-8 Ω

Preset Library-No Input Connector4 x 4 Pole speaker connector

Waveguide Type-Square

Enclosure Material-Birch Plywood

Grille Material and Finish-Steel Black

Finish -Black

tHandles2Deployment -Pole, Wall Mount, Ground

Pole Mount-35 mm

Rigging-Yes

M1010Nominal Coverage (H x V)90° x 60° (Rotatable)

Sensitivity 2.83v / 1m99.5 dBSystem Rated Impedance8 ΩCrossover Frequency1.9 KHzRecommended HPF = BW 18 dB/OCT.40 HzTransformer (T)NoTransformer Taps (70 V)NoTransformer Taps (100 V)NoInput Connectors (T)NoIncluded AccessoryUser ManualUnpacked - Height (mm)723Unpacked - Width Front (mm)432Unpacked - Width Rear (mm)432Unpacked - Depth (mm)434Packed - Height (mm)811Packed - Width Front (mm)480Packed - Width Rear (mm)480Packed - Depth (mm)512Weight - Nett (kg)27.8Weight - Gross (kg)
