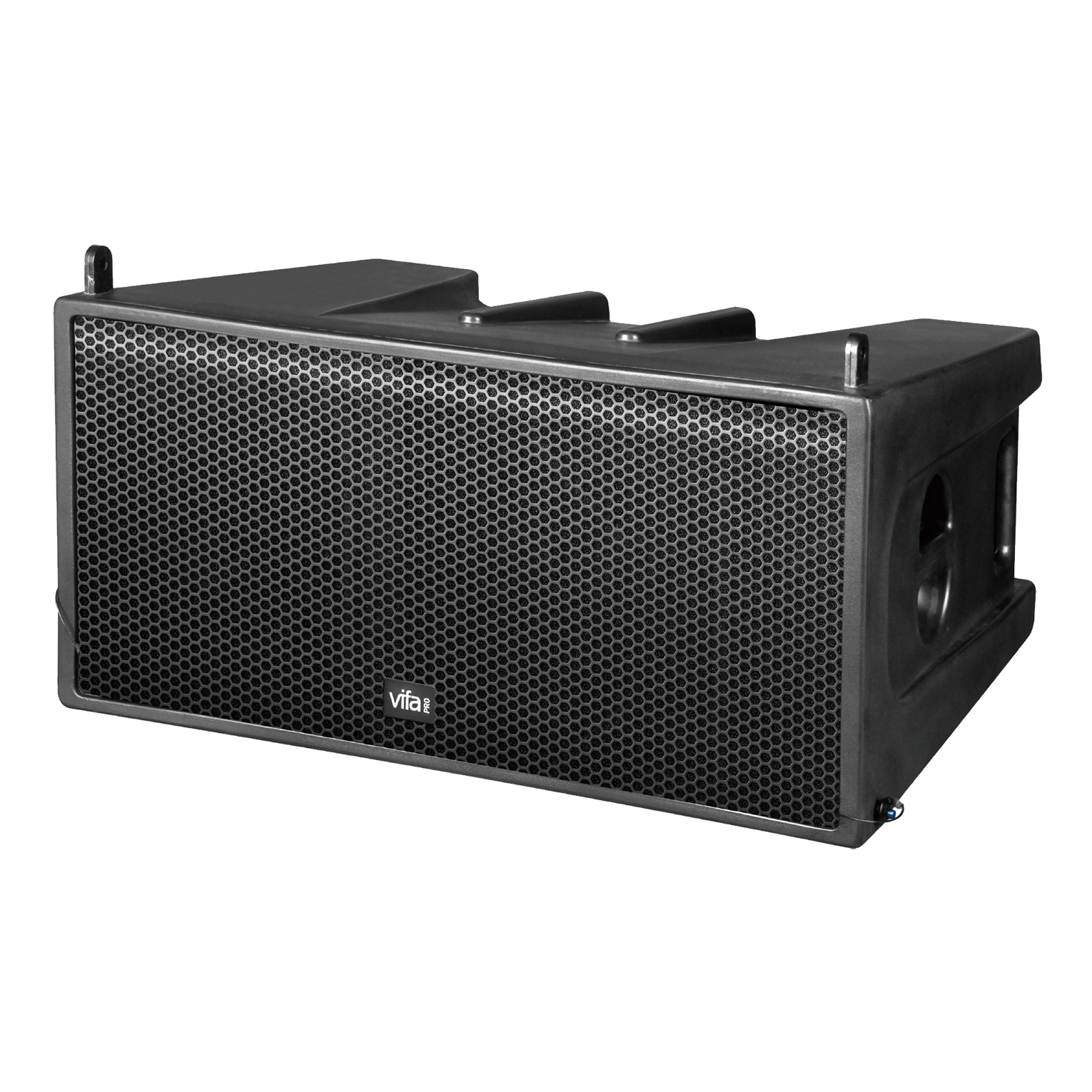

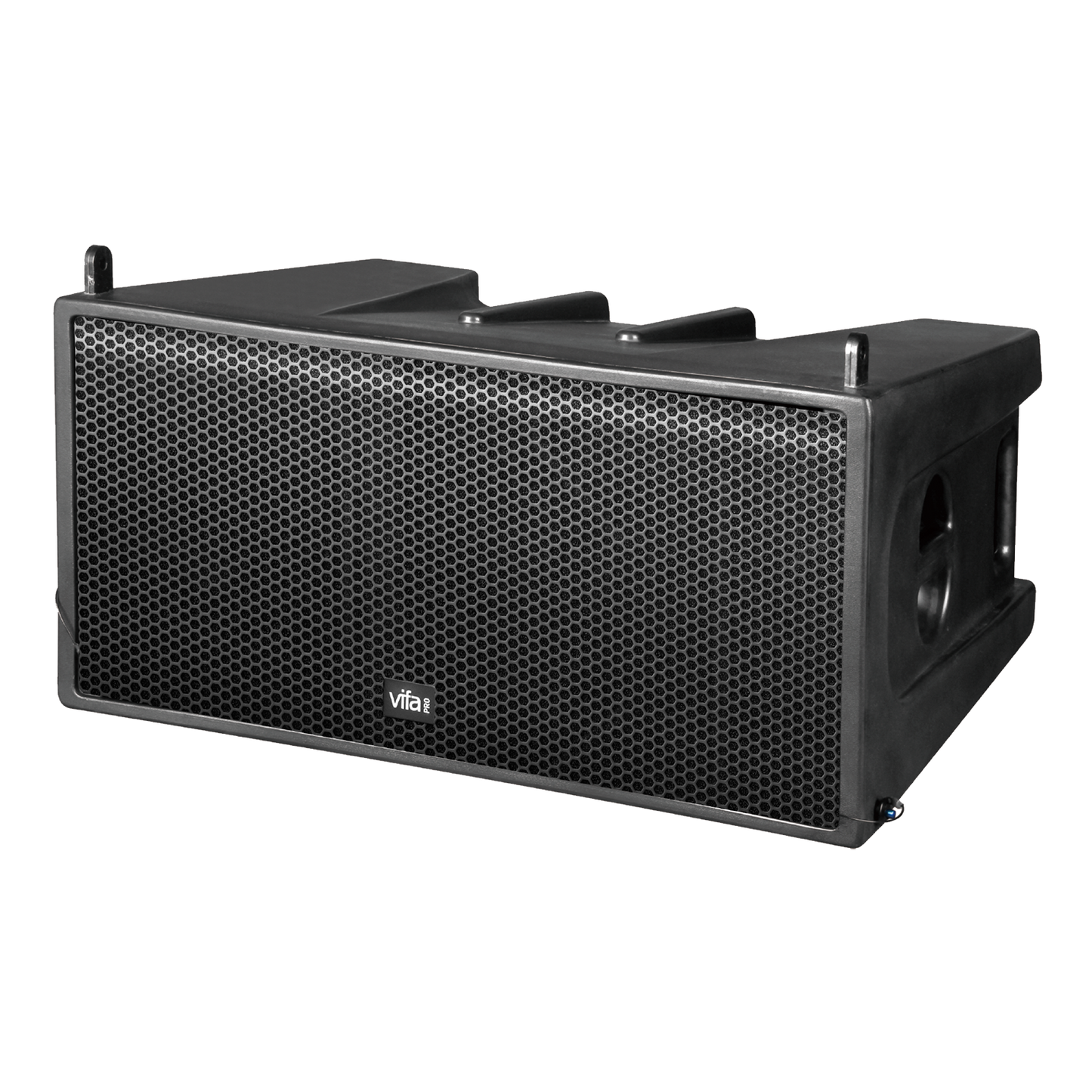

VIFA PRO Karup 12PN

VIFA PRO Karup 12PN

WLA 2212 F, a three-way all-weather line array speaker with bi-amplified drivers, is designed for extreme environments with IP66-rated water, dust, wind and UV resistance. A five-layer composite material grille is used for enhanced durability. Hanging and connecting parts are made of stainless steel or aluminum alloy to ensure corrosion resistance and stability.

Unit configuration:2 x 12-inch high-efficiency mid-woofers,2x1.4-inch neodymium mid-frequency coaxial drivers with 90mm voice coils, and 44mm high-frequency coaxial neodymium units with customized waveguides and horns for precise soundstage control. A three-point hanging system secures the installation. The cabinet is made of polymer composite material, refined through a special process to meet all kinds of outdoor challenges.

Enquire Now

Product details

More Information


• IP66 rating

• Polymer composite material mold forming box, five layers of waterproof, dustproof composite grille, strong weather resistance

• Passive 3-way, simple operation, saves amplifiers

• Can be matched with VIFA WLA B212

• Applications: outdoor fixed installation

Technical Specifications
  • Frequency Response – 60 Hz – 1 kHz (LF), 500 Hz – 18 kHz (MF+HF)
  • Drivers –

Low-Frequency (LF) – 2 × 12" (300 mm) woofers with 3" voice coils

Mid-Frequency (MF) – 2 × 1.4" (36 mm) neodymium drivers with 3.5" voice coils

High-Frequency (HF) – 2 × 1.4" (36 mm) neodymium drivers with 1.7" voice coils

  • Rated Power –

LF – 800 W RMS, 3200 W peak

MF+HF – 300 W RMS, 1200 W peak

  • Sensitivity –

LF – 101 dB (1 W / 1 m)

MF+HF – 110 dB (1 W / 1 m)

  • Maximum SPL –

LF – 130 dB continuous, 136 dB peak

MF+HF – 134 dB continuous, 140 dB peak

  • Impedance –

LF – 8 ohms nominal

MF+HF – 16 ohms nominal

  • Dispersion (-6 dB) –

Horizontal – 90°

Vertical – Varies depending on array length and configuration

  • Crossover Frequency – 600 Hz (passive)
  • Connectors – 2 × Speakon NL4
  • Dimensions – 756 mm (W) × 374 mm (H) × 550 mm (D)
  • Net Weight – 39 kg per unit
