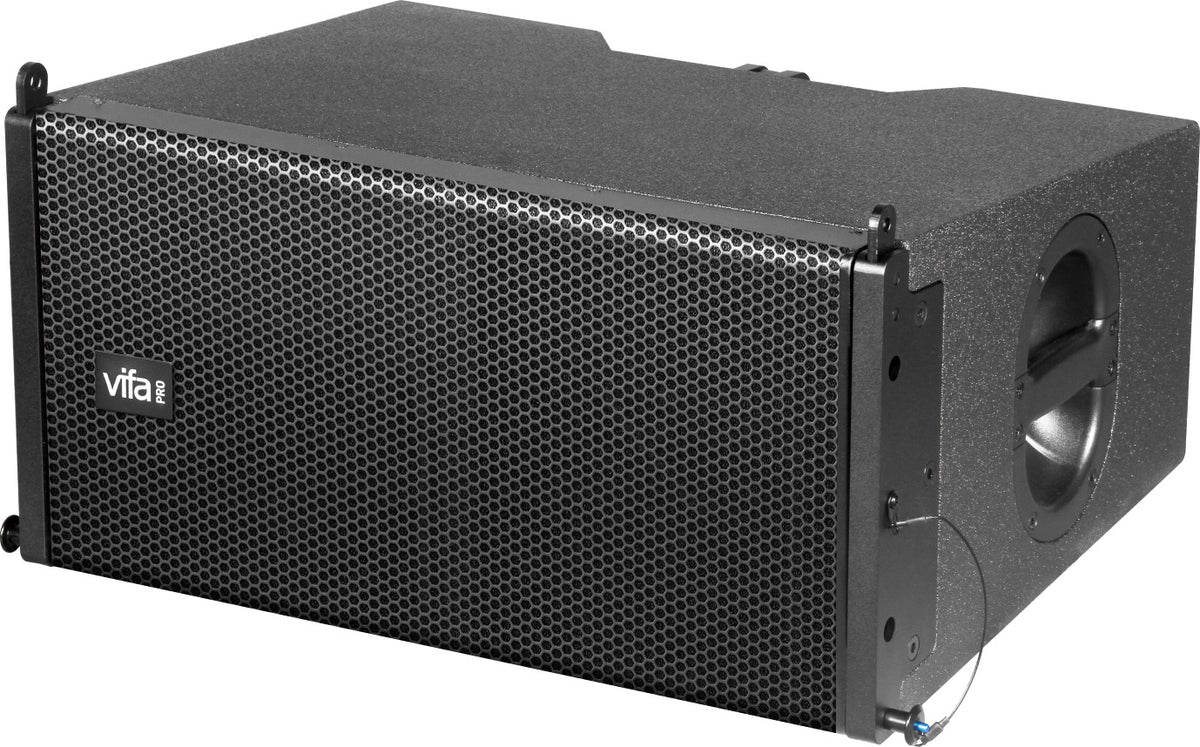

VIFA PRO PLA 1208 F

VIFA PRO PLA 1208 F

PLA-1208-F is a medium-sized line array speaker with an accurate coverage angle, lightweight, and high SPL. lt uses low distortion mid-bass unit, high-quality HF driver with a special waveguide and horn, accurate and uniform coverage over the effective frequency range. The whole hanging system adopts aluminum alloy material, humanized design makes the system fast installation and ensures safety, and it can be used in combination with multiple speakers.

Unit configuration: 2x8" high-efficiency mid-bass units, 1x1.4"exit throat 75mm voice coil HF drivers. The wood box adopts multiplayer composite plywood, wear-resistant, and waterproof polyurea paint. PLA-1208-N is a neodymium magnetic unit.

More Information

  • 1200 watt peak power - 300 watt RMS
  • 129 dB max SPL
  • 80kHz -18kHz frequency response
  • 2x8’"woofers+1x1.4"*compression driver
  • High-quality plywood with wear-resistant and
  • waterproof polyurea paint

Technical Specification

  • Frequency Response: 80 Hz – 18 kH

  • Drivers:
    Low-Frequency (LF): 2 × 8" (200 mm) woofers with 2" voice coils
    High-Frequency (HF): 1 × 1.4" (36 mm) compression driver with a 3" voice coil
  • Power Handling:
    300 W RMS
    1200 W Peak

  • Sensitivity: 98 dB (1 W / 1 m)
    Maximum SPL:
    123 dB Continuous
    129 dB Peak

  • Impedance: 8 ohms nominal

  • Dispersion (-6 dB): Horizontal: 90°

  • Vertical: Varies depending on array length and configuration

  • Crossover Frequency: 900 Hz (passive)

  • Connectors: 2 × Speakon NL4

  • Dimensions: 560 mm (W) × 279.5 mm (H) × 425 mm (D)

  • Net Weight: 25.5 kg per unit
