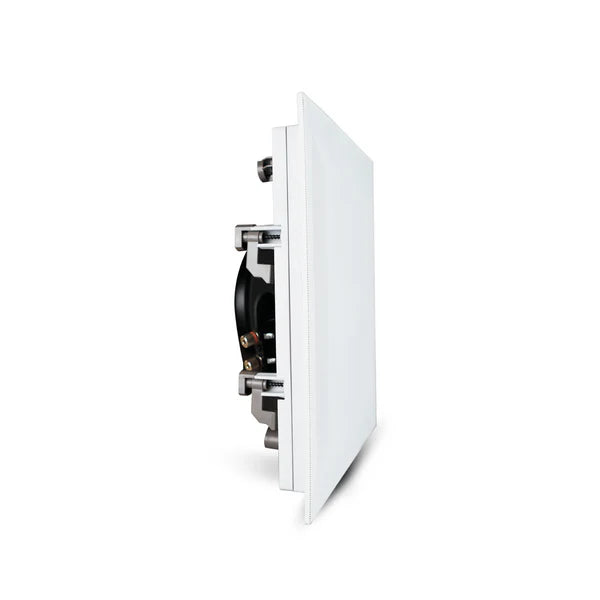

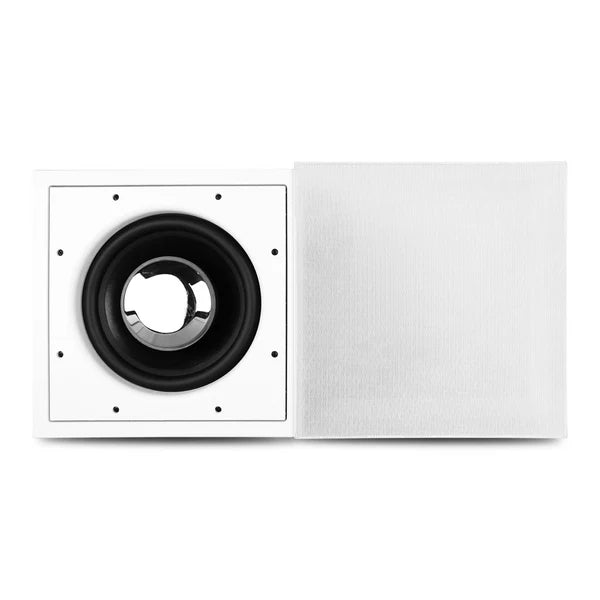

VIFA PRO PIW-0110-101-N

The VIFA PRO PIW-0110-101-N is a robust 10” in-wall speaker designed for full-range sound reinforcement in home audio and commercial applications. With a high-power treated paper cone woofer and extended low-frequency response, it delivers impactful audio with clarity and depth. Its installer-friendly features and durable ABS enclosure make it ideal for long-lasting wall-mounted performance.

More Information

Premium 10” in-wall speaker for home theater & commercial spaces
Long-excursion woofer delivers rich, deep bass output
Wide 90° coverage for consistent room-filling sound

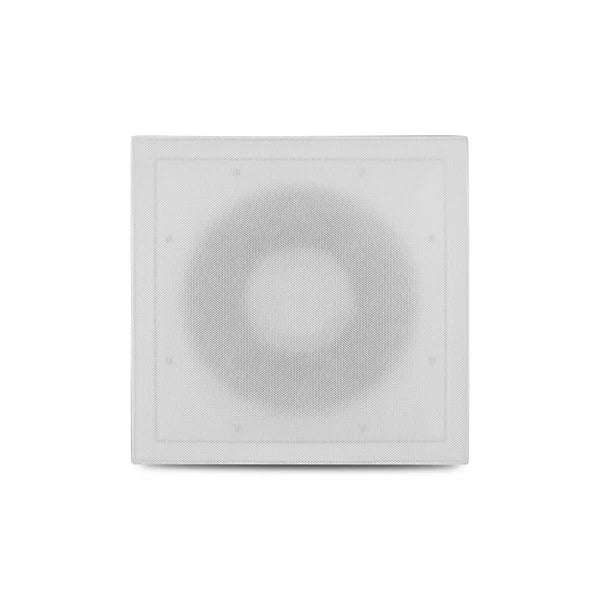

Sleek architectural design with white flush-mount grille
Low-distortion performance at high SPL levels
Durable ABS build ensures long-term reliability
Installer-friendly dog-ear mounting brackets
Compatible with 8-ohm distributed audio setups
Ideal for LFE support or low-frequency reinforcement

Technical Specification

Impedance: 8 Ohms
Plenum Usage: without plenum
Transformer Taps: without transformer
Frequency Range (-10dB): 36Hz–150Hz
Backcan: without backcan
Sensitivity: 84dB 1w/1m
Baffle/Rim: without baffle
Coverage Angle: 90° Angle
Input Connectors: Spring Binding Posts
Color: White
Tap Selector: without selector
Materials: ABS
Grille Color: White
Dimensions (H × W × D): 13-5/8" × 13-5/8"
Net Weight: 4.58 kg (one speaker)
Shipping Weight: 6.2 kg ea; 25.5 kg (4 PCS in master carton)
Wall Cutout Size: 12-1/16" × 12-1/16"
Suspension / Safety-Seismic Attachment Points: Installer-friendly Dog Ear Installation Brackets
Power Rating: 100W
Maximum SPL (1m): 105dB continuous, 108dB peak
Recommended Protective High Pass: 30 Hz high-pass (24dB/oct) for 8ohm direct
