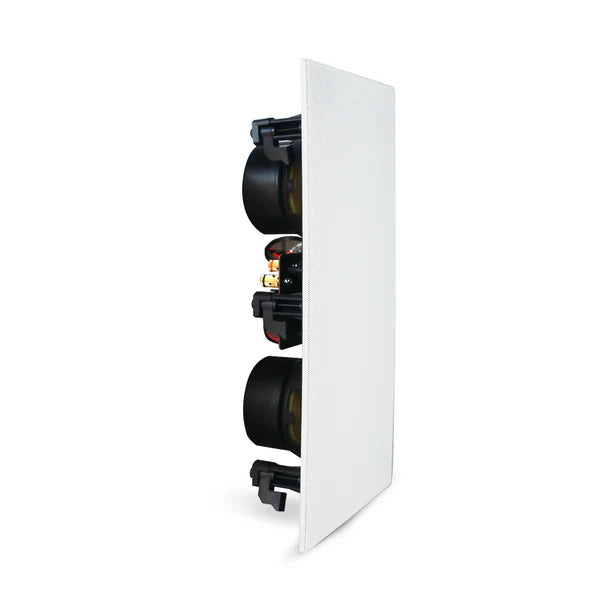

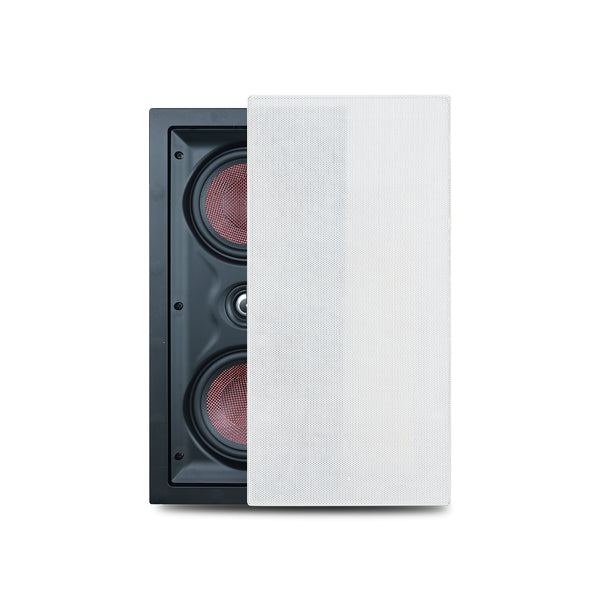

VIFA PRO IWB-1205-87-N

The VIFA PRO IWB-1205-87-N is a high-fidelity 5.25” in-wall LCR speaker designed for premium audio performance in home theater and multi-room installations. Featuring advanced materials such as carbon & glass fiber cones and a ceramic-coated tweeter, this model delivers rich, articulate sound with precision and durability, all housed in a sleek, installer-friendly design.

More Information

Dual 5.25" carbon + glass-fiber drivers for powerful midrange
1" ceramic-coated aluminum tweeter for crystal-clear highs
90° wide-coverage sound dispersion
Designed for Left / Center / Right speaker positions
Excellent vocal clarity for home theater front-stage channels

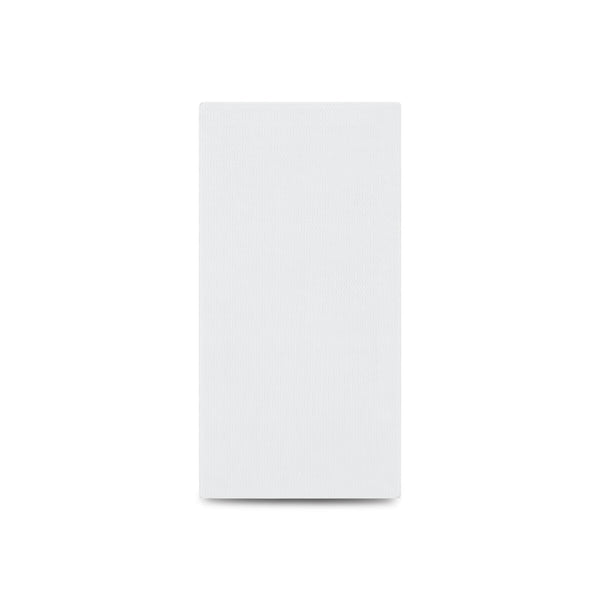

Low-profile grille with modern white finish
8-ohm system compatibility for flexibility across amplifiers
Durable ABS construction for long-life performance
Fast, secure installation with dog-ear mounting system

Technical Specification

Impedance: 8 Ohms

Plenum Usage: without plenum

Transformer Taps: without transformer

Frequency Range (-10dB): 57Hz–20kHz

Backcan: without backcan

Sensitivity: 87dB 1w/1m

Baffle/Rim: without baffle

Coverage Angle: 90° Angle

Input Connectors: Spring Binding Posts

Color: Black

Tap Selector: without selector

Materials: ABS

Grille Color: White

Dimensions (H × W × D): 15.6" × 7.5" × 3.75"

Net Weight: 3.0 kg (one speaker)

Shipping Weight: 3.88 kg ea; 15.5 kg (4 PCS in master carton)

Wall Cutout Size: 14.3" × 6.25", Mounting Depth (Assuming .5" Drywall): 3.7"

Suspension / Safety-Seismic Attachment Points: Installer-friendly Dog Ear Installation Brackets

Power Rating: 50W

Maximum SPL (1m): 104dB continuous, 107dB peak

Recommended Protective High Pass: 40 Hz high-pass (24dB/oct) for 8ohm direct
