Product details

More Information

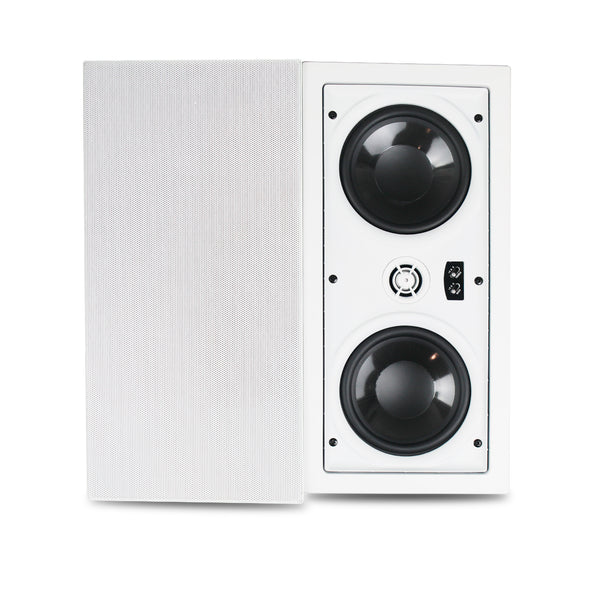

Compact Dual Woofer Configuration: Two 5¼” graphite
woofers deliver punchy mid-lows in a compact form.

Wide Frequency Range: From 65Hz to 20kHz with 90°
coverage for balanced sound dispersion.

Pivoting Tweeter: 1” aluminum dome tweeter offers
flexible sound direction tuning.

Robust Output: Peak SPL up to 105dB, with a
continuous rating of 102dB.

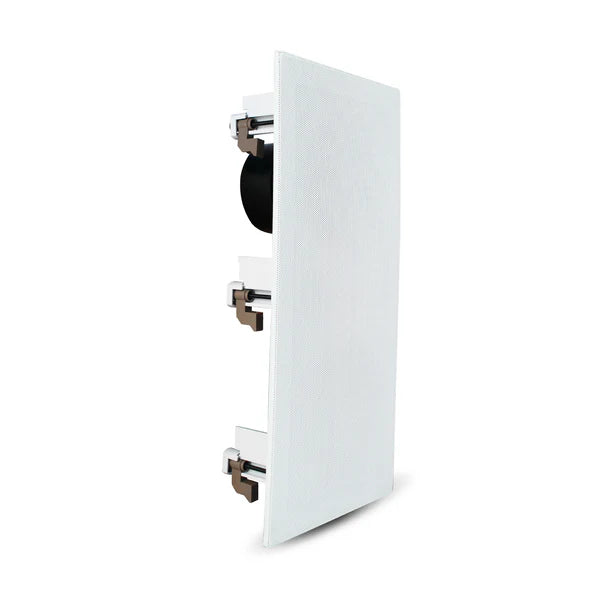

Durable Construction: ABS body with dog ear
installation brackets for secure mounting.

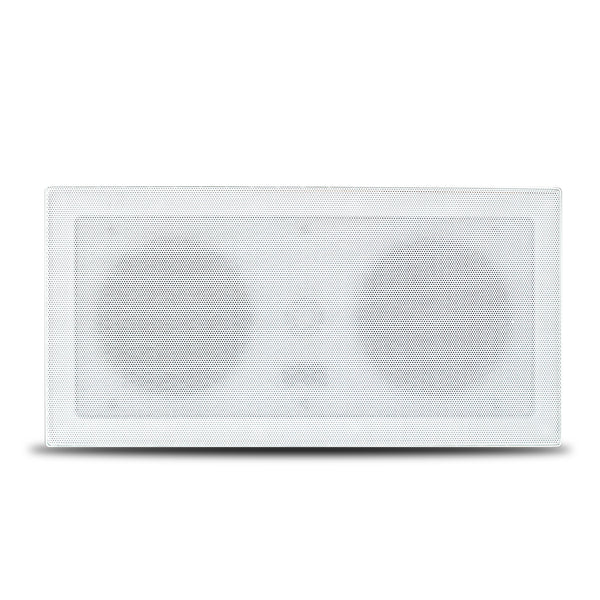

Discrete Design: All-white grille and housing to
blend into most wall finishes.



Technical Specifications

Impedance: 8 Ohms
Plenum Usage: without plenum
Transformer Taps: without transformer
Frequency Range (-10dB): 65Hz–20kHz
Backcan: without backcan
Sensitivity: 85dB 1w/1m
Baffle/Rim: without baffle
Coverage Angle: 90° Angle
Input Connectors: Plastic spring terminal
Color: White
Tap Selector: without selector
Materials: ABS
Grille Color: White
Dimensions (H × W × D):8" × 15-15/16" × 3-7/16"
Net Weight: 3.2 kg (one speaker)

Shipping Weight: 3.9 kg ea; 13.1 kg (3 PCS in master carton)
Wall Cutout Size: 6-3/16" × 14-1/2"
Suspension / Safety-Seismic Attachment Points:
Installer-friendly Dog Ear Installation Brackets
Power Rating: 50W
Maximum SPL (1m):
102dB continuous, 105dB peak
Recommended Protective High Pass:
40 Hz high-pass (24dB/oct) for 8ohm direct
