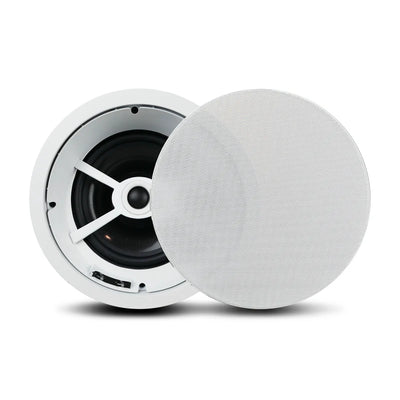

VIFA PRO ICT-1108-109-N-P-W

Product Name: 8" Angled LCR Ceiling Speaker

Impedance: 8 Ohms

Plenum Usage: Without Plenum

Transformer Taps: Without transformer

Frequency Range (-10dB): 70Hz–20kHz

Backcan: Without Backcan

Sensitivity: 89dB 1W/1m

Baffle/Rim: ABS baffle

Coverage Angle: 90° Angle

Input Connectors: Plastic spring connector

Color: White

Tap Selector: Without tap selector

Materials: ABS surface frame

Grille Color: White

Dimensions (Diameter & Depth): 10.8" × 5.7"

Net Weight: 2.8 kg (one speaker)

Shipping Weight: 3.8 kg ea; 11.5 kg (3 PCS in master carton)

Ceiling Cutout Size: 9-3/4"

Suspension / Safety-Seismic Attachment Points: Installer-friendly Dog Ear Installation Brackets

Power Rating: 2.5–60W

Maximum SPL (1m): 106dB continuous, 109dB peak

Recommended Protective High Pass: 50 Hz high-pass (24dB/oct) for 8ohm direct

Power Capacity (at low-Z): 60 Watts Continuous Program Power / 30 Watts Continuous Pink Noise

Drivers: 8" Graphite Woofer, Fixed at a 15° Angle, 1" Pivoting Aluminum Dome Tweeter
