Product details

More Information

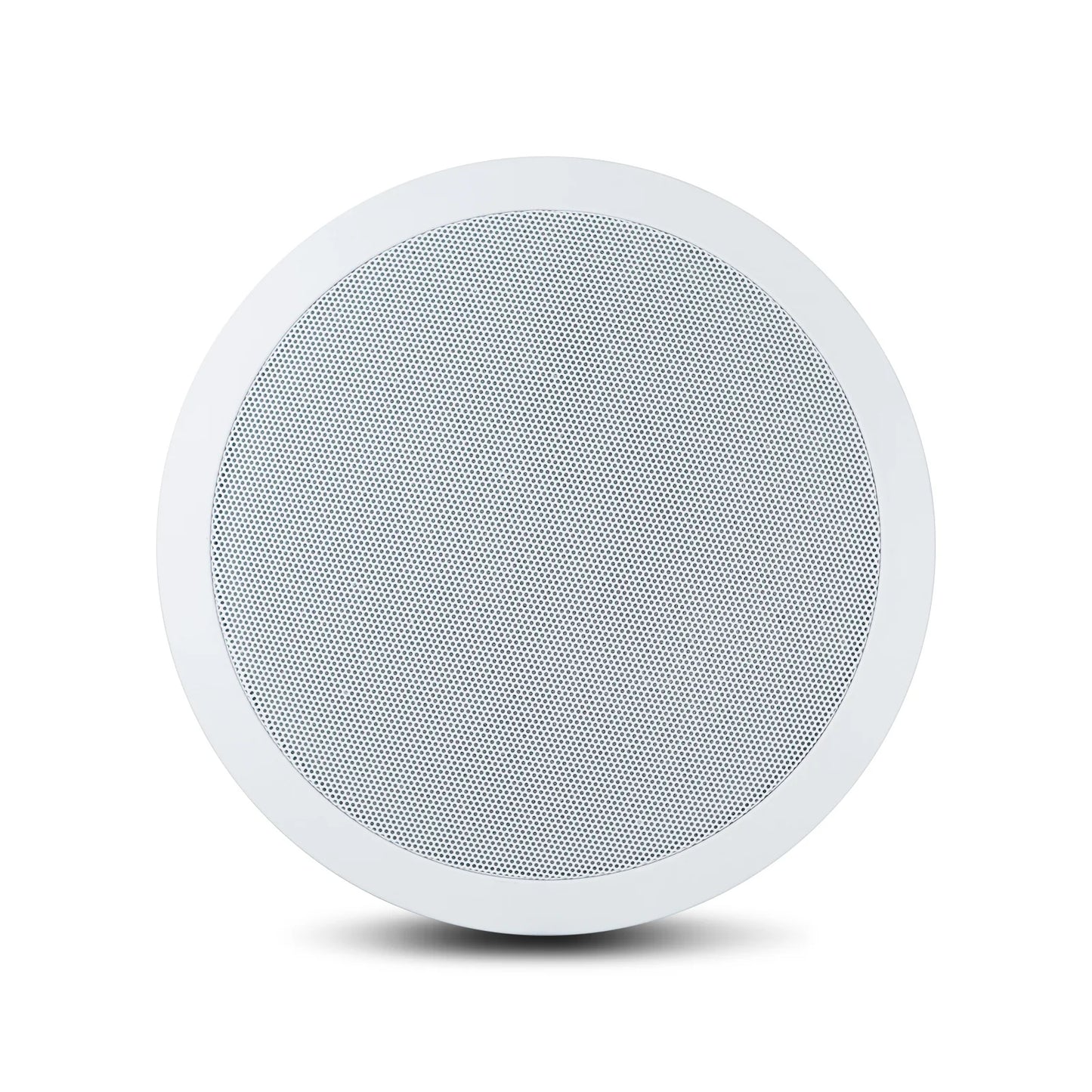

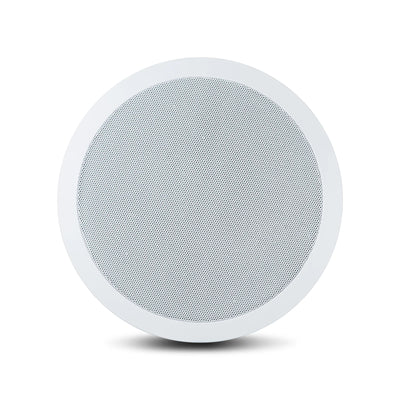

Color / Grille: White

Drivers:

8″ treated paper woofer

½″ Mylar dome tweeter

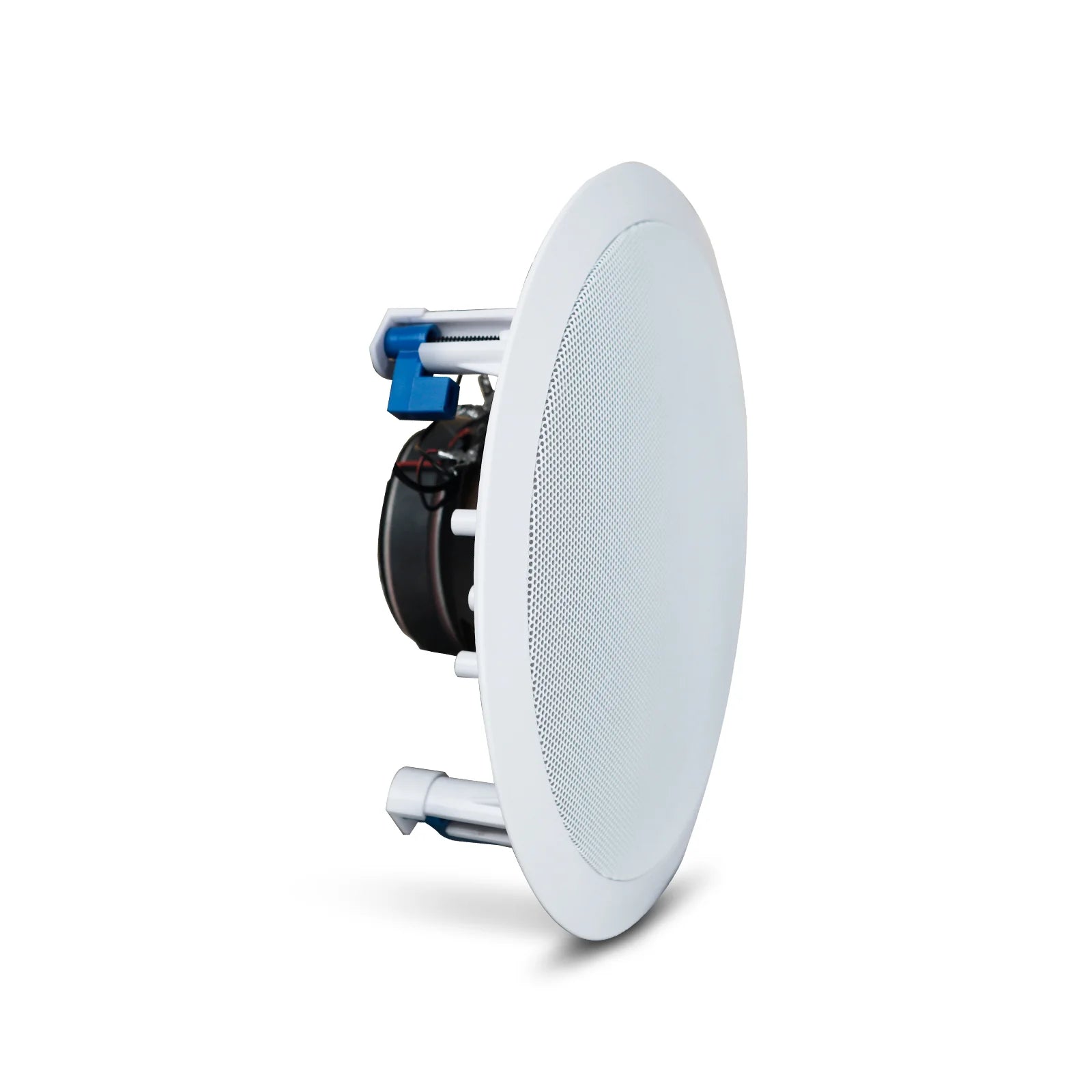

Mounting: Installer-friendly Dog Ear Brackets

Tap Selector: Pluggable strip conversion switch

Transformer Taps: 100V line: 24W / 12W / 6W integral multi-tap transformer

Construction: ABS baffle and surface frame

No Backcan or Plenum Usage



Technical Specifications

Impedance: 8 Ohms
Plenum Usage: Without Plenum
Transformer Taps: 100 V-line – 24W, 12W or 6W integral multi-tap transformer
Frequency Range (-10dB): 50Hz – 20kHz
Backcan: Without Backcan
Sensitivity: 89dB
Baffle/Rim: ABS baffle
Coverage Angle: 90° Angle
Input Connectors: “Easy Connect” terminal block simplifies installation
Color: White
Tap Selector: Pluggable strip conversion switch
Materials: ABS surface frame
Grille Color: White
Dimensions (Diameter & Depth): 9.31" × 3.7"
Net Weight: 1.6 kg (one speaker)
Shipping Weight: 2.0 kg ea; 17.5 kg (8 PCS in master carton)
Ceiling Cutout Size: 9.5"
Suspension / Safety-Seismic Attachment Points:
Installer-friendly Dog Ear Installation Brackets
Power Rating: 25–50 Watts
Maximum SPL (1m):
101dB continuous, 104dB peak
Recommended Protective High Pass:
40 Hz high-pass (24dB/oct) for 8ohm direct
Power Capacity (at low-Z): 50 Watts Continuous Program Power / 25 Watts Continuous Pink Noise
DRIVERS: 2-Way Coaxial Open Back, ½" Mylar dome Tweeter & 5¼" treated paper Woofer
