VIFA PRO Vistofte 05F105

Color / Grille: White

Design: Coaxial 2-way, open-back

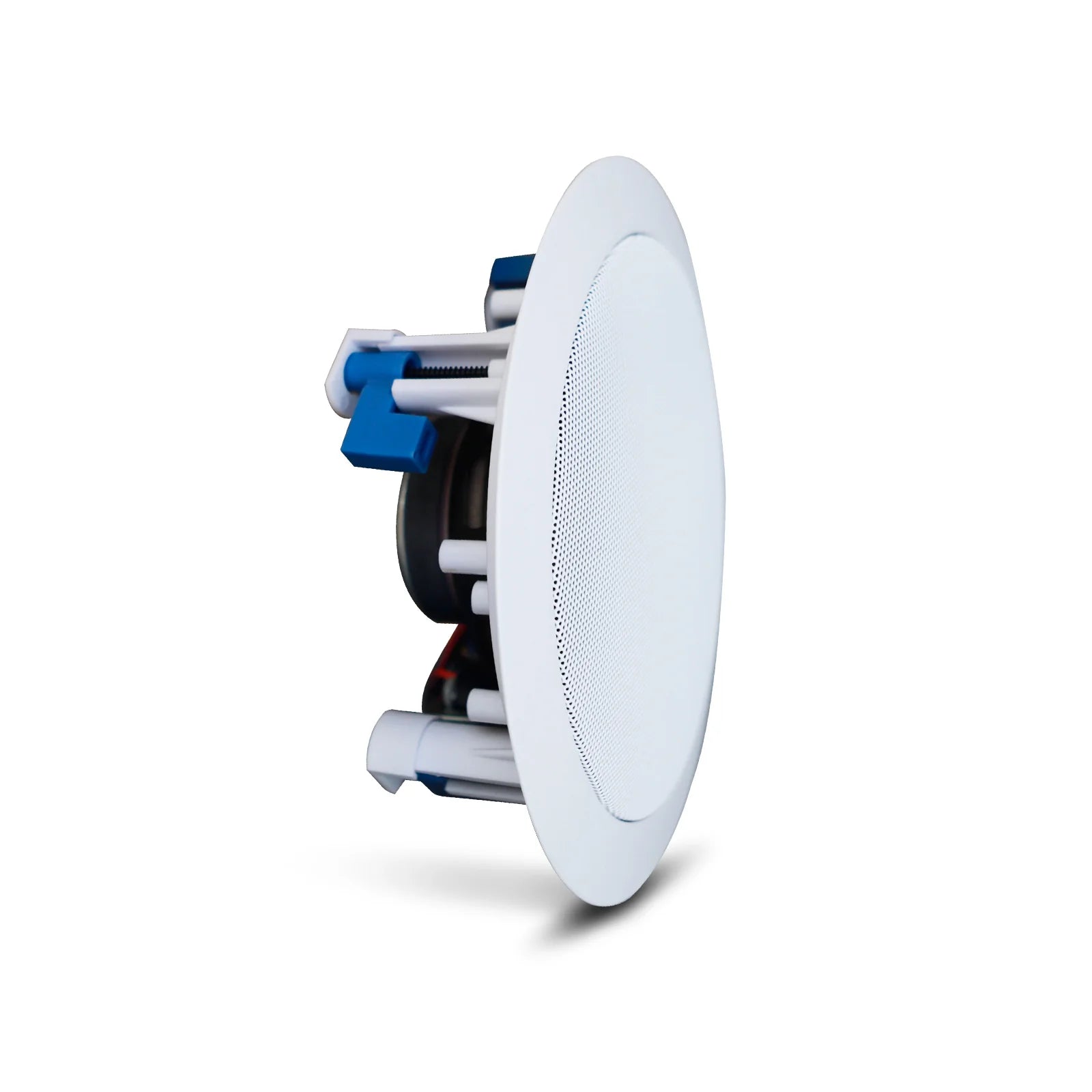

Mounting: Dog Ear Brackets for easy installation

Tap Selector: Pluggable strip for transformer tap selection

Transformer Taps: 100V line: 6W / 3W / 1.5W multi-tap transformer

Construction: Durable ABS surface frame and baffle

No Backcan or Plenum Usage

Impedance: 8 Ohms

Plenum Usage: Without Plenum

Transformer Taps: 100 V-line – 6W, 3W or 1.5W integral multi-tap transformer

Frequency Range (-10dB): 70Hz–20kHz

Backcan: Without Backcan

Sensitivity: 90dB 1W/1m

Baffle/Rim: ABS baffle

Coverage Angle: 90° Angle

Input Connectors: “Easy Connect” terminal block simplifies installation

Color: White

Tap Selector: Pluggable strip conversion switch

Materials: ABS surface frame

Grille Color: White

Dimensions (Diameter & Depth): 8.0" × 3.5"

Net Weight: 1.08 kg (one speaker)

Shipping Weight: 1.33 kg ea; 15.2 kg (12 PCS in master carton)

Ceiling Cutout Size: 6.65"

Suspension / Safety-Seismic Attachment Points: Installer-friendly Dog Ear Installation Brackets

Power Rating: 2.5–40W

Maximum SPL (1m): 102dB continuous, 105dB peak

Recommended Protective High Pass: 50 Hz high-pass (24dB/oct) for 8ohm direct

Power Capacity (at low-Z): 40 Watts Continuous Program Power / 20 Watts Continuous Pink Noise

Drivers: 2-Way Coaxial Open Back
