Product details

More Information

Color / Grille:
White

Mounting:

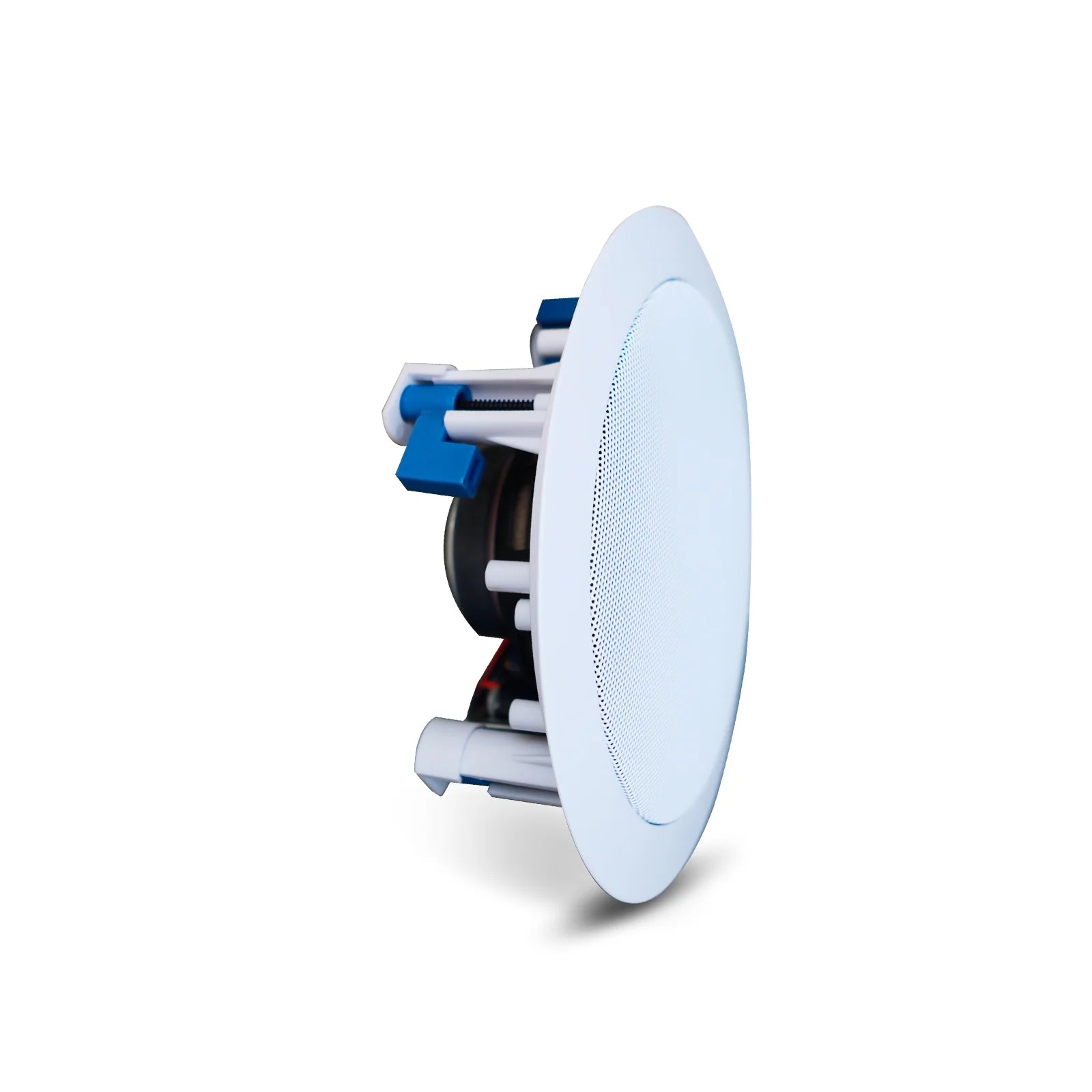

Installer-friendly Dog Ear Installation Brackets

Tap Selector:
Pluggable strip conversion switch

Backcan / Plenum:
Not included / Not rated for plenum usage

Transformer Taps:

100V-line: 6W / 3W / 1.5W multi-tap transformer



Technical Specifications

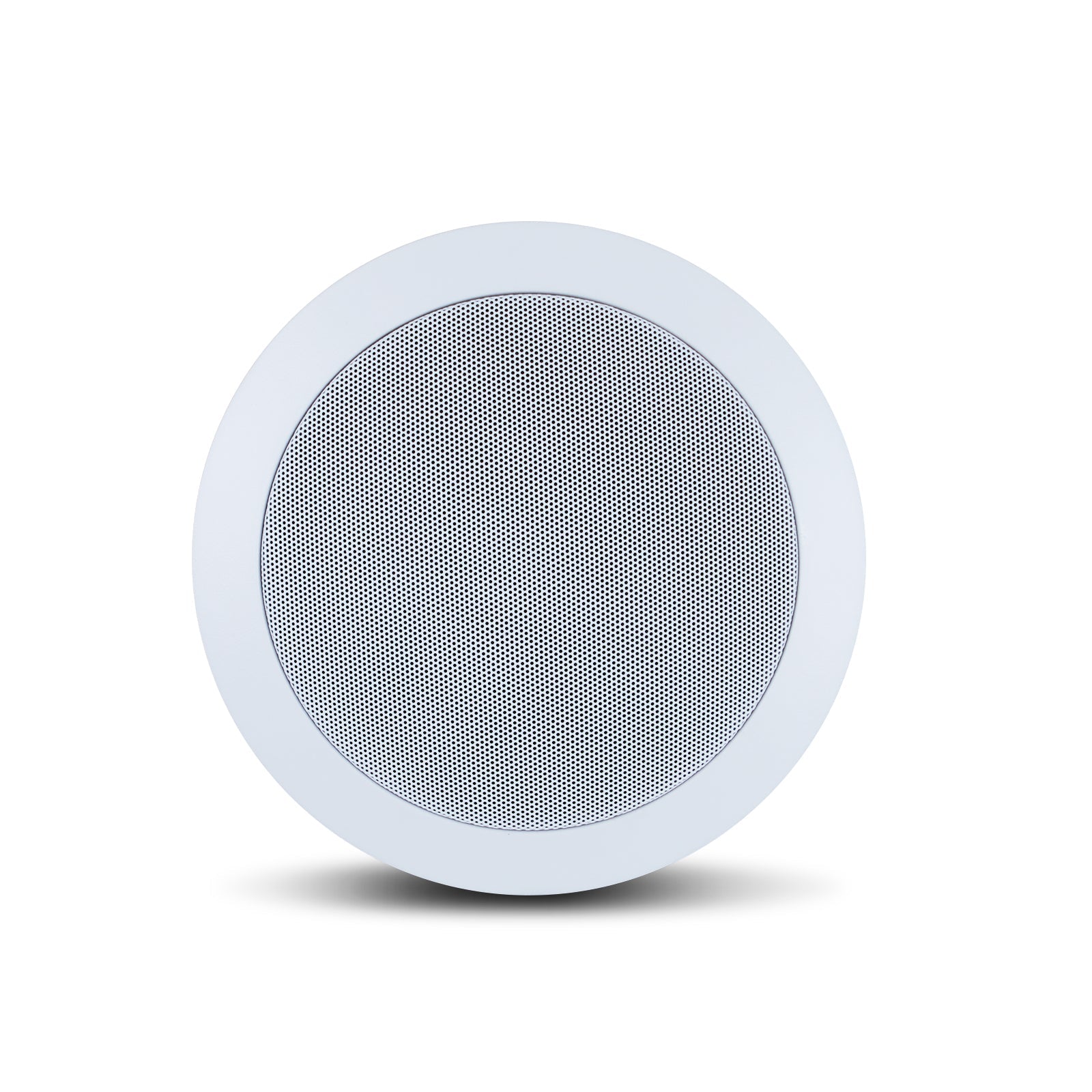

Product Name: 5¼" Ceiling Speaker

Impedance: 16 Ohms

Plenum Usage: Without Plenum

Transformer Taps: 100 V-line – 6W, 3W or 1.5W integral multi-tap transformer

Frequency Range (-10dB): 40Hz–18kHz

Backcan: Without Backcan

Sensitivity: 87dB 1W/1m

Baffle/Rim: ABS baffle

Coverage Angle: 90° Angle

Input Connectors: “Easy Connect” terminal block simplifies installation

Color: White

Tap Selector: Pluggable strip conversion switch

Materials: ABS surface frame

Grille Color: White

Dimensions (Diameter & Depth): 8.0" × 2.9"

Net Weight: 0.73 kg (one speaker)

Shipping Weight: 0.98 kg ea; 12.6 kg (12 PCS in master carton)

Ceiling Cutout Size: 6.65"

Suspension / Safety-Seismic Attachment Points: Installer-friendly Dog Ear Installation Brackets

Power Rating: 2.5–40W

Maximum SPL (1m): 98dB continuous, 101dB peak

Recommended Protective High Pass: 50 Hz high-pass (24dB/oct) for 8ohm direct

Power Capacity (at low-Z): 40 Watts Continuous Program Power / 20 Watts Continuous Pink Noise

Drivers: 5¼" Dual Cone, Open back driver
