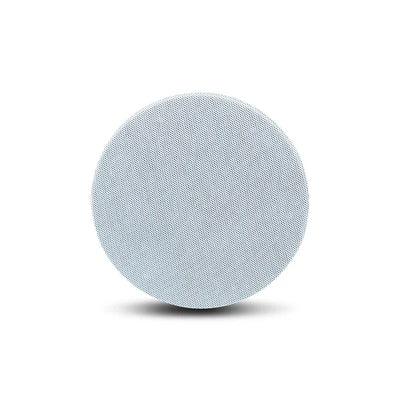

VIFA PRO Møllehøj 05N104

Full-Range Sound:
Wide frequency range of 75Hz – 20kHz for excellent voice and background music
reproduction.

Integrated Design: Includes ABS backcan and baffle for clean ceiling integration.

Easy

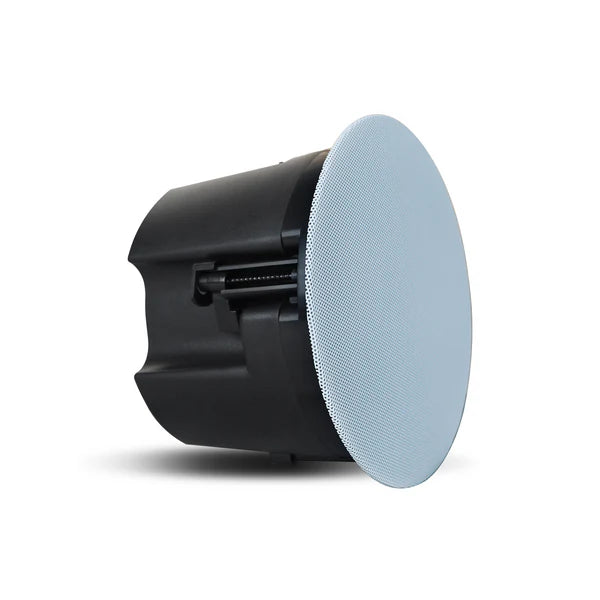

Installation: Dog Ear brackets and accessible rotary tap selector.

Multiple Power Taps: Supports 70V transformer taps (20W / 10W / 5W) and 8 Ohm mode.

Durable Construction: ABS frame and grille with gold-plated spring connectors.

Plenum Rated:
Safe for air-handling ceiling spaces (backcan included).

Color Options:
Black body with white grille.

Impedance: 8 Ohms

Plenum Usage: Yes, backcan included

Transformer Taps: 20W / 10W / 5W & 8 Ω

Frequency Range (-10dB): 75Hz–20kHz

Backcan: ABS

Sensitivity: 87dB 1w/1m

Baffle/Rim: ABS baffle

Coverage Angle: 90° Angle

Input Connectors: Gold-plated spring connector

Color: Black

Tap Selector: Rotary switch accessible from side of backcan

Materials: ABS surface frame, ABS backcan

Grille Color: White

Dimensions (Diameter & Depth):
7.83" × 4.25"

Net Weight: 1.4 kg (one speaker)

Shipping Weight: 1.8 kg ea; 11.8 kg (6 PCS in master carton)

Ceiling Cutout Size: 6.89"

Suspension / Safety-Seismic Attachment Points:
Installer-friendly Dog Ear Installation Brackets

Power Rating: 2.5–40W

Maximum SPL (1m):
101dB continuous, 104dB peak

Recommended Protective High Pass:
60 Hz high-pass (24dB/oct) for 8ohm direct

Power Capacity (at low-Z):
40 Watts Continuous Program Power / 20 Watts Continuous Pink Noise

DRIVERS:
5.25" Polypropylene Cone with Rubber Surround, 0.5" PEI Dome
