Product details

More Information

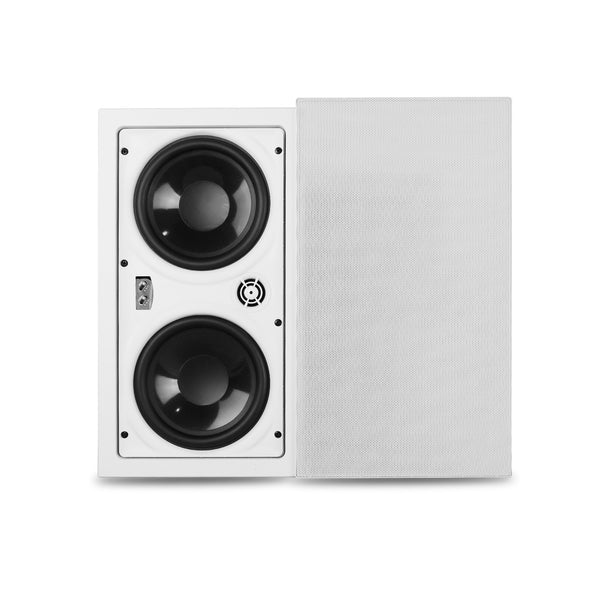

Dual Woofer Design: Equipped with two 6.5” graphite
woofers for enhanced bass output.

Wide Frequency Range: Covers 55Hz–20kHz with 90° angle dispersion.

Compact Yet Powerful: Fits snugly in-wall while producing up to 106dB peak SPL.

Flexible Tuning: ±3dB bass and treble contour switches allow customized sound.

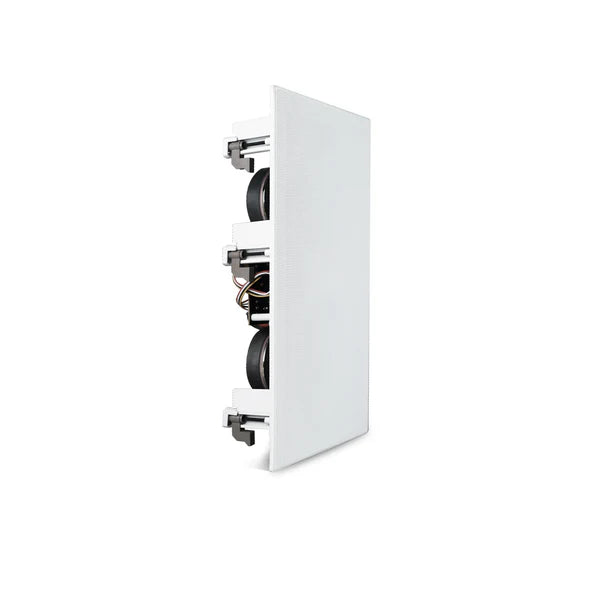

Durable Build: Crafted with ABS material and secure dog ear installation.

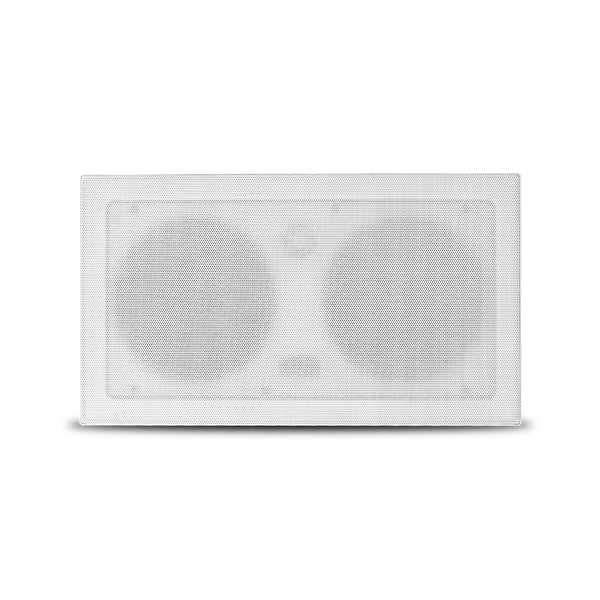

Clean Aesthetics: White grille and body blend seamlessly with most interiors.

Technical Specifications

Impedance: 8 Ohms
Plenum Usage: without plenum
Transformer Taps: without transformer
Frequency Range (-10dB): 55Hz–20kHz
Backcan: without backcan
Sensitivity: 86dB 1w/1m
Baffle/Rim: without baffle
Coverage Angle: 90° Angle
Input Connectors: Plastic spring terminal
Color: White
Tap Selector: ±3db Bass & 0hmsTreble Contour Switches
Materials: ABS
Grille Color: White
Dimensions (H × W × D):9" × 16-1/8" × 3"
Net Weight: 3.0 kg (one speaker)
Shipping Weight: 4.0 kg ea; 12.7 kg (3 PCS in master carton)
Wall Cutout Size: 7-1/2" × 14-1/2"
Suspension / Safety-Seismic Attachment Points: Installer-friendly Dog Ear Installation Brackets
Power Rating: 50W
Maximum SPL (1m): 103dB continuous, 106dB peak
Recommended Protective High Pass: 40 Hz high-pass (24dB/oct) for 8ohm direct
