UNIKA PRO 248
UNIKA PRO 248

UNIKA PRO 248

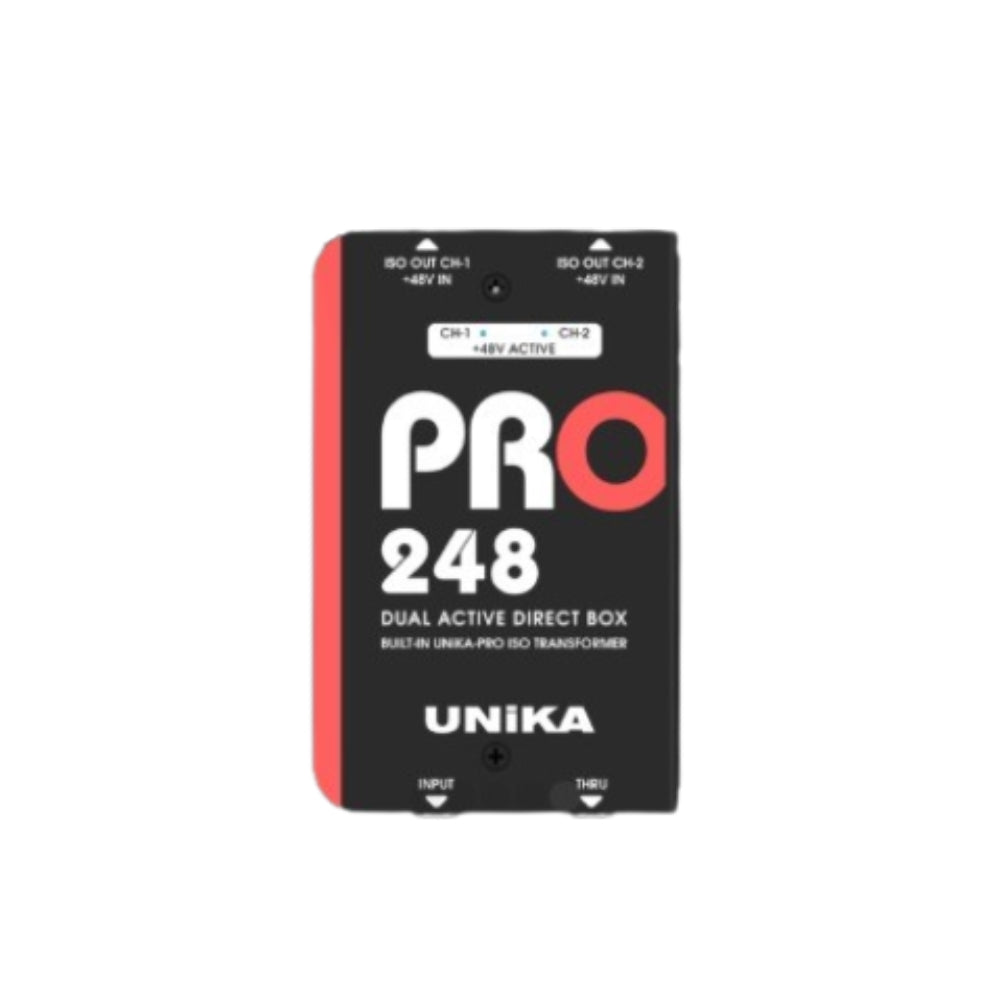

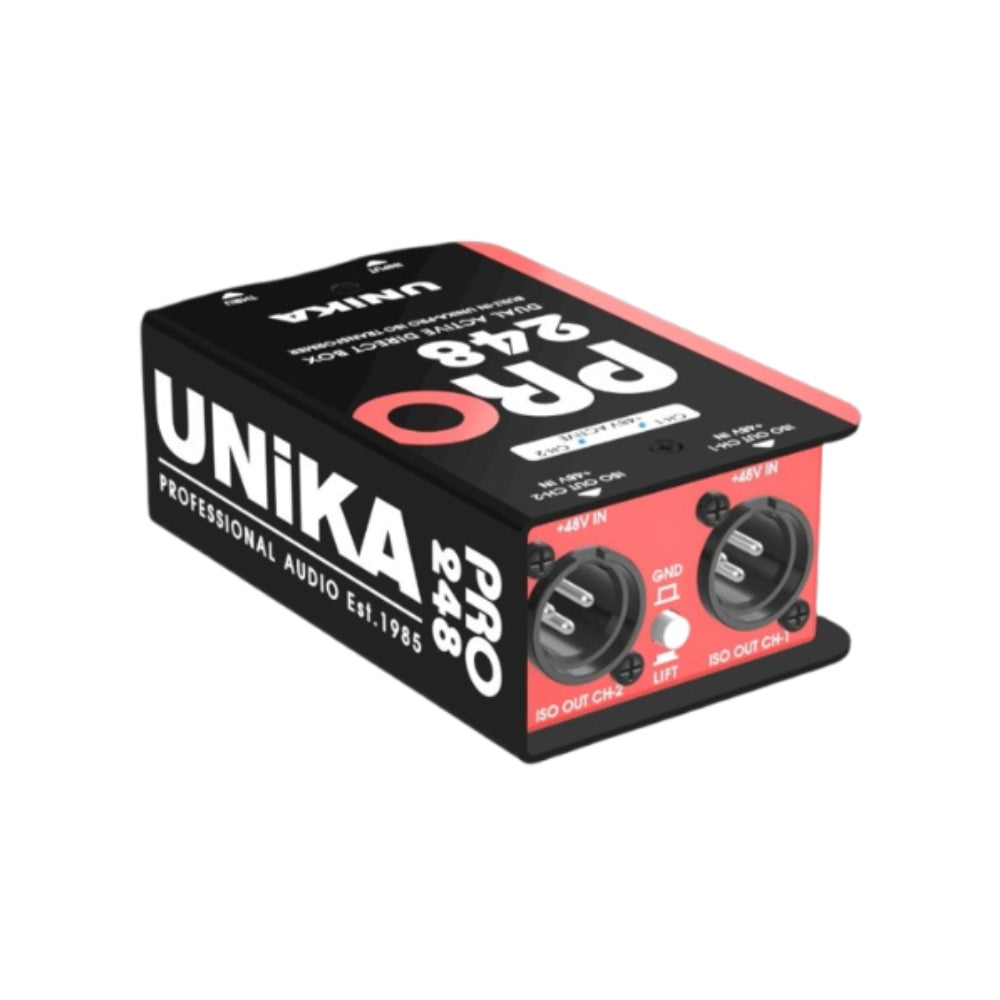

UNIKA PRO 248 is a professional dual-channel active DI box designed for instruments like electric guitar, bass, keyboards, and line-level sources. It converts high-impedance unbalanced signals into low-impedance balanced outputs, making it ideal for direct connection to mixers or audio interfaces. Powered via +48V phantom power, it eliminates the need for batteries while delivering clean, dynamic sound with excellent noise isolation. Its custom isolation transformers and high input impedance ensure rich harmonics, clarity, and minimal interference, making it suitable for both live sound and studio applications.

Enquire Now

Product details

More Information
  • Dual-channel active DI box (2 mono or 1 stereo input)
  • Operates on +48V phantom power (no battery required)
  • Built-in custom isolation transformers for improved sound quality
  • High input impedance (260kΩ) for better tonal response of instruments
  • 0 / -20 dB pad switch with LED for handling high-level signals
  • GND/LIFT switch to eliminate hum and ground loop noise
  • TRS input with THRU output for connecting to amplifiers simultaneously
  • Balanced XLR outputs for long cable runs with low noise
  • LED indicators for phantom power and pad status
  • Rugged metal chassis with anti-slip base for stage/studio use
Technical Specifications
  • Type: Active dual-channel DI box
  • Circuit: Low-noise op-amp with transformer-balanced output
  • Inputs: 2 × TRS
  • Thru Outputs: 2 × TRS
  • Outputs: 2 × XLR (transformer balanced)
  • Pad: 0 / -20 dB switch with LED
  • Power Supply: +48V phantom power
  • Input Impedance: 260 kΩ (0dB), 50 kΩ (-20dB)
  • Output Impedance: 50 Ω
  • Max Input Level: +10 dB
  • Max Output Level: +10 dB
  • Frequency Response: 20 Hz – 20 kHz
  • S/N Ratio: >95 dB
  • THD: <0.02% @ 1kHz
  • Transformer Ratio: 1:1 + 1:1
  • Chassis: Steel (1.6mm / 1.2mm)
  • Dimensions: 78 × 124 × 46 mm
  • Weight: ~0.66 kg
