UNIKA PRO 148
UNIKA PRO 148

UNIKA PRO 148

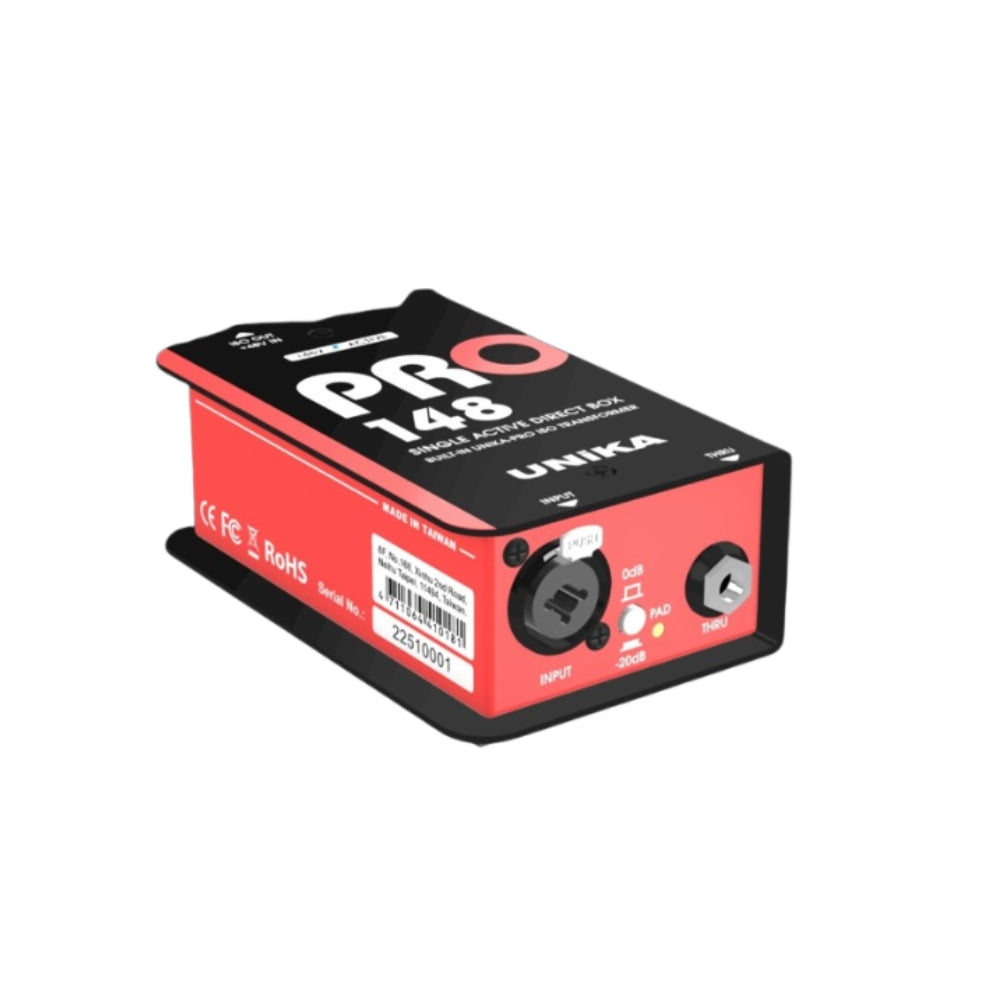

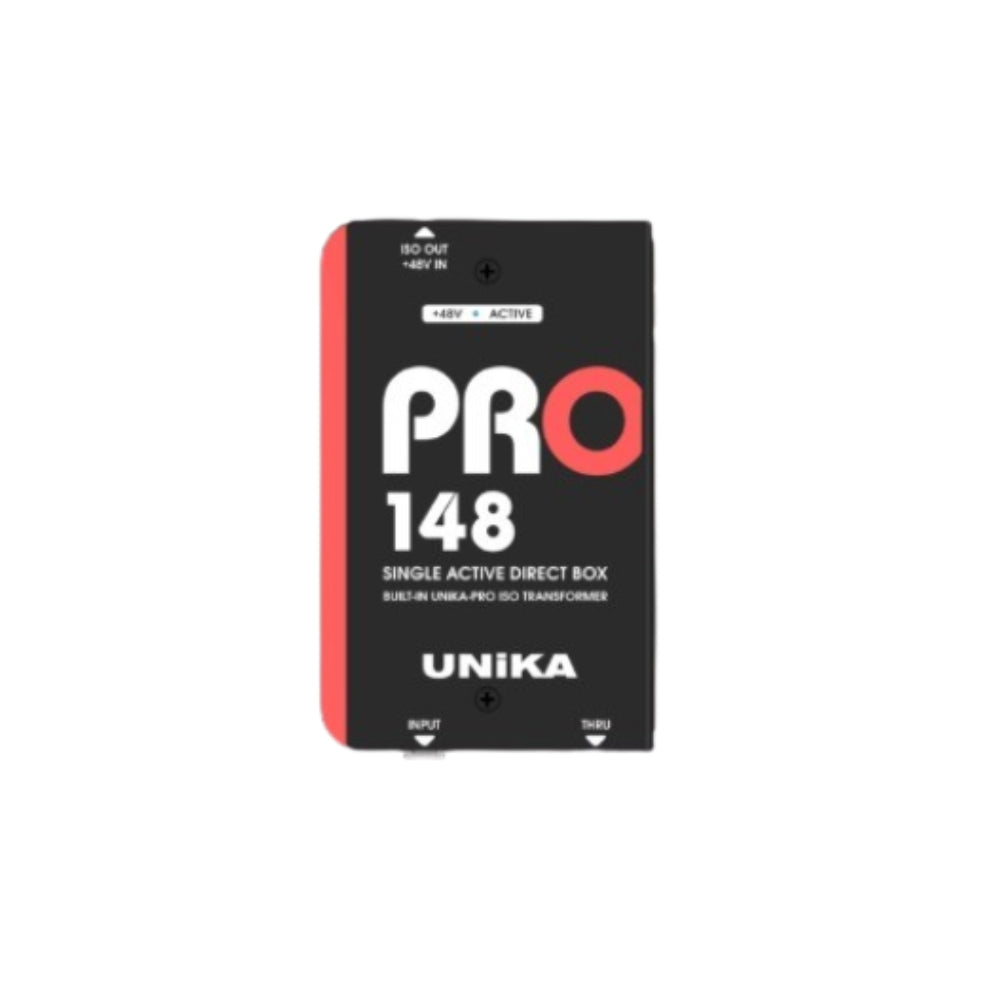

UNIKA PRO 148 is a professional single-channel active DI box designed primarily for electric guitar, bass, and other high-impedance instruments. It converts unbalanced signals into balanced low-impedance outputs for direct connection to mixers or preamps. Powered via +48V phantom power, it eliminates the need for batteries while ensuring consistent performance. With its custom isolation transformer and high input impedance, the PRO 148 delivers clean, dynamic sound with rich harmonics and minimal noise, making it ideal for live sound, studio recording, and fixed installations.

Enquire Now

Product details

More Information
  • Single-channel active DI box
  • Operates on +48V phantom power (no battery required)
  • Built-in UNiKA custom isolation transformer for superior audio quality
  • High input impedance (260kΩ) for better tonal response of instruments
  • 0 / -20 dB pad switch with LED for handling high-level signals
  • GND/LIFT switch to eliminate hum and ground loop noise
  • Combo input (XLR/TRS) for balanced & unbalanced sources
  • TRS thru output for linking to amplifier
  • Balanced XLR output for long cable runs with low noise
  • LED indicators for phantom power and pad status
  • Rugged steel chassis suitable for stage and touring use
Technical Specifications
  • Type: Active single-channel DI box
  • Circuit: Low-noise op-amp with transformer-balanced output
  • Input: 1 × XLR/TRS combo
  • Thru Output: 1 × TRS
  • Output: 1 × XLR (balanced via transformer)
  • Pad: 0 / -20 dB switch with LED
  • Power Supply: +48V phantom power
  • Input Impedance: 260 kΩ (0dB), 50 kΩ (-20dB)
  • Output Impedance: 50 Ω
  • Max Input Level: +10 dB
  • Max Output Level: +10 dB
  • Frequency Response: 20 Hz – 20 kHz (+0.3 / +0.6 dB)
  • S/N Ratio: >95 dB
  • THD: <0.02% @ 1 kHz
  • Transformer Ratio: 1:1 + 1:1
  • Chassis: Steel (1.6mm / 1.2mm)
  • Dimensions: 78 × 124 × 46 mm
  • Weight: ~0.56 kg
