Product details

More Information

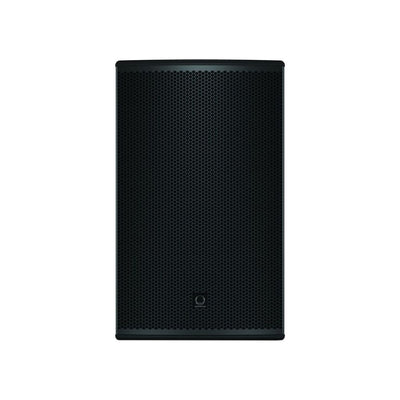

  • 2-way full-range loudspeaker designed for portable PA applications
  • 500W continuous power handling and 2000W peak power capacity
  • Suitable for FOH, side-fill, and monitor applications
  • Equipped with a carbon-fiber loaded 15" low-frequency driver with inside/outside coil design
  • Features an aluminum dome 1" neodymium motor compression driver
  • Low-distortion waveguide provides 70° x 70° (H x V) dispersion
  • Constructed with a durable 15 mm (5/8") birch plywood enclosure
  • Finished with hard-wearing semi-matte black paint
  • Rugged powder-coated perforated steel mesh grille for enhanced protection
  • Integral 35mm pole mount and ergonomic handles for easy installation and transport
  • Multiple internal rigging points for bracket mounting and suspension in any orientation
  • Neutrik speakON NL4 connectors ensure reliable long-life operation
Technical Specifications
  • Frequency Response (±3 dB): 50 Hz – 18 kHz
  • Frequency Range (-10 dB): 45 Hz – 20 kHz
  • Nominal Dispersion: 70° x 70° (H x V) @ -6 dB points
  • Directivity Factor (Q): 9.4
  • Directivity Index (DI): 9.7
  • Power Handling:Passive: 500 W continuous / 2000 W peakBi-Amp LF: 500 W continuous / 2000 W peakBi-Amp HF: 40 W continuous / 160 W peak
  • Sensitivity: 96 dB (1 W @ 1 m)
  • Maximum SPL:Passive: 124 dB continuous / 130 dB peakBi-Amp LF: 124 dB continuous / 130 dB peakBi-Amp HF: 122 dB continuous / 128 dB peak
  • Nominal Impedance:Passive: 8 OhmsBi-Amp LF: 8 OhmsBi-Amp HF: 8 Ohms
  • Crossover Type: Passive / Bi-Amp switchable
  • LF Driver: 1 x 15" (394 mm) low-frequency driver
  • HF Driver: 1 x 1" (25 mm) compression driver
