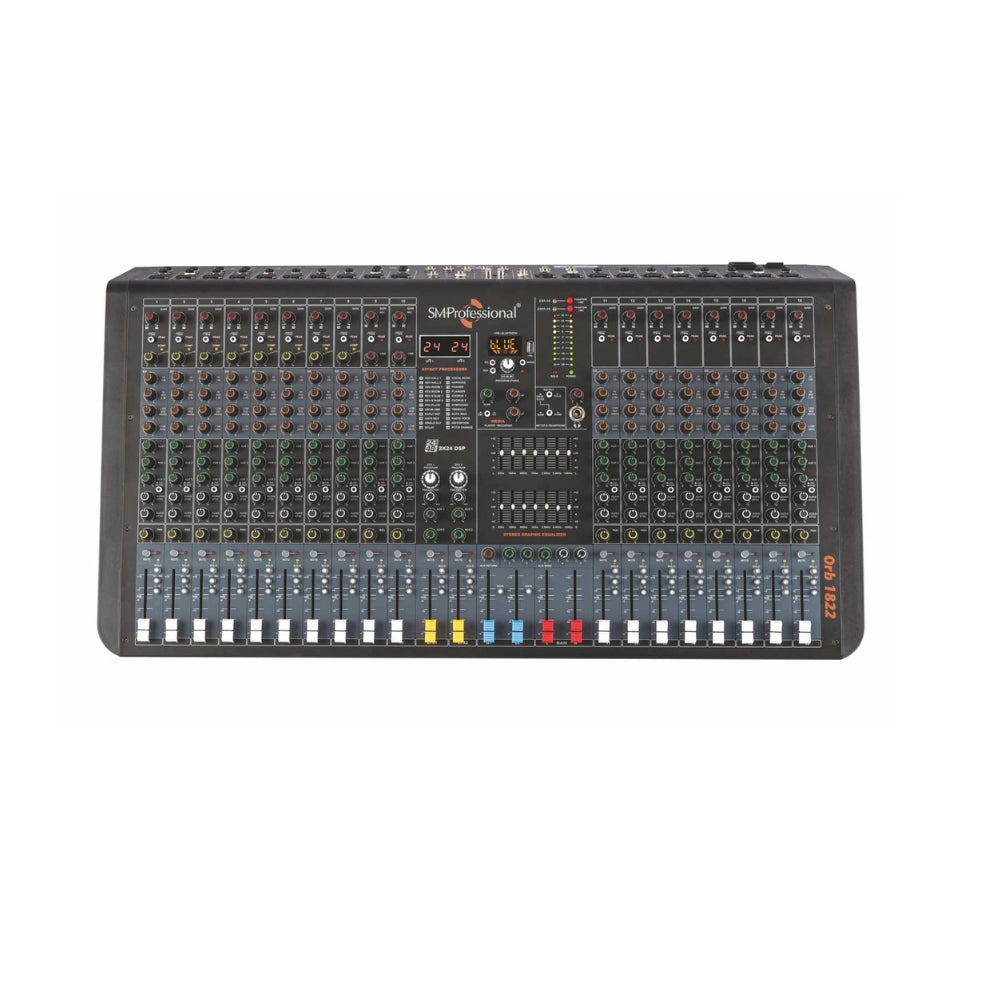

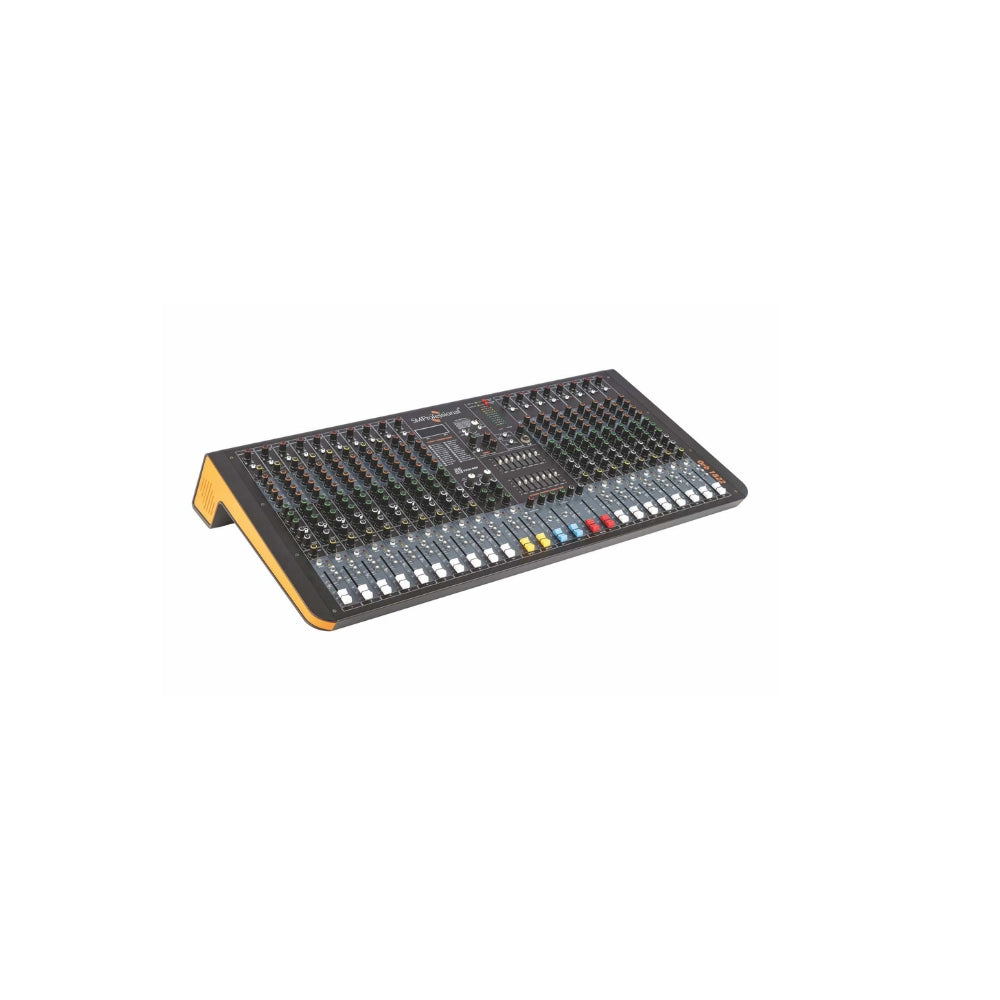

STUDIOMASTER Orb 1882

 Professional audio mixing consoles with 18 mic / 20 line inputs.

•   MON:Ster (mono-stereo) inputs for full flexibility.

•   One Knob Compressor on channels 1-8.

•   Ultra low-noise preamps with wide headroom and dynamic range.

•   Dual multi-EFX processor with 24 DSP presets and editable parameters.

•   Provisions to route EFX to monitor via Aux 1 and Aux 2.

•   Built-in USB MP3 media player and recorder with Bluetooth.

•   Level control, 2-band EQ with internal/external media input selection.

•   75Hz low cut on mono channels.

•   4-band EQ on all inputs.

•   5 Aux sends – Aux 1-3 (with pre/post selection) and Aux 4-5 (post only).

•   Stereo AUX returns.

•   Balanced XLR and ¼” jack main outputs.

•   2 sub groups with individual ¼” outputs.

•   Insert (send/return) on first 4 mono channels and main output.

•   Mute, solo, group (G1-G2) and main (L-R) routing per channel.

•   Peak, comp, mute and solo LEDs per channel.

•   Stereo RCA input and record output.

•   Headphone output with level control.

•   Globally switched +48V Phantom power supply.

•   Responsive 60mm faders.

•   7-band stereo graphic equalizer on main output.

•   Dual 10-segment LED meter for main, group and solo outputs.

•   Ergonomic angled-design for better visibility.

•   Clutter-free rear panel input and output connectivity.
