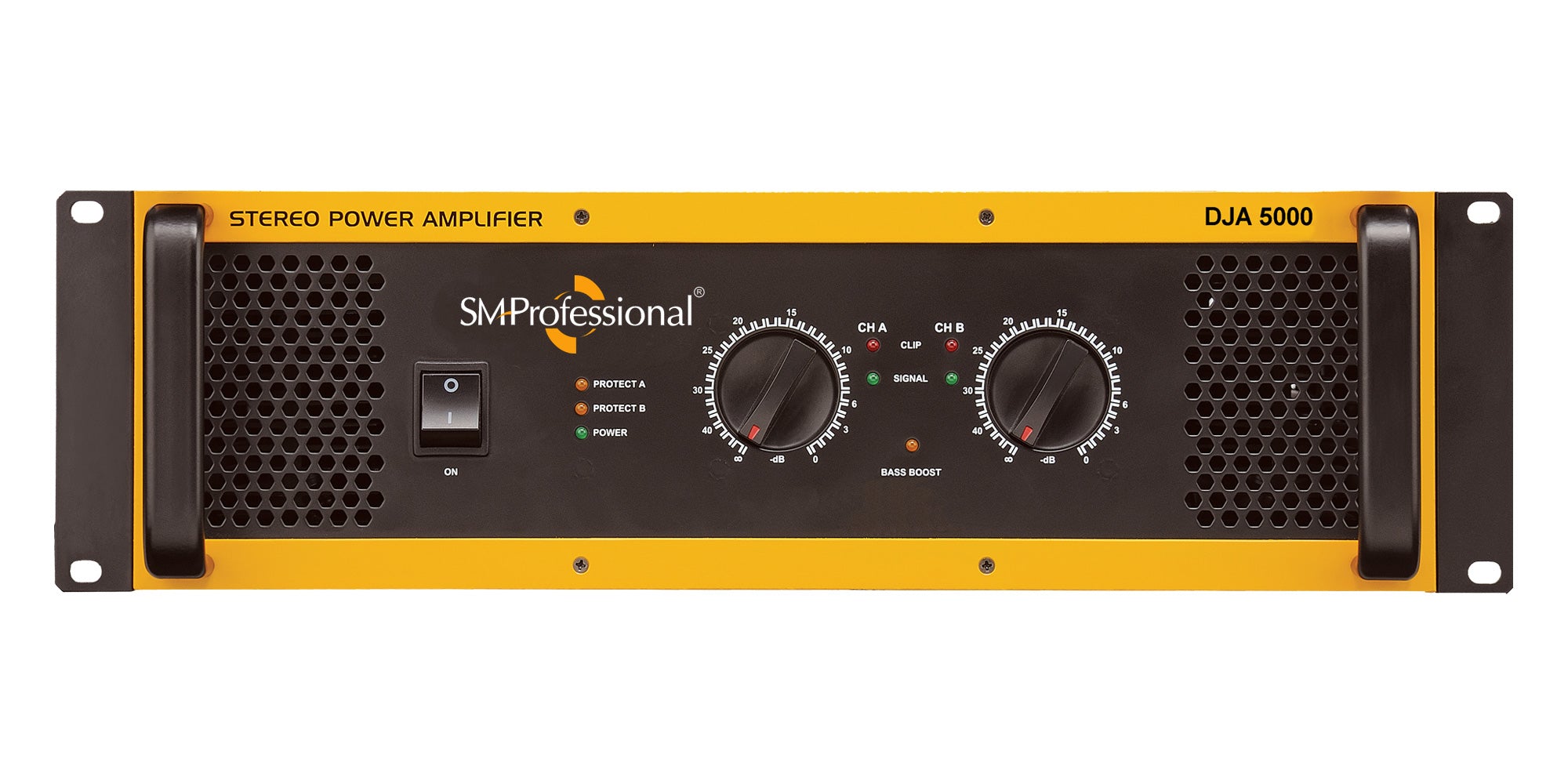

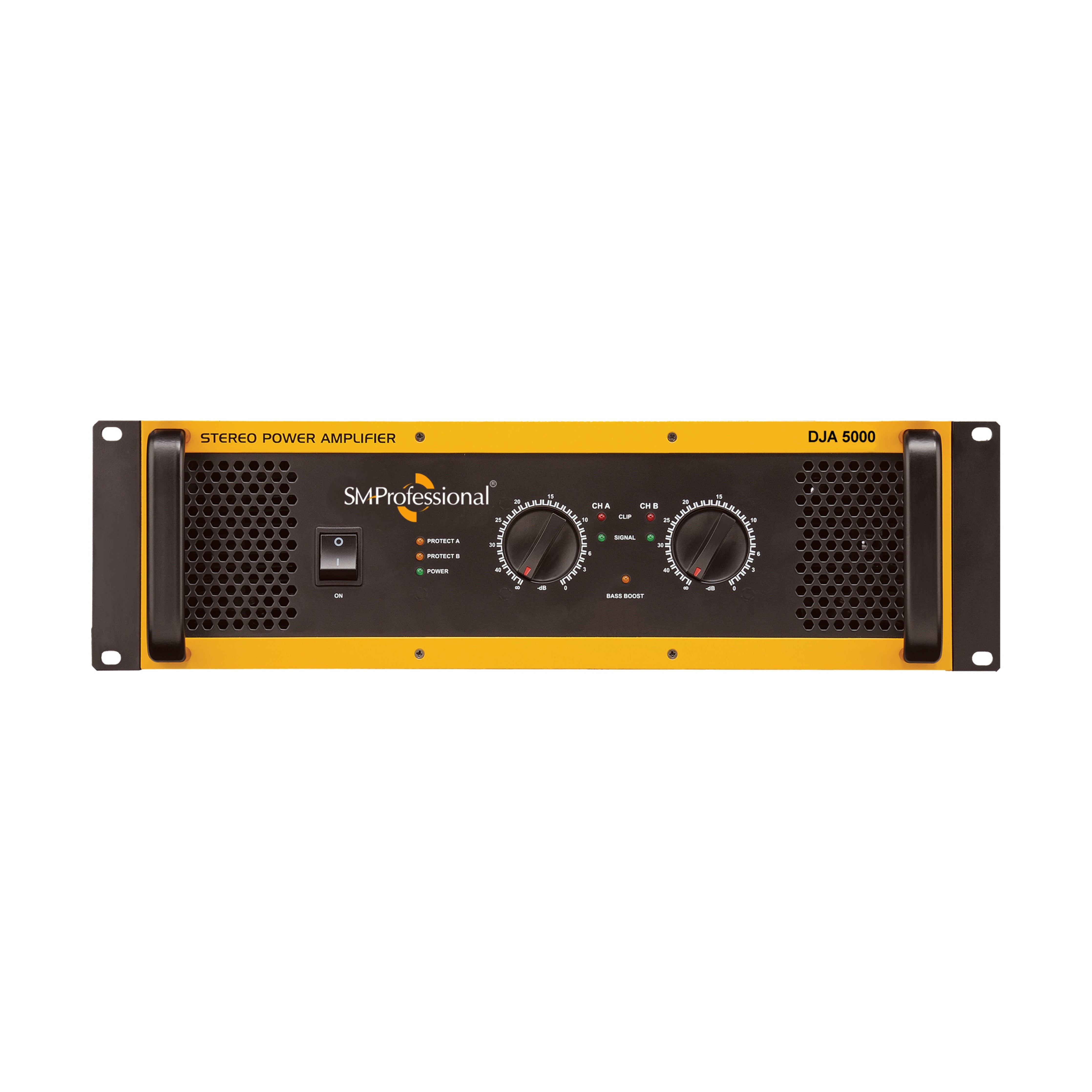

SM PROFESSIONAL DJA 5000

•  Rugged & Reliable Professional Stereo Power Amplifier.

•  Input: Balanced XLR & 1/4” Jack.

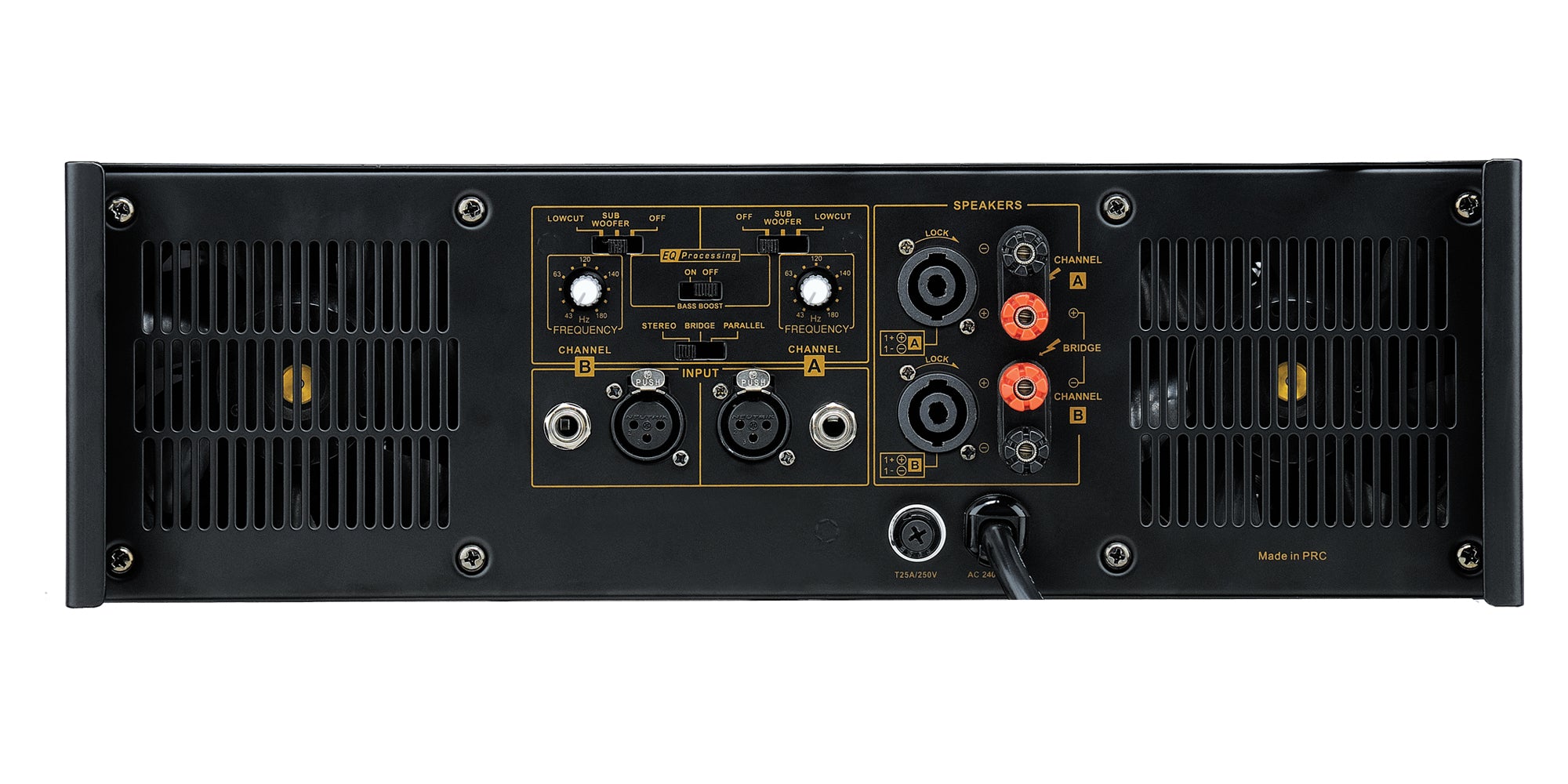

•  EQ Processing, Low Cut, Subwoofer selection options on rear panel.

•  Stereo, Bridge & Parallel mode selection switch.

•  Protection: Temperature, DC Short Circuit.

•  Large cooling Fans.

•  LED Indicators on front panel for power, Signal, Clip, bass boost & Protect.

•  Mains voltage operation 220V AC-240V AC as well as low voltage  operation (150V AC).

•  Output: Speakon & Binding Post Connectors.

•  19” rack mountable.

POWER OUTPUT-

4 Ω (True RMS),20Hz-20kHz,1% THD

2 x 1900 W

4 Ω (EIA), 1kHz , 1%THD

2 x 2500 W

8 Ω (True RMS),20Hz-20kHz,1% THD

2 x 1200 W

8 Ω (EIA), 1kHz , 1%THD

2 x 1400 W

BRIDGED MODE-

8 Ω (True RMS), 20Hz-20kHz, 1% THD

3800 W

8 Ω (EIA), 1kHz , 1%THD_

5000 W

Damping factor

> 350 :1 (8 Ω)

Frequency Response

20Hz – 20kHz (-3dB)

Protection Devices

Temperature, DC, Short Circuit, Soft Start

Input Connector (Per Channel)

XLR, 1/4” TRS Jack

Output Connector (Per Channel)

Speakon / Binding Posts

Dimensions (W x D x H)mm

482 x 530 x 132 (3U)

Net Weight (Kgs.)

32
