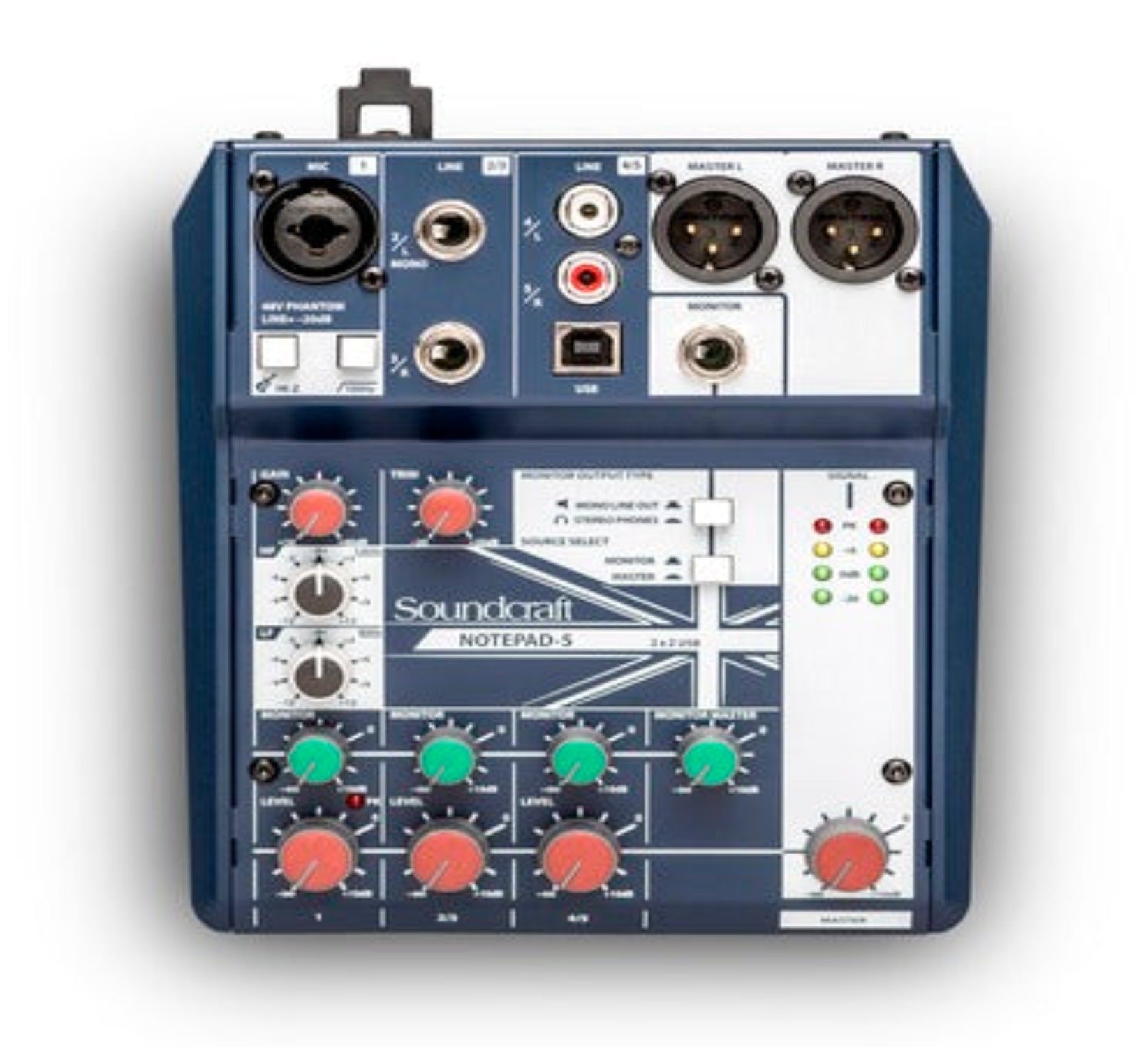

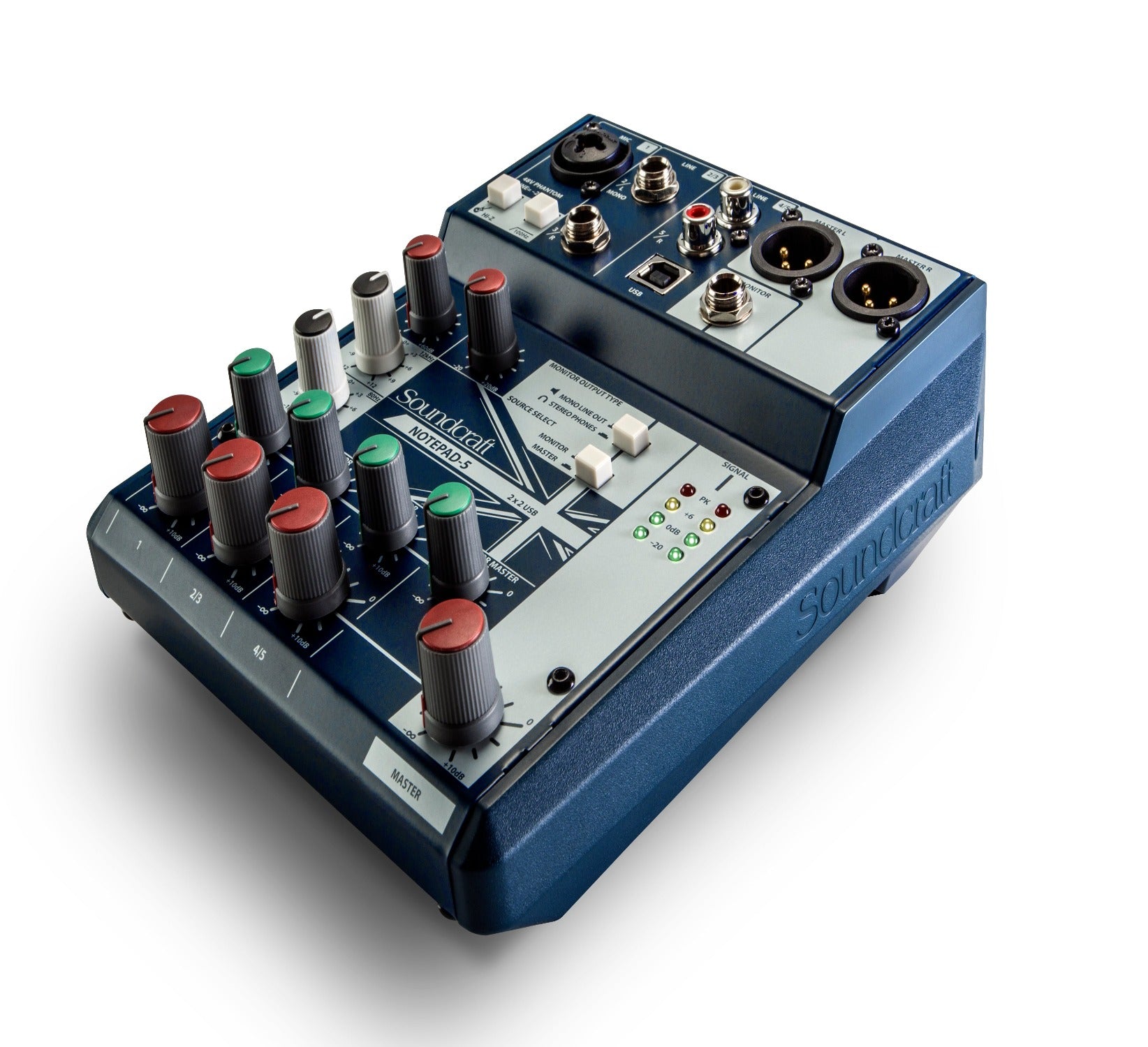

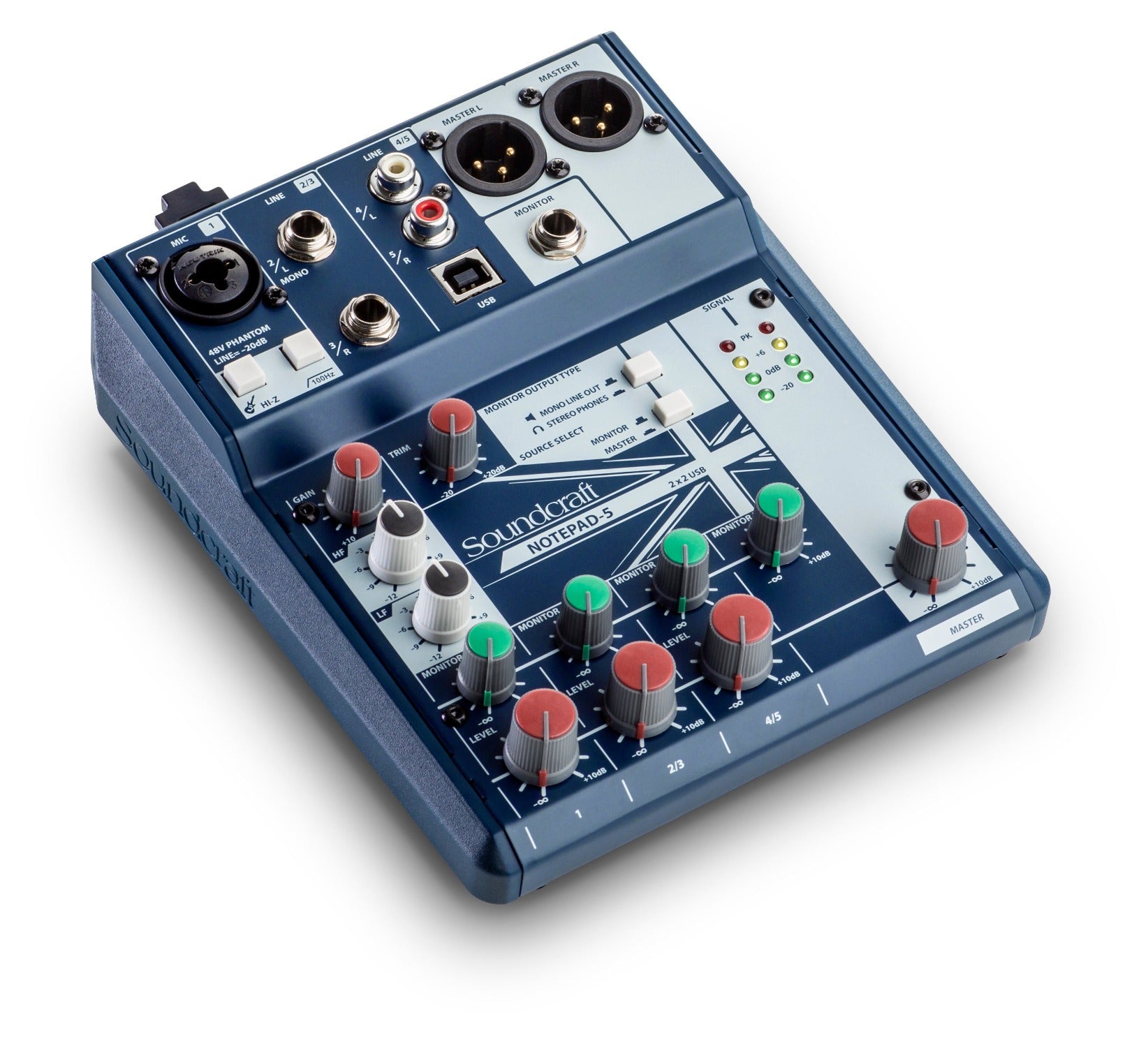

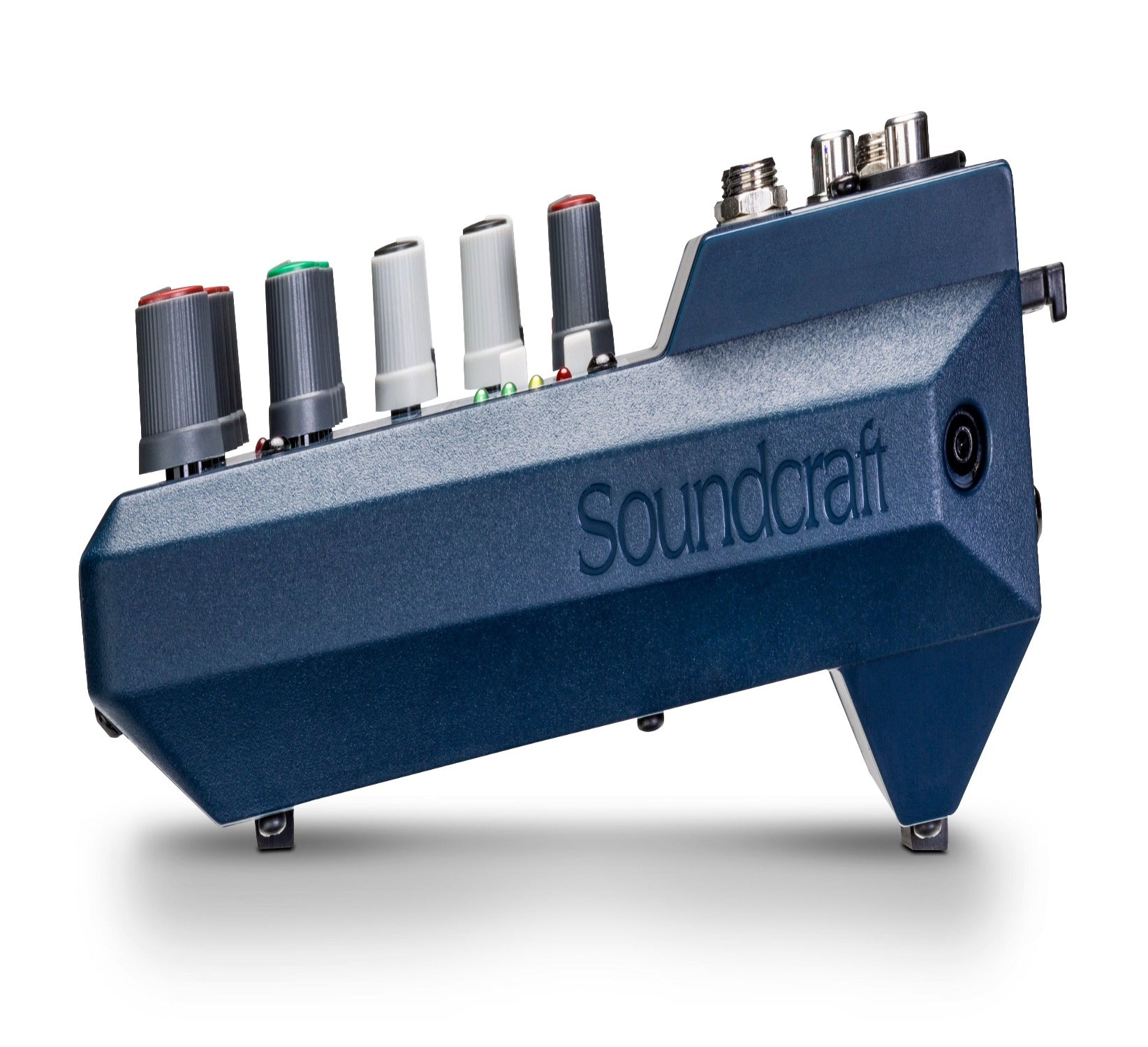

The Notepad-5 mixer makes it easy to get legendary Soundcraft sound for your music, podcasts or videos. The Notepad-5 combines professional-grade analog components and a built-in USB audio interface to use with your favorite Mac or PC editing software. Whether you’re a singer-songwriter or a podcaster, Notepad mixers offer best-in-class features like renowned Soundcraft mic preamps, so you can bring a level of polish to your creative productions that’s sure to impress.

More Information


  • Get legendary Soundcraft quality from professional microphone preamps
  • Easily record, edit and playback from your Mac and PC with an integrated USB audio interface—simply plug-and-play with your Mac*
  • Getting a great mix is easy with a familiar channel strip layout that includes EQ, aux send, master level and rotary headphone volume control
  • Ducking makes sure your audience hears you loud and clear by automatically lowering background music when you speak
  • Durable metal enclosure that’s built-to-last

*PC requires Soundcraft driver installation

Technical Specification

  • Type:Analog Mixer with USB interface
  • Channels:5
  • Computer Connectivity:USB
  • Inputs - Mic Preamps:1 x XLR-1/4" combo
  • Phantom Power:Yes
  • Inputs - Line:2 x 1/4", 1 x Dual RCA Stereo
  • Outputs - Main:2 x XLR (master), 1 x 1/4" (monitor)
  • Aux Sends:1 x monitor
  • Headphones:1 x 1/4" (shared with monitor)
  • USB:1 x Type B
  • EQ Bands:2-band EQ
  • Automation:Yes, Ducking Volume control
  • OS Requirements - Mac:OS X 10.10 or later
  • OS Requirements - PC:Windows 7 SP1 or later (with Soundcraft driver)
  • Power Source:External power supply
  • Height:3.5"
  • Width:8.9"
  • Depth:10.2"
  • Weight:2.0 lbs.
