SOUNDCRAFT Notepad-12FX
SOUNDCRAFT Notepad-12FX

SOUNDCRAFT Notepad-12FX

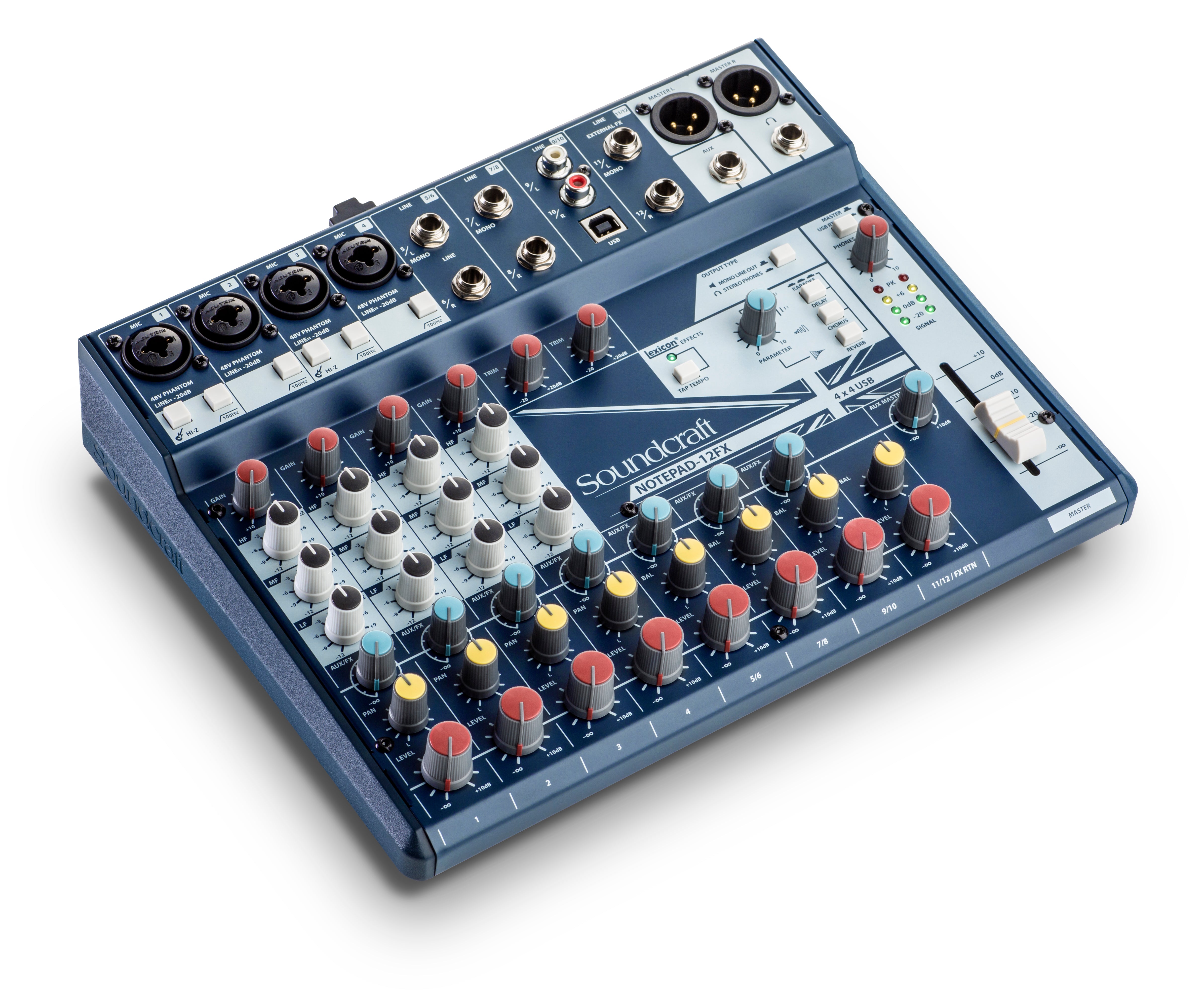

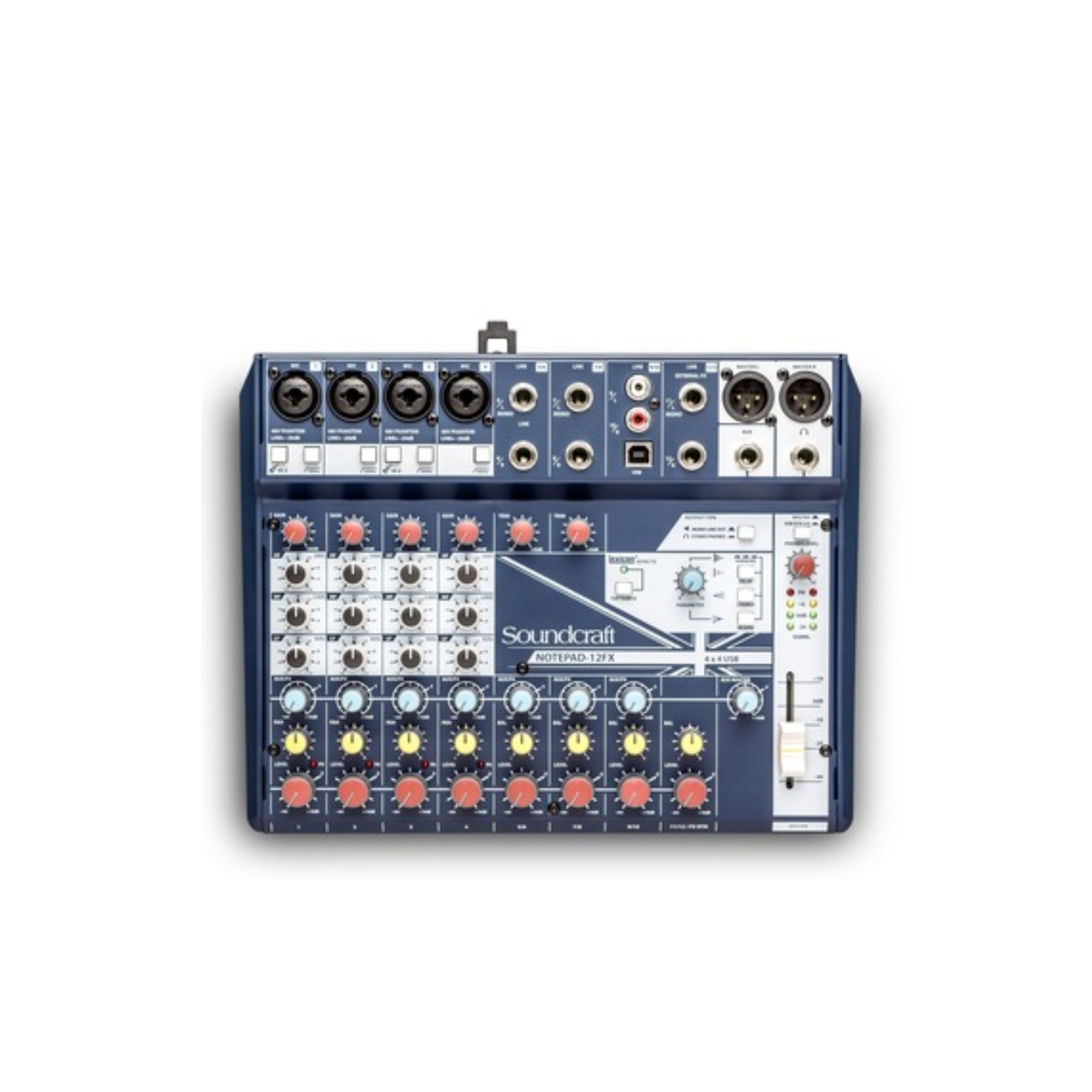

The Notepad-12FX 12-channel mixer makes it easy to get legendary Soundcraft sound for your music, podcasts or videos. The Notepad-12FX combines professional-grade analog components, renowned HARMAN digital signal processing and a built-in USB audio interface to use with your favorite Mac or PC editing software. Whether you’re a singer-songwriter or a podcaster, the Notepad-12FX mixer offers best-in-class features like Lexicon® effects, so you can bring a level of polish to your creative productions that’s sure to impress.

Enquire Now

Product details

More Information
  • Get legendary Soundcraft quality from professional microphone preamps
  • Easily record, edit and playback from your Mac and PC with an integrated USB audio interface—simply plug-and-play with your Mac*
  • Sweeten your mix with HARMAN digital signal processing including iconic Lexicon reverb, echo and delay
  • Getting a great mix is easy with a familiar channel strip layout that includes EQ, aux send, master fader level and rotary headphone volume control
  • Ducking makes sure your audience hears you loud and clear by automatically lowering background music when you speak
  • Durable metal enclosure that’s built-to-last

*PC requires Soundcraft driver installation

Technical Specifications
  • Type:Analog Mixer with USB interface
  • Channels:12
  • Computer Connectivity:USB
  • Faders:1 x master fader
  • Inputs - Mic Preamps:4 x XLR-1/4" combo (mic/line, 2 x Hi-Z)
  • Phantom Power:Yes
  • Inputs - Line:4 x 1/4" (2 x stereo), 1 x Dual RCA Stereo
  • Inputs - Other:2 x 1/4" (line/FX return)
  • Outputs - Main:2 x XLR (master)
  • Aux Sends:1 x 1/4" (Aux/FX)
  • Headphones:1 x 1/4"
  • USB:1 x Type B
  • EQ Bands:3-band EQ
  • Effects:Lexicon Delay, Chorus, Reverb
  • Automation:Yes, Ducking Volume control
  • OS Requirements - Mac:OS X 10.10 or later
  • OS Requirements - PC:Windows 7 SP1 or later (with Soundcraft driver)
  • Power Source:18V power supply (included)
  • Height:3.5"
  • Width:13.4"
  • Depth:11.9"
  • Weight:5.1 lbs.
