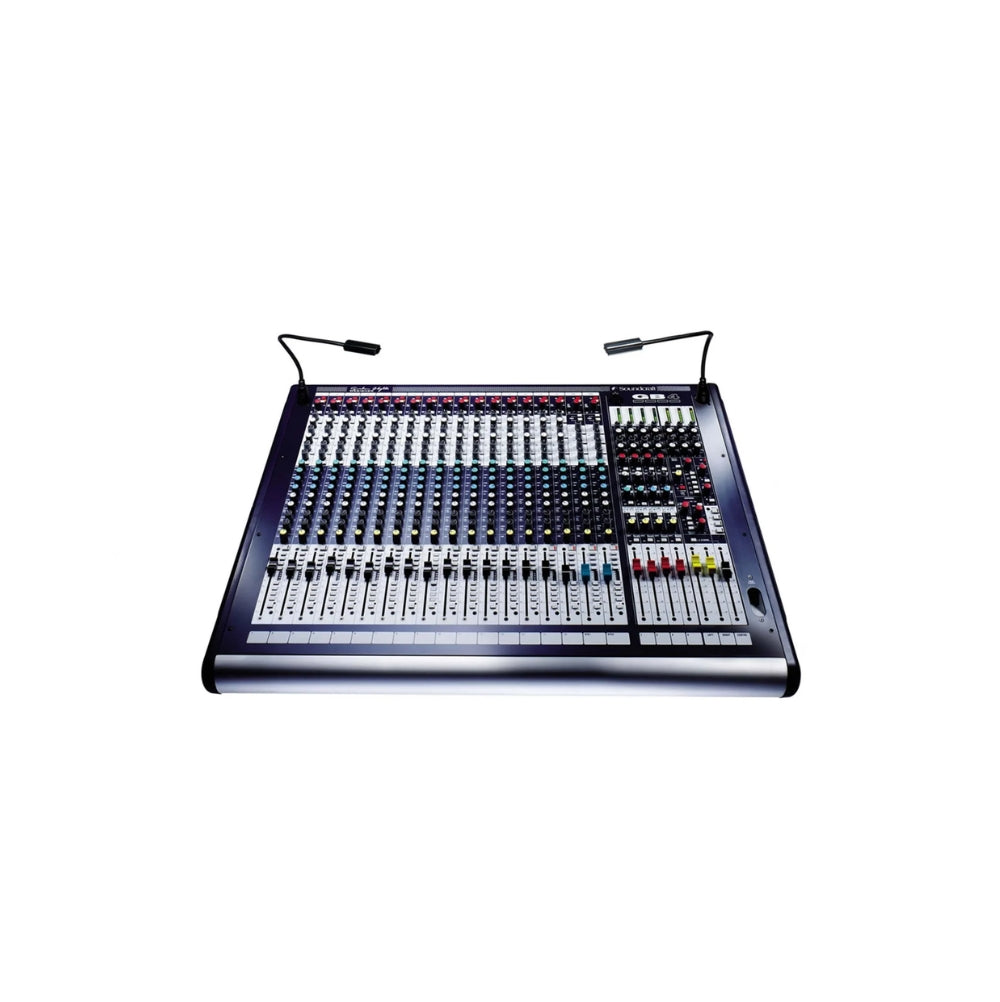

The Soundcraft GB4 24 is a professional-grade analog mixing console designed for live sound, installations, and touring applications. It is part of the GB series and features high-quality GB30 mic preamps and EQ designed by Soundcraft co-founder Graham Blyth. The console offers dual-mode operation, allowing it to function as both FOH and monitor mixer, making it highly versatile. Built on a rugged steel chassis with modular construction, it ensures reliability even in demanding environments while delivering clean, powerful “British sound” performance.

Enquire Now

Product details

More Information
  • 24 mono input channels + 4 stereo channels
  • GB30 mic preamps and 4-band GB30 EQ on all mono channels
  • Dual-mode operation (FOH / Monitor switching)
  • 8 AUX sends (flexible pre/post switching)
  • 4 subgroups + L, R, C main outputs (7 bus structure)
  • 7×4 output matrix for multiple zone feeds
  • Direct outputs on every channel
  • 4 mute groups for quick control
  • Built-in limiter on record outputs
  • Talkback system for communication
  • Rugged steel chassis with modular PCB design
  • Internal PSU with option for external backup PSU
Technical Specifications
  • Type: Analog mixing console
  • Channels: 28 (24 mono + 4 stereo)
  • Mic inputs: 24 × XLR
  • Line inputs: 24 × 1/4” + stereo inputs
  • EQ: 4-band GB30 EQ with dual sweepable mids
  • Aux sends: 8 (4 pre + 4 switchable)
  • Busses: 4 groups + L/R/C + matrix
  • Direct outputs: 24 × 1/4”
  • Inserts: Available on channels, groups & master
  • Phantom power: Yes (global)
  • Faders: 100 mm professional faders
  • Output matrix: 7 inputs to 4 outputs
  • Power supply: Internal SMPS with external backup option
  • Build: Heavy-duty steel chassis
  • Weight: approx. 26–27 kg
  • Application: Live sound, touring, installations
