SHURE SLXD14/85

SHURE SLXD14/85

Rock-solid Wireless Performance

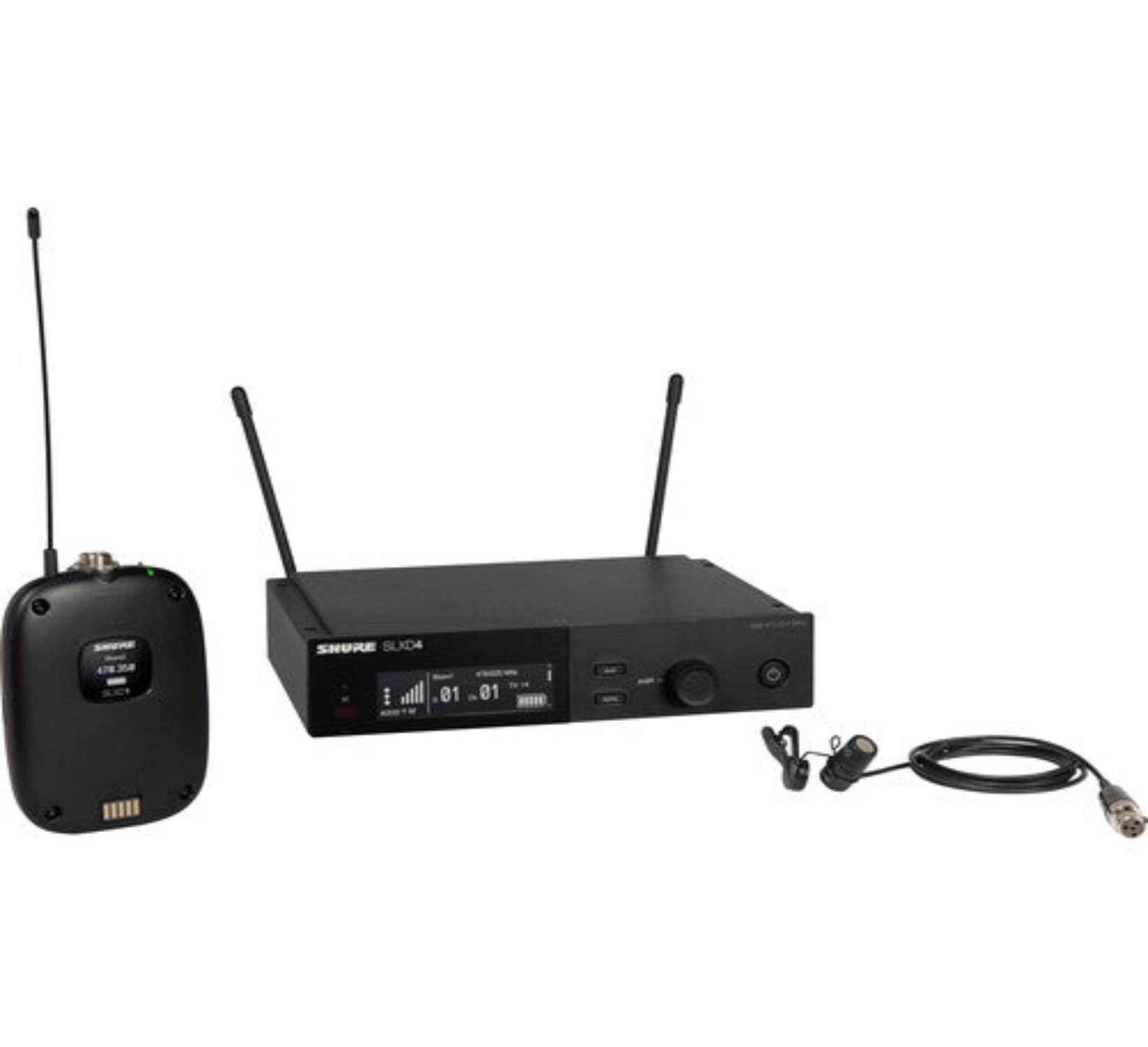

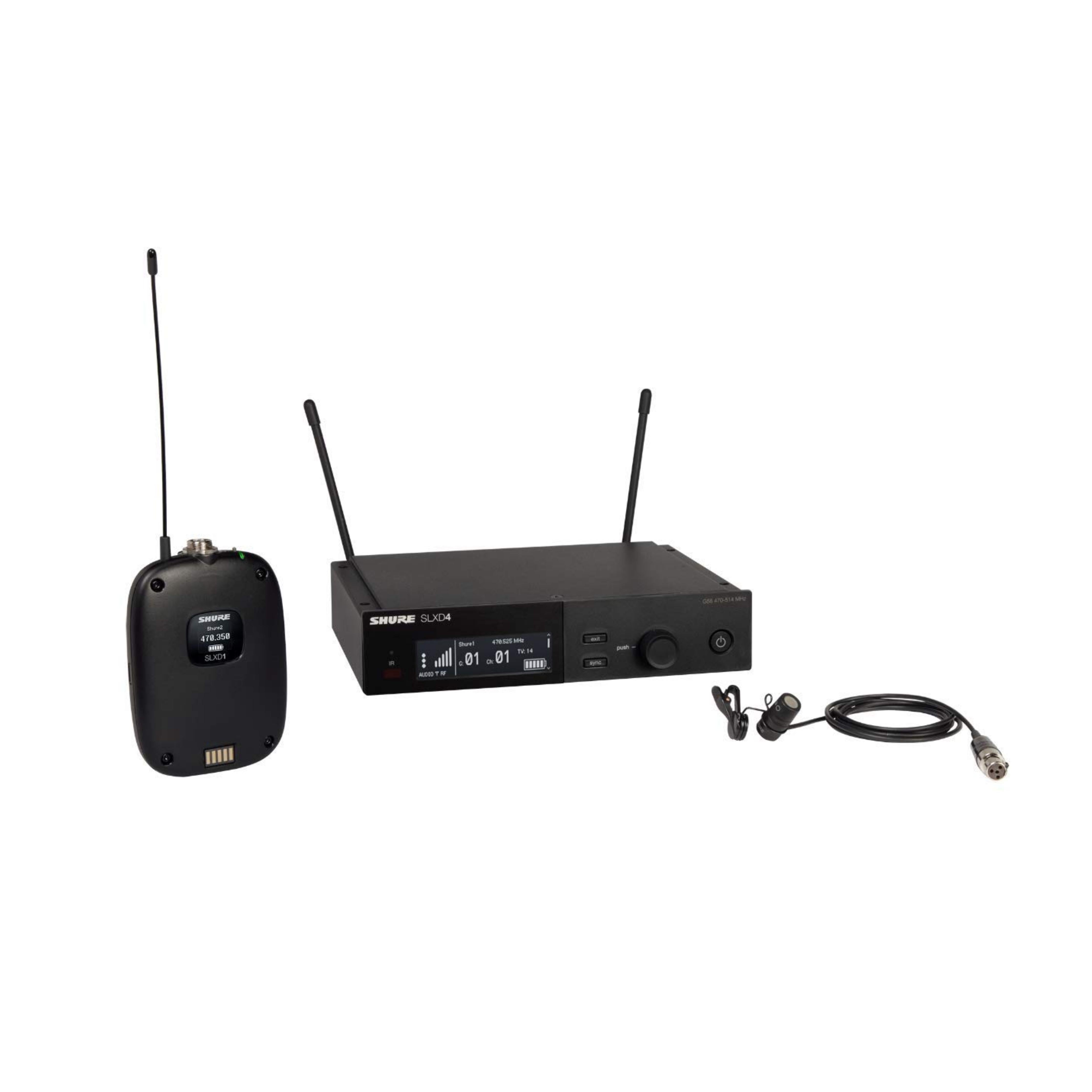

The SLXD14/85, from Shure, is a complete digital wireless system intended for speaking applications. This system ships to your door with the Shure WL185 Lavalier Microphone, SLXD1 Digital Bodypack Transmitter, and SLXD4 Digital Wireless Receiver. Shure’s cutting edge digital wireless technology delivers 24-bit audio resolution with an almost imperceptible 3.2ms of latency. Add in the working range of 100 meters (328 feet), and you’ve got a recipe for serious wireless potential. If you’re ready to take the plunge and give your system a much-needed upgrade, you can’t go wrong with a Shure SLX-D wireless setup.

More Information

Shure SLXD14/85 Wireless Lavalier Microphone System Features:
  • Complete digital wireless system for live performance
  • WL185 lavalier microphone delivers impressive sound
  • SLXD4 wireless receiver pairs easily with any transmitter
  • Lightweight SLXD1 wireless transmitter attaches directly to your belt
  • Transparent 24-bit digital audio provides high-quality signal resolution
  • Digital predictive switching diversity keeps your signal strong
  • Low-profile design is comfortable to wear for extended periods
  • Scan and IR sync provide easy pairing to a transmitter
  • Tour tough construction stands up to punishment
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band

Technical Specification

Tech Specs

  • System: Simultaneous Channels:32
  • System: Analog/Digital:Digital
  • System: Frequency Range:470-514 MHz
  • System: Operating Range:328 ft. Line-of-sight
  • System: Frequency Response:20Hz-20kHz
  • System: Microphone Included:Yes
  • System: Channel Selection:Auto
  • Microphone: Type:Electret Condenser
  • Microphone: Polar Pattern:Cardioid
  • Microphone: Max SPL:130dB SPL
  • Microphone: Connector:TA4F
  • Microphone: Color:Black
  • Microphone: Frequency Response:50Hz-17kHz
  • Microphone: Cable Length:4 ft.
  • Microphone: Self Noise:28dB
  • Transmitter: Form Factor:Bodypack
  • Transmitter: Dynamic Range:120dB (A weighted)
  • Transmitter: Battery Type:2 x AA or SB903 Rechargeable Battery
  • Transmitter: Battery Life:8 hours
  • Transmitter: Connector:TA4M
  • Transmitter: Dimensions:3.8″ x 2.6″ x 1″
  • Transmitter: Weight:0.2 lbs.
  • Receiver: Antenna Type:Detachable
  • Receiver: Signal/Noise Ratio:120dB (A-weighted)

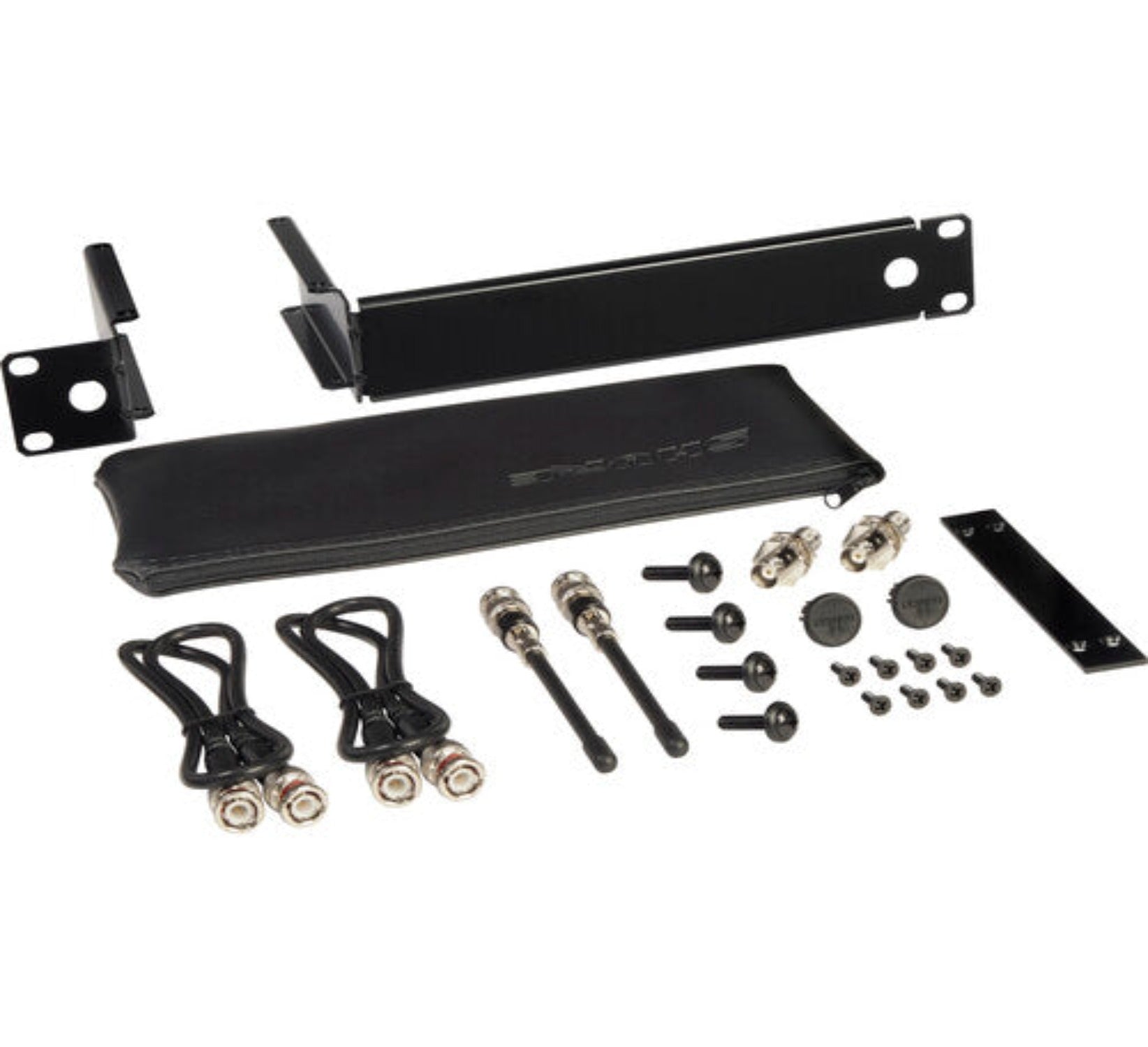

  • Receiver: Type:Table Top, Rackmount (if kit included)
  • Receiver: Rackmountable:Yes
  • Receiver: Rack Spaces:Half-rack

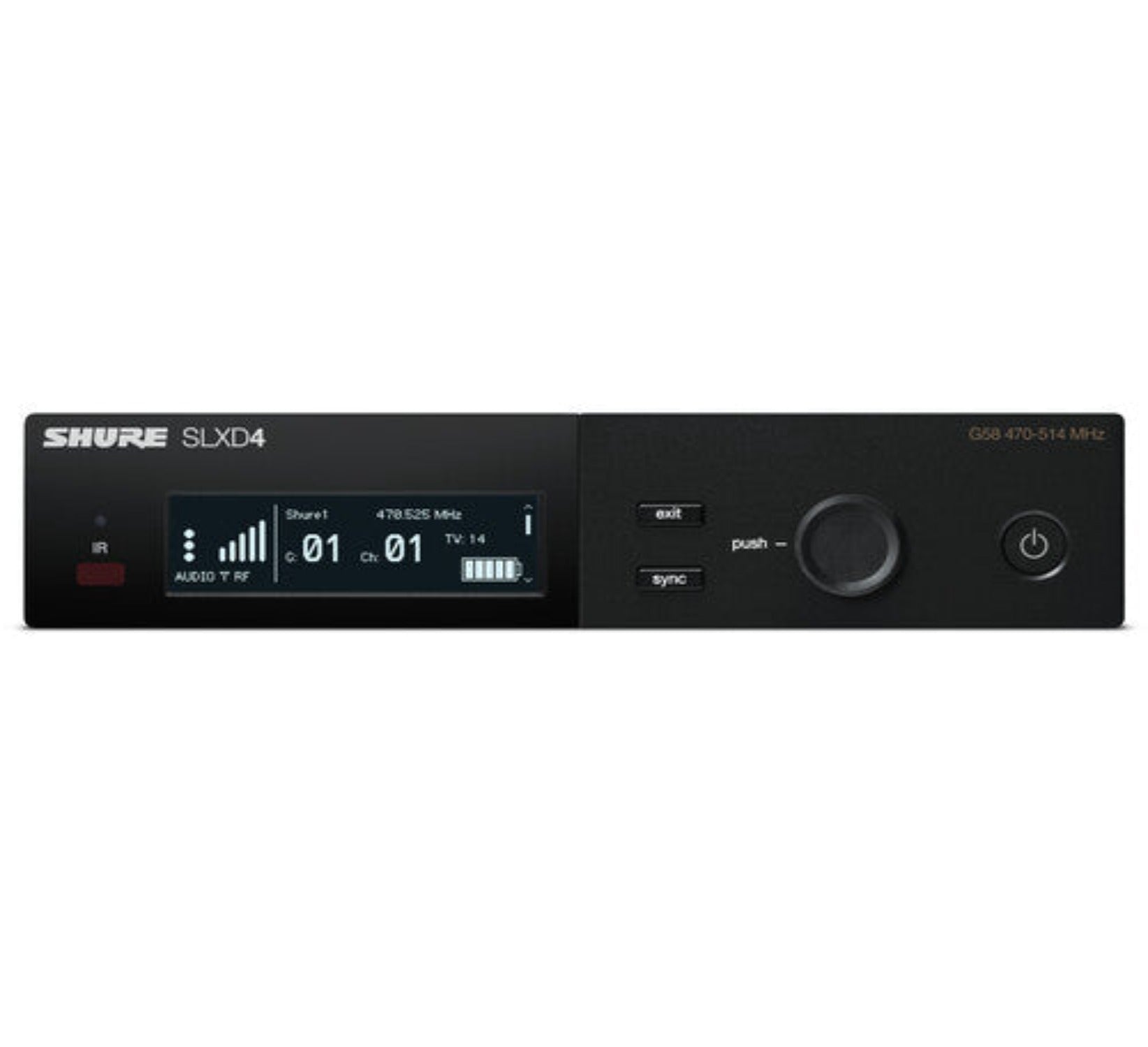

  • Receiver: Front Panel Display:Yes
  • Receiver: Displays:LCD

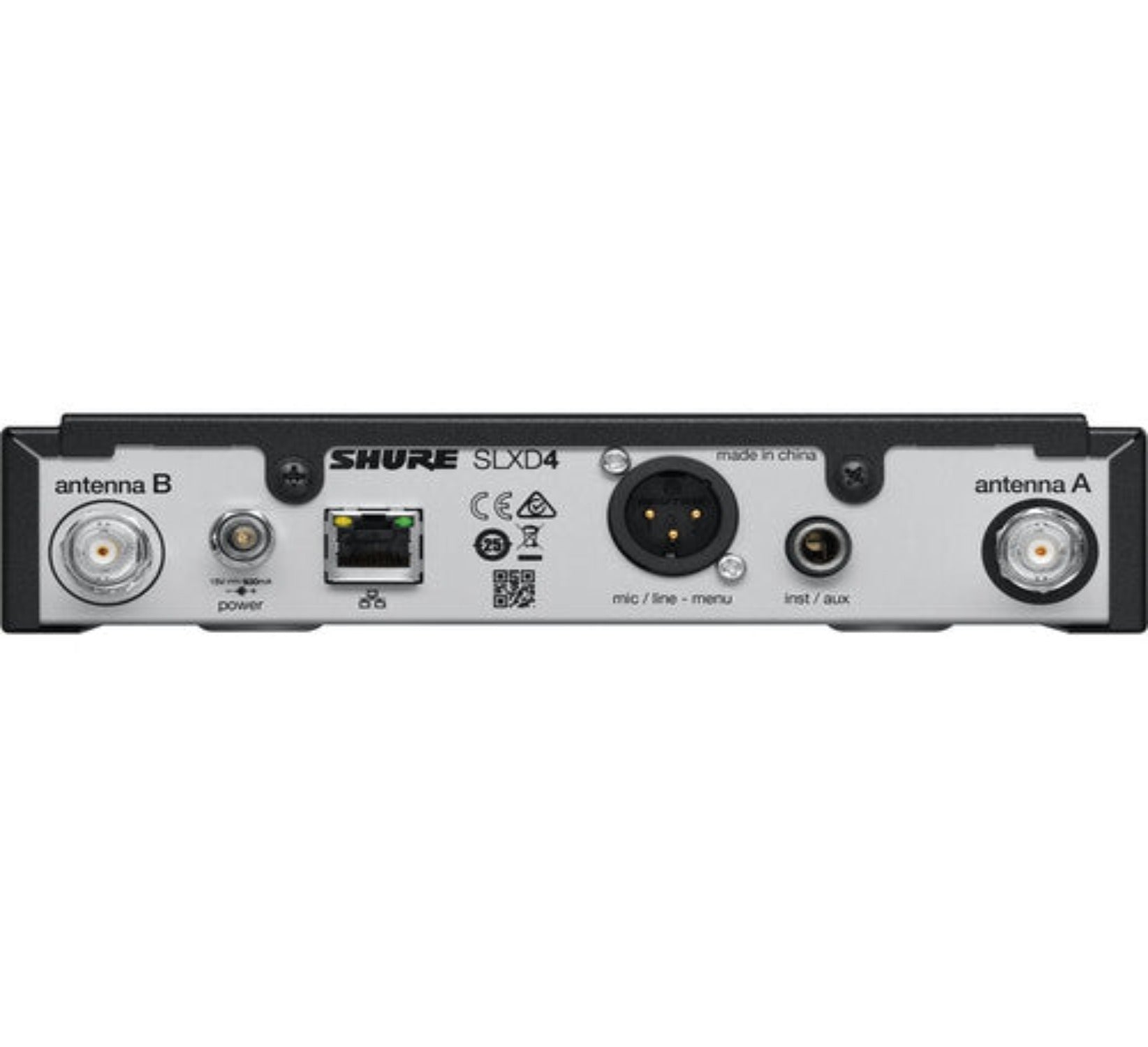

  • Receiver: Outputs:1 x XLR, 1 x 1/4″
  • Receiver: Data I/O:1 x Ethernet
  • Receiver: Dimensions:5.9″ x 7.7″ x 1.6″
  • Receiver: Weight:1.8 lbs.
