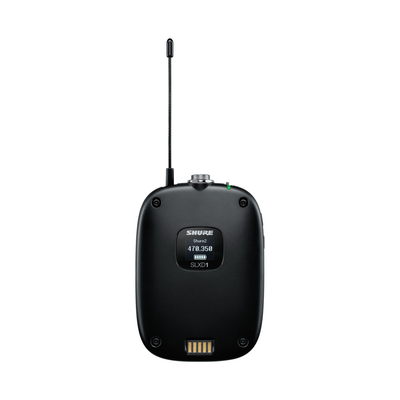

The Shure SLXD1 is a bodypack digital wireless microphone transmitter compatible with SLX-D receivers. It delivers crystal-clear, 24-bit digital audio quality and reliable RF performance—well suited for use in small- to medium-sized venues and houses of worship, or with A/V installations in conference, educational, or corporate facilities.

Enquire Now

Product details

More Information

User Friendly, Compact, and Lightweight

  • The SLXD1 features a TA4M input, allowing you to choose a lavalier or headset mic with a TA4F connector for hands-free presentations and performances, or a dedicated WA305 locking instrument cable for use with a guitar/bass (mic and cable available separately).
  • The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
  • An easy-to-read LCD shows important information.
  • 1/10mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
  • The discreet, ergonomic housing is constructed from tough, lightweight ABS plastic and features a fixed 1/4 wave antenna.

Convenient Power Management Options

  • The SLXD1 operates for up to 8 hours on two AA batteries or an SB903 rechargeable battery (available separately).
  • The SB903 lithium-ion rechargeable battery offers convenient power management with zero memory effect and precision metering in hours and minutes on the transmitter's LCD screen.
  • The SBC203 dual-battery recharging station (available separately) charges two SB903 batteries at once—it fits the external contacts on the transmitter so you don't have to remove the batteries to recharge.
Technical Specifications

System Specifications

  • Wireless Technology: Digital UHF
  • RF Frequency Band: G58: 470 to 514 MHz
  • Max Operating Range: 328' / 100 m
  • Max Transmitters per Band: 32
  • Latency: 3.2 ms
  • Encryption: No
  • Built-In Recorder: No
  • Timecode Support: No
  • Mobile App Compatible: No
  • Included Transmitters: 1x Bodypack
  • Microphone Type: No Microphone Included
  • Included Charging Case: No
    Included Transmitters: 1x Bodypack
    RF Output Power: 10 / 1 mW (Selectable)
    Antenna: Fixed 1/4 Wave External
    Input Level: Microphone / Instrument
    Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
    Bias/Plug-In & Phantom Power: Has Bias/Plug-In Power: Voltage is Unspecified; No Phantom Support
    USB I/O: No
    Muting: No
    Gain Range: 0 to +21 dB
    Auto-Level/Gain: No
    Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
    Sync Method: IR
    Display: OLED
