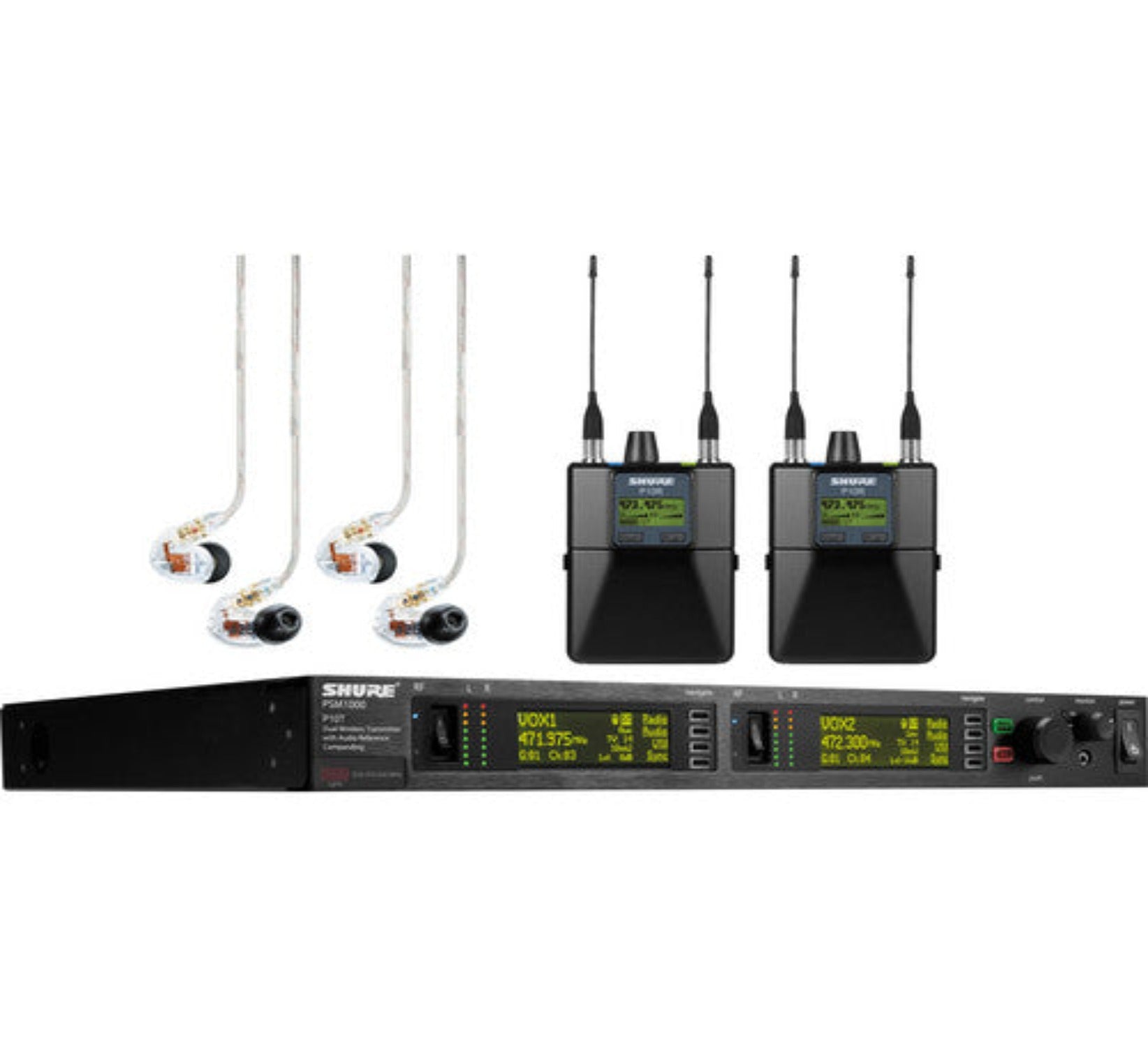

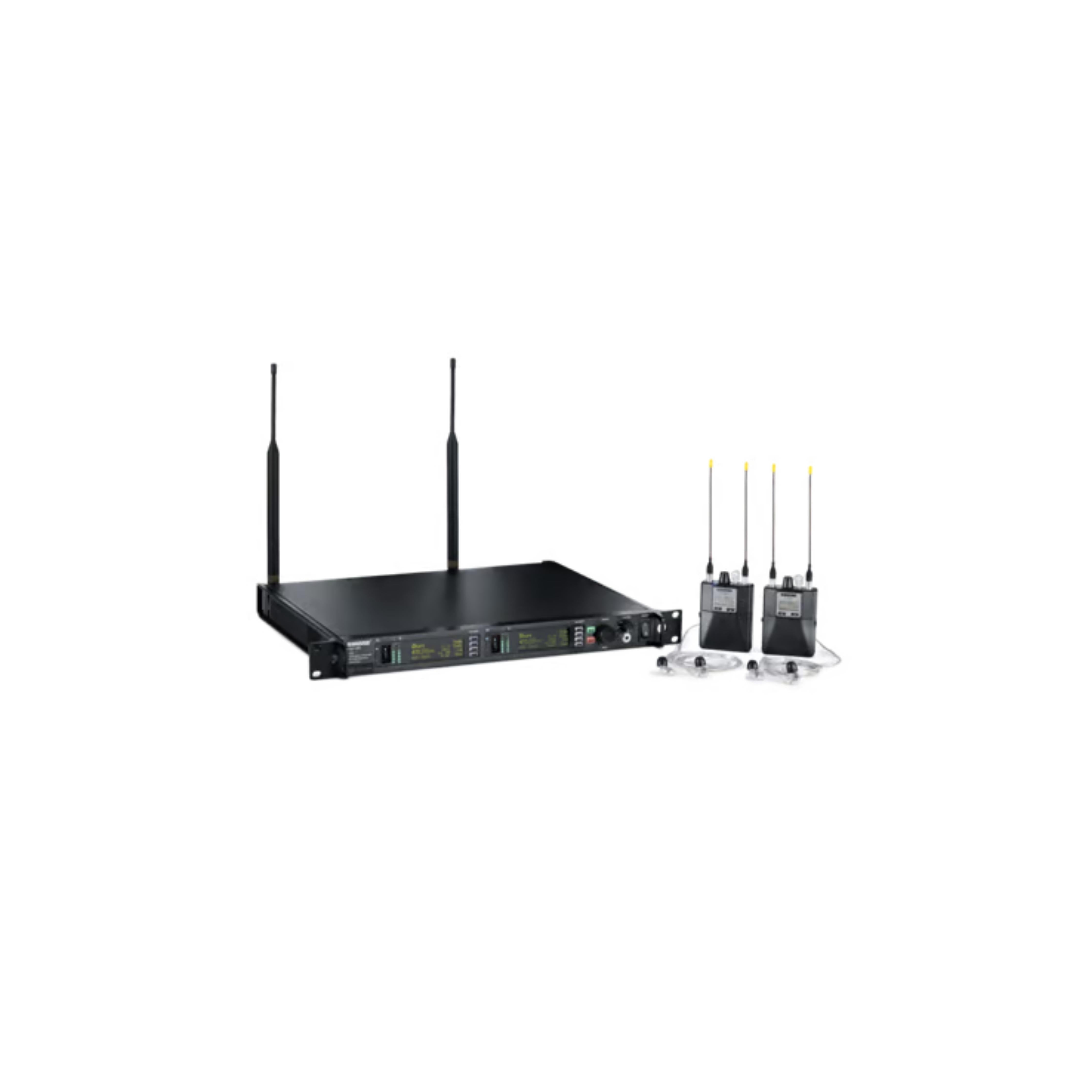

The Shure PSM 1000 Personal Monitor Dual System is a professional wireless IEM monitoring system intended for touring, live venue installations, houses-of-worship, broadcast applications and anywhere high-grade wireless monitoring is necessary. The PSM 1000 features the P10T full-rack dual wireless transmitter and a pair of P10R diversity bodypack receivers.

The transmitters touring-grade all metal housing is sure to handle the rigors of life on the road. The P10T also features Ethernet networking and control via the optional Wireless Workbench software, 72MHz tuning bandwidth, precision front-end RF filtering for enhanced signal stability and much more. The P10R bodypacks feature diversity reception for stable, reliable signal. The PSM 1000 is completely backwards compatible with all PSM 900 series monitoring components.

Enquire Now

Product details

More Information

Key Features

  • Frequency / G10 / 470-542MHz
  • SE425 Sound Isolating Erbuds (Clear) x2
  • P10T Dual-Channel Transmitter
  • P10R Bodypack Receivers x2
  • Networkable via Ethernet
  • Remote Channel Coordination
  • Diversity Bodypack Receiver
  • Pristine RF Signal Quality
  • 72MHz Tuning Bandwidth
Technical Specifications
Shure PSM1000 Specifications
  • Environment: Large scale professional performance
  • RF Output Power: Selectable: 10, 50, 100 mW (regionally dependant)
  • Operating Distance: Up to 90
  • Frequency Response: 35 Hz - 15 kHz
  • Harmonic distortion: <0.5% typical
  • Signal-to-noise-ratio: 90 dB (typical)
  • Compatible Systems per band (up to): 40
  • Transmitter Inputs: 2x XLR/6,3 mm combo, mic/line level
  • Transmitter Outputs: 2x XLR split outputs
  • Wired Bodypack Option: No
  • Personal Mix Control: On transmitter
  • Remoteable Transmitter: Yes
  • Battery Life: 4 - 6 hours

PSM 1000 System

  • RF Carrier Range: 470 – 952 MHz (regionally dependent)
  • Tuning Bandwidth: Up to 80 MHz (regionally dependent)
  • Companding: Patented Shure Audio Reference Companding
  • Spurious Rejection (ref. 12 dB SINAD): >80 dB (typical)
  • Frequency Stability: ±2.5 ppm
  • MPX Pilot Tone: 19 kHz (±0.3 kHz)
  • Modulation: FM, MPX Stereo (±34 kHz deviation, nominal)
  • Operating Temperature: -18°C – +57°C

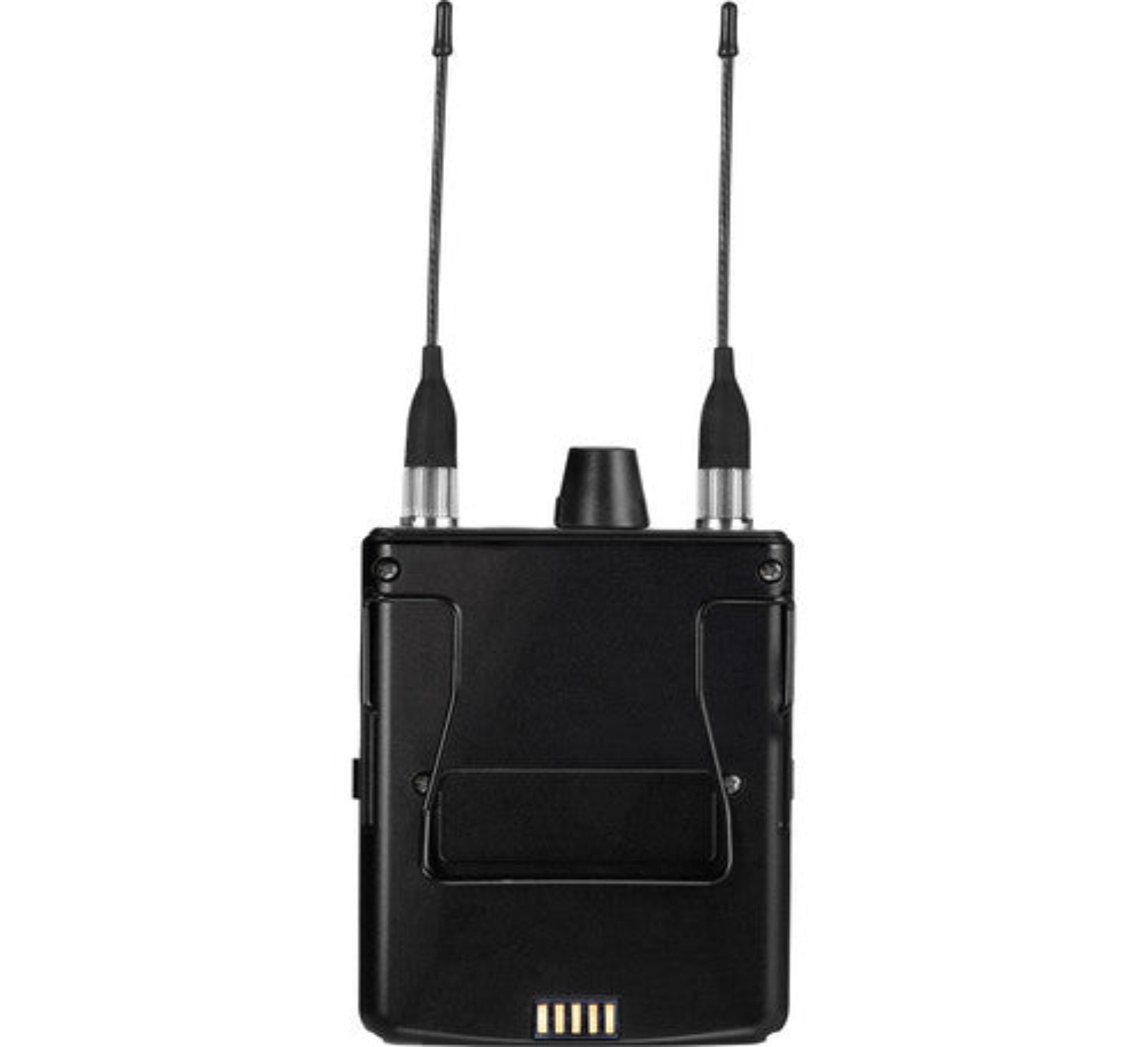

P10R Diversity Bodypack Receiver

  • Front-End RF Filtering: –3 dB point 30.5 MHz from center frequency
  • Active RF Gain Control: 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
  • RF Sensitivity (20 dB SINAD): 2.2 μV
  • Squelch Threshold (±3 dB SINAD): 22 dB SINAD
  • Adjacent Channel Rejection: >70 dB
  • Intermodulation Attenuation: >50 dB
  • Blocking: >80 dB
  • Image Rejection: >90 dB
  • Audio Output Power (1kHz @ <1% distortion, peak power, @32Ω): 100 mW
  • Minimum Load Impedance: 9.5 Ω
  • High Boost Selectable: +2 dB, +4 dB @ 10 kHz
  • Dimensions: 85 mm x 66 mm x 23 mm

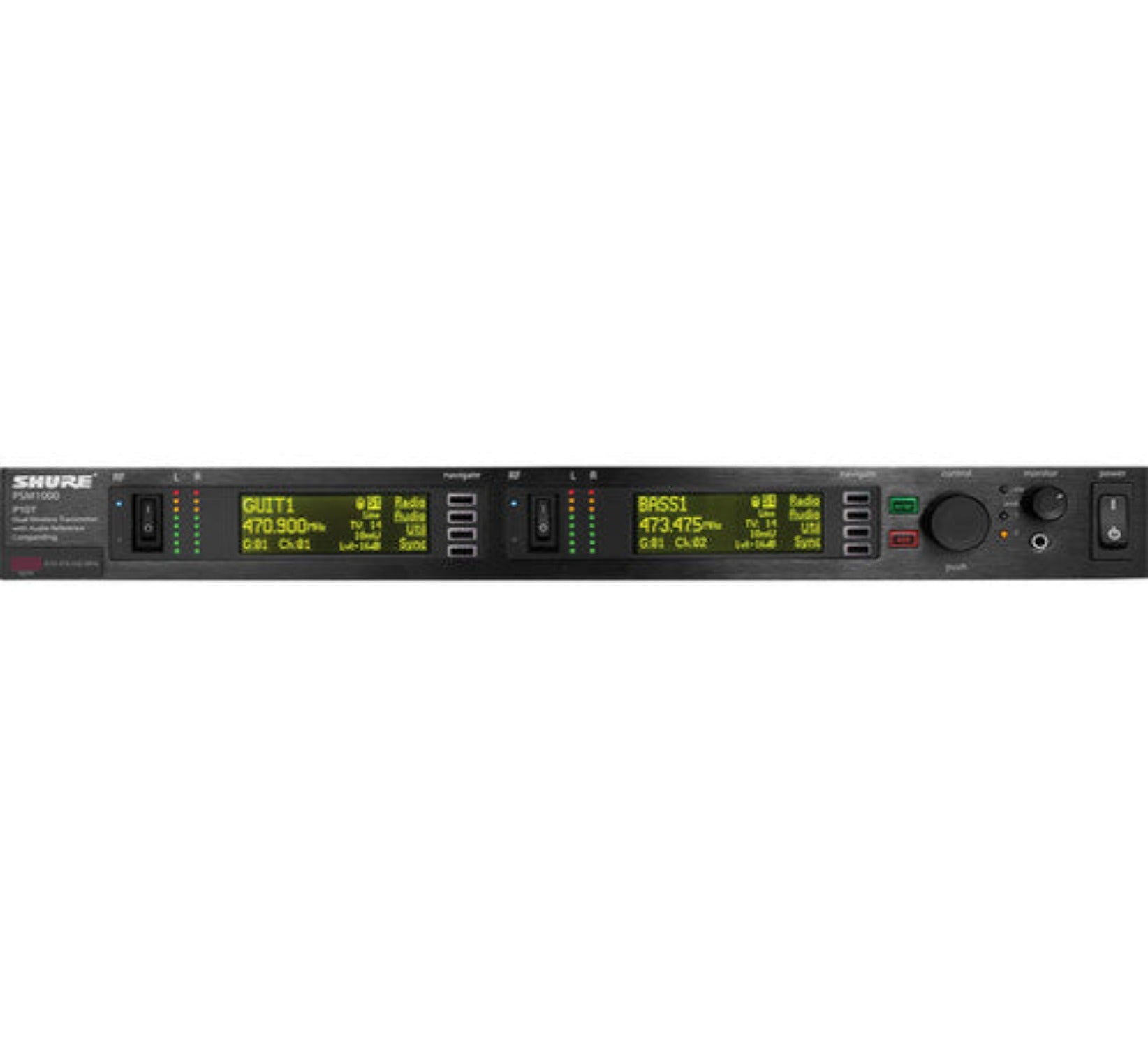

P10T Transmitter

  • RF Output Impedance: 50 Ω (typical)
  • Net Weight: 4700 g
  • Dimensions: 483 mm x 363 mm x 44 mm
  • Power Requirement (RF on, 100 mW power mode, no audio): Max. 0.5 A typical; Power pass through: Max. 5A, typical
