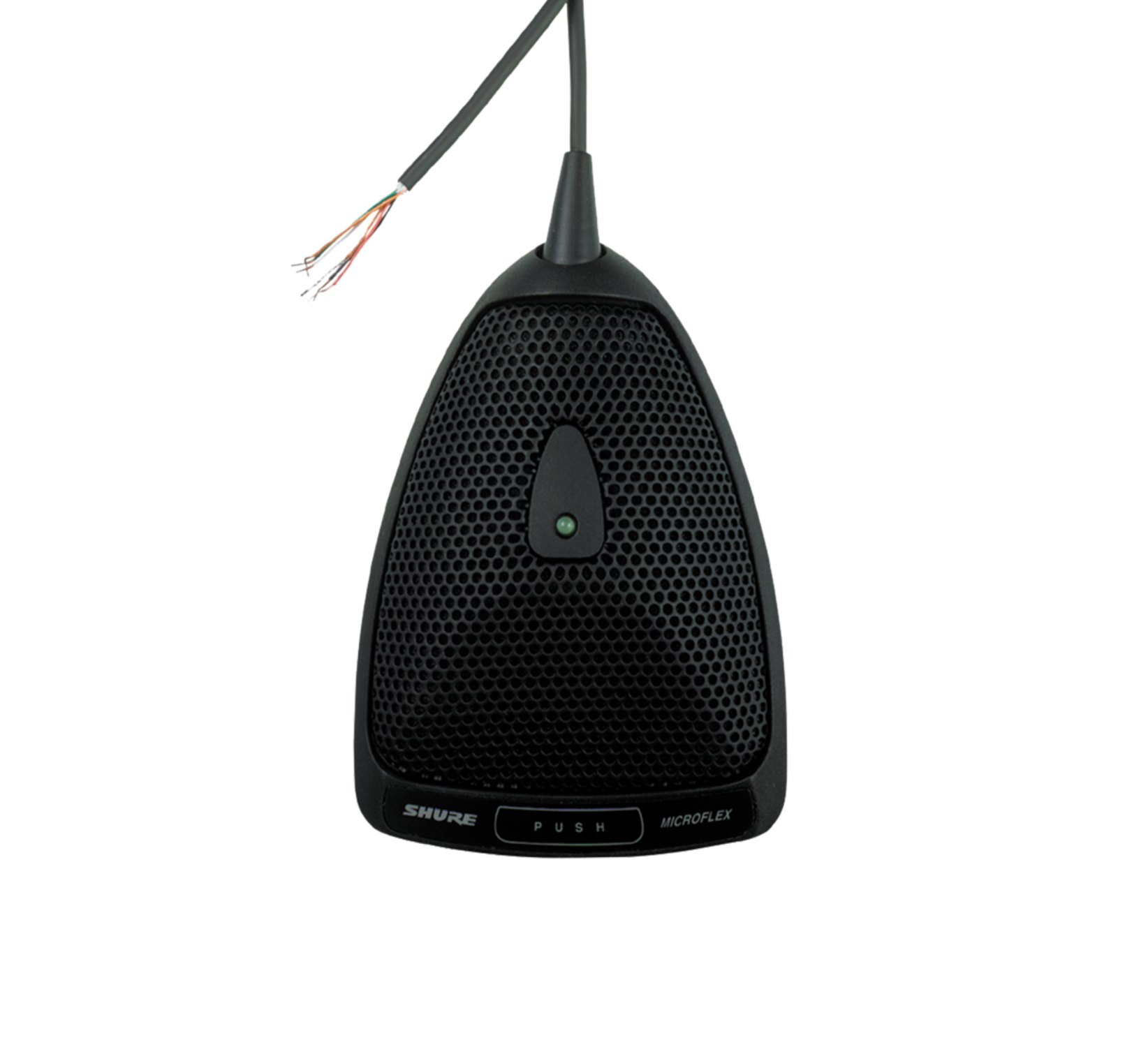

SHURE MX392/C

SHURE MX392/C

Shure MX392/C is a cardioid boundary microphone designed to capture high-quality speech and voice for sound-reinforcement and teleconferencing installations in governmental, institutional, religious, and business settings.

The MX392/C features a TTL Logic LED input and TTL Logic switch output, and a 12′ unterminated cable that exits from the back of the unit.

The MX392/C can be permanently installed on conference tables, desks, or lecterns. Its sleek, low-profile design is ideal for conference rooms and other sites where minimal mic visibility is of high priority and aesthetics are important.

Enquire Now

Product details

More Information

Key Features

  • Sleek, low-profile design for surface mounting
  • Cardioid polar pattern and flat frequency response across the vocal range for natural sound
  • TTL Logic LED input and TTL Logic switch output
  • Programmable mute button with Push-to-Talk, Push-to-Mute, or Push-On/Push-Off modes and bicolor LED indicator
  • 12′ attached unterminated cable with back cable exit
  • Interchangeable capsule design
  • RF filtering
  • Paint mask for your custom-color installations
Technical Specifications
  • Type - Back Electret Condenser
  • Frequency Response - 80~18,000 Hz
  • Polar Pattern - Supercardioid
  • Output Connector - XLR(M) type (power module): GM-5225L
  • Sensitivity (at 1,000Hz) - (-60dB) (1mV)
  • Impedance - 220Ω
  • Max. SPL for 1% T.H.D - 125 dB
