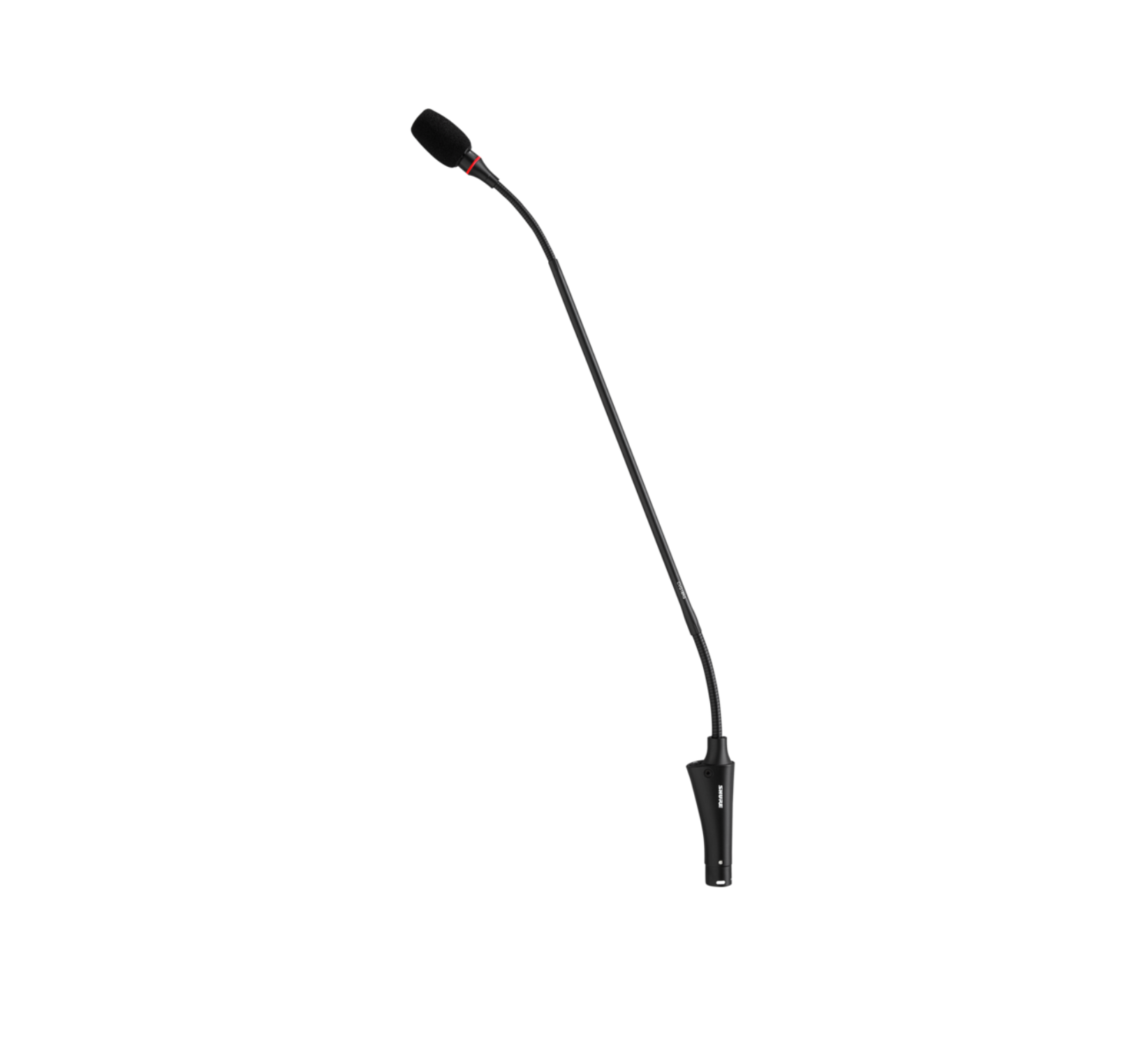

SHURE CVG18RS-B/C

SHURE CVG18RS-B/C

Centraverse™ Gooseneck Condenser Microphones are ideal for use in installed sound reinforcement applications, including corporate facilities, houses of worship, and government institutions. Dual-section gooseneck provides full articulation and easy placement options.

Each microphone includes a windscreen and mounting flange.Featuring CommShield® Technology, which guards against unwanted RF interference from portable wireless devices, Centraverse microphones deliver in best-in-class performance and reliability.

Enquire Now

Product details

More Information

Features:

  • Cardioid polar pattern with tailored response for speech
  • Dual-section gooseneck enables ease of positioning and placement options
  • 18" (45.7 cm) gooseneck lengths
  • Black color
  • Available in three configurations with Light-ring, Mute Switch, Inline Preamp
  • Commshield interference immunity
  • Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.) -gh resistance to intense nearby radio signals
  • Superior Shure design and rugged, dependable construction
Technical Specifications

Specifications:

  • Cartridge Type: Electret Condenser
  • Frequency Response: 70–16000 Hz
  • Polar Pattern: Cardioid
  • Output Impedance: 180 Ω
  • Sensitivity (at 1 kHz , open circuit voltage): –33 dBV/Pa[1] (22 mV)
  • Maximum SPL (1 kHz at 1% THD): 120 dB SPL
  • Signal to Noise Ratio (referenced at 94 dB SPL): 67 dB
  • Dynamic Range: 93 dB
  • Self Noise (equivalent SPL, A-weighted, typical): 27 dB SPL
  • Common Mode Rejection (10 Hz to 100 kHz): >45 dB
  • Preamplifier Output Clipping Level (1% THD): −7 dBV
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2
  • with respect to pin 3
  • Power Requirements: 11–52 V DC[4], 2.0 mA
  • Environmental Requirements Operating Temperature Range: -18° C to 57° C (0° F to 135° F)
  • Relative Humidity: 0 to 95%
